IFM IE5456 IEK3006-FRKG/IO/AS is an inductive sensor with IO-Link designed for reliable non-contact detection and intelligent sensor communication in industrial automation applications. With configurable PNP/NPN output, configurable normally open/normally closed switching, M8 × 1 threaded construction, 10–30 V DC operation and a 600 Hz switching frequency, it provides flexible integration into modern automation systems. Its IO-Link interface enables convenient parameterisation and diagnostic communication
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5456 IEK3006-FRKG/IO/AS inductive sensor with IO-Link is engineered for reliable non-contact detection of metallic objects in industrial automation, machinery, assembly equipment and factory production systems. Its compact M8 × 1 threaded design and intelligent IO-Link communication make it suitable for applications requiring dependable proximity detection together with flexible sensor parameterisation.
The IE5456 uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated object detection, position monitoring, machine sequencing and automation feedback where reliable switching performance is required.
The sensor supports a configurable PNP/NPN electrical design and configurable normally open/normally closed output, allowing the switching behaviour to be adapted to compatible automation control requirements. Its IO-Link communication interface provides convenient parameterisation, process-value access and diagnostic capabilities for modern industrial automation systems.
IFM IE5456 inductive sensor with IO-Link
Model: IEK3006-FRKG/IO/AS
M8 × 1 threaded sensor design
50 mm overall length
Configurable PNP/NPN electrical design
Configurable normally open/normally closed output
IO-Link communication interface
10–30 V DC operating voltage
600 Hz switching frequency
100 mA permanent switching current
2.5 V maximum voltage drop
Short-circuit protection
Overload protection
Reverse-polarity protection
Gold-plated connector contacts
Stainless steel housing
4 × yellow LED switching-status indication
IP65, IP66, IP67, IP68 and IP69K protection when correctly connected with the specified IFM socket
Ambient temperature range of -40 °C to +75 °C

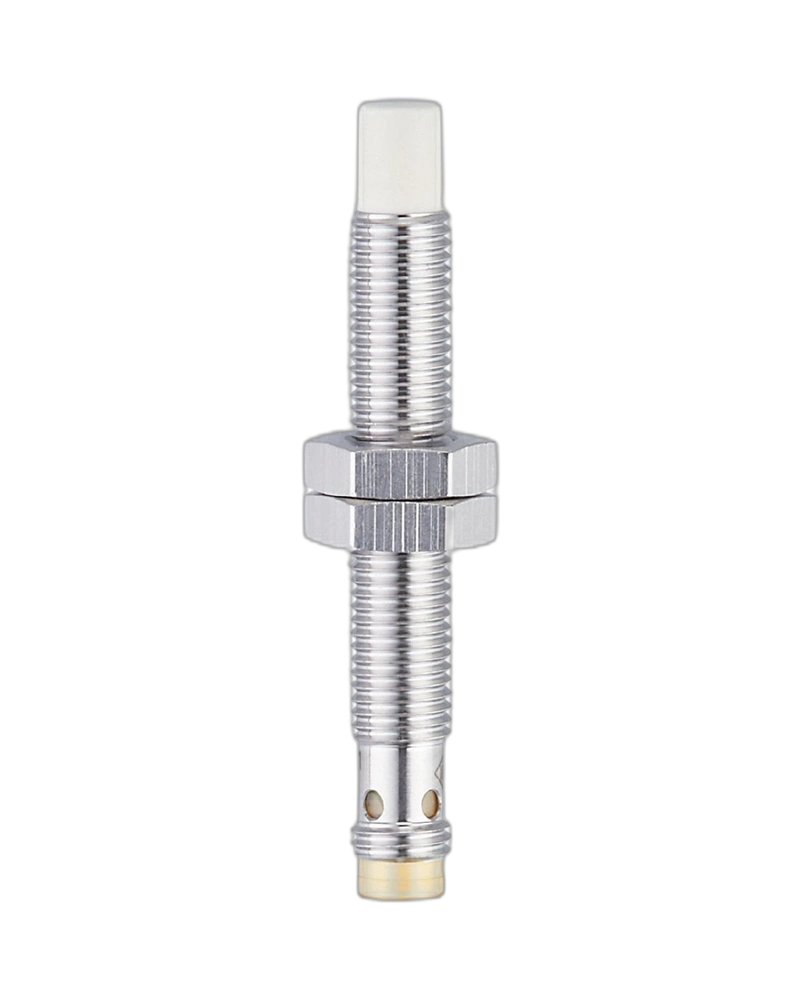

The IE5456 features a threaded M8 × 1 housing with a 50 mm length, providing a compact installation solution for machinery and automation equipment. The housing is manufactured from stainless steel, while the sensing face uses white LCP material. The sensor also features gold-plated contacts for the M8 connection.
The sensor's configurable PNP/NPN output and normally open/normally closed switching function provide flexibility when connecting the sensor to compatible PLCs, controllers and automation equipment. The IO-Link interface allows convenient configuration and communication between the sensor and the control system.
The IE5456 is designed with an IO-Link communication interface, allowing sensor parameters to be configured through the connected IO-Link system.
IO-Link can provide access to sensor information, parameterisation and diagnostic functions, helping simplify commissioning and maintenance in connected industrial automation environments. IFM specifically describes the IE5456 as providing convenient communication and parameterisation through IO-Link.
The IE5456 provides an IO-Link configurable switch-point range of 1.13–5.61 mm, with a configurable measuring range of 0.6–6 mm. The sensor provides correction factors of 1 for steel, 0.7 for stainless steel, 0.5 for brass and aluminium, and 0.4 for copper.
This detection capability makes the sensor suitable for monitoring the presence, position and movement of metallic machine components in automated production processes.
The IE5456 can be integrated into a wide range of Industrial Automation UAE applications, including:
Machine position detection
Metal component detection
Assembly-line automation
Conveyor monitoring
Automated counting
Machine sequencing
Position feedback
Production machinery
Material handling equipment
PLC-based automation systems
Smart factory and IO-Link installations
The IE5456 is designed for dependable operation in demanding industrial environments. Its high switching frequency of 600 Hz supports fast repetitive detection tasks, while short-circuit and overload protection help support reliable electrical operation.
The wide -40 °C to +75 °C ambient temperature range allows the sensor to be used across a broad range of industrial machinery and factory environments. Its high ingress-protection capability, when installed with the specified IFM socket, supports applications exposed to dust, moisture and demanding cleaning conditions.
Compact M8 × 1 threaded construction
Configurable PNP/NPN output
Configurable normally open/normally closed switching
IO-Link communication and parameterisation
600 Hz switching frequency
10–30 V DC operation
Stainless steel housing
Gold-plated connector contacts
Wide -40 °C to +75 °C ambient temperature range
Short-circuit and overload protection
Suitable for demanding industrial environments
The IFM IE5456 IEK3006-FRKG/IO/AS is a flexible inductive sensor designed for modern industrial automation. Its configurable electrical output, IO-Link communication, compact M8 × 1 construction, high switching frequency and robust stainless steel housing make it suitable for machine automation, production equipment, position detection and intelligent sensor networks. It is a practical choice for businesses looking for Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Suppliers UAE.
| Specification | Details |
|---|---|
| Product Code | IE5456 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEK3006-FRKG/IO/AS |
| Product Type | Inductive Sensor with IO-Link |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP/NPN, configurable |
| Output Function | Normally Open / Normally Closed, configurable |
| Communication Interface | IO-Link |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 15 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Current Rating | 100 mA |
| Switching Frequency | 600 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| IO-Link Switch Point | 1.13–5.61 mm, configurable |
| IO-Link Measuring Range | 0.6–6 mm |
| Hysteresis | 3–15% of Sr, configurable |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.5 |
| Correction Factor – Copper | 0.4 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Housing Material | Stainless steel, 1.4404 / SS2348 |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Connector Contacts | Gold-plated |
| Output Status Indication | 4 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K with correctly installed specified IFM socket |
| Ambient Temperature | -40 °C to +75 °C |
| Weight | Approx. 15.3 g |
| Mounting | Threaded |
| Included Accessories | 2 lock nuts |
| Typical Applications | Industrial automation, machine control, position detection, metal detection, assembly machinery and factory automation |
