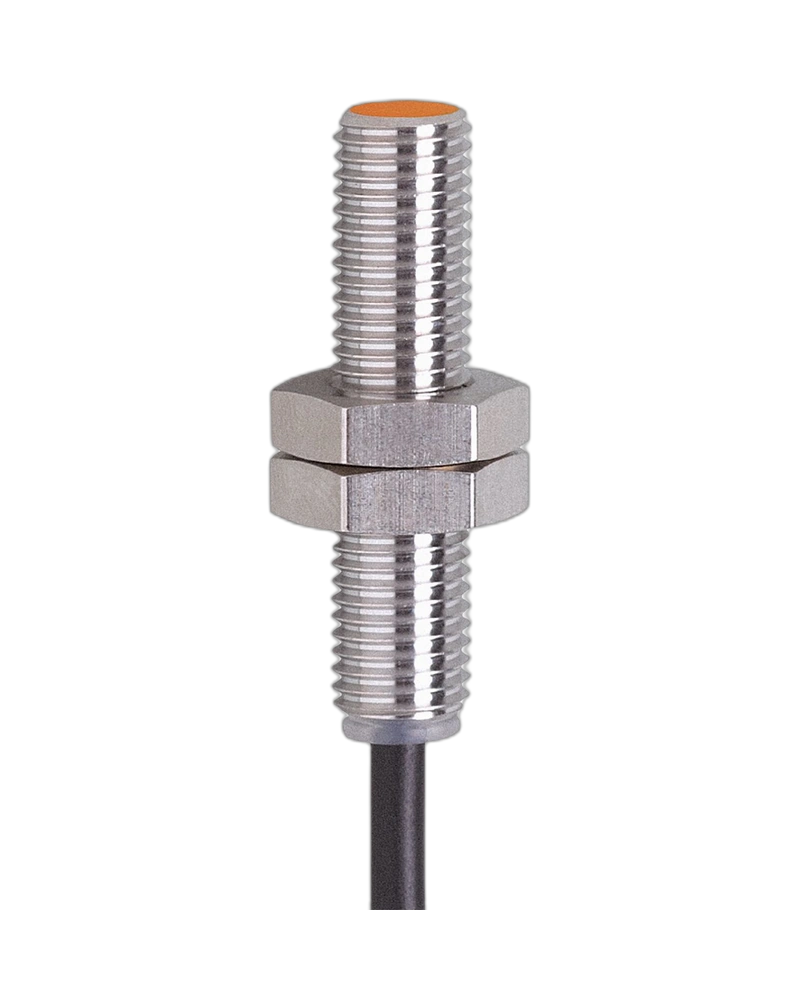

The IE5448 IEA3002BBPKG/2M/PUR inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. With a 2 mm sensing range, DC PNP normally-open output, 10–30 V DC operation, 1000 Hz switching frequency, IP67 protection and a 2 m PUR cable, it provides dependable sensing performance for compact industrial installations. Its flush-mountable M8 × 1 housing with a 50 mm length makes it suitable for machine structures and automation equipment where reliable proximity detection is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5448 IEA3002BBPKG/2M/PUR inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machine control and factory production applications. It provides reliable switching performance for applications where the presence, position or movement of metal components needs to be monitored without physical contact.
The sensor uses inductive proximity sensing technology to detect metallic targets. This non-contact operating principle makes the IE5448 suitable for repeated detection tasks in automated machinery, production equipment, assembly systems and material-handling applications.
The IE5448 provides a 2 mm sensing range and is designed for flush mounting. Its compact sensing construction makes it suitable for installations where a reliable M8 inductive sensor is required within a restricted machine space.
The sensor features a DC PNP electrical design with a normally-open output. It operates on a 10–30 V DC supply and supports a 1000 Hz switching frequency, making it suitable for fast and repetitive object-detection tasks in industrial machinery.
The IE5448 uses an M8 × 1 threaded housing with an overall length of 50 mm. Its flush-mountable construction allows practical integration into suitable machine structures, fixtures and automated equipment.
The sensor has a metal-coated threaded sleeve and an LCP sensing face, providing a robust construction for industrial use. The supplied 2 m PUR cable provides a practical connection length for machine and factory installations.
The IE5448 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions. It is specified for an ambient temperature range of -25 °C to +80 °C, allowing operation across a broad range of industrial environments.
For businesses seeking Industrial Automation UAE, Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and Automation Products Supplier UAE, the IE5448 provides a practical inductive sensing solution for machinery and factory automation.
IFM IE5448 inductive proximity sensor
Model: IEA3002BBPKG/2M/PUR
2 mm sensing range
Flush-mountable installation
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
1000 Hz switching frequency
M8 × 1 threaded housing
50 mm overall length
Metal-coated threaded sleeve
LCP sensing face
2 m PUR cable
3 × 0.14 mm² cable conductors
IP67 protection rating
-25 °C to +80 °C ambient temperature
1 × yellow LED switching-status indication
Suitable for compact industrial installations
Suitable for machine automation and factory automation
The IE5448 operates using an inductive sensing principle, detecting metallic objects without direct physical contact. When a suitable metallic target enters the sensing zone, the sensor switches its normally-open output.
Its DC PNP electrical design allows integration with compatible PLCs, industrial controllers and automation systems.
The M8 × 1 threaded housing and flush-mountable construction make the sensor suitable for machine structures and automation equipment where space and mounting position need to be carefully considered.
The 2 m PUR cable provides a practical connection arrangement for industrial installations and helps simplify sensor integration into machinery.
The IE5448 provides a 2 mm sensing range and supports a 1000 Hz switching frequency.
The sensing range is suitable for detecting metallic machine components, workpieces and moving objects at a defined proximity distance.
Its fast switching capability makes the sensor suitable for repetitive detection tasks in automated production equipment and machine-control applications.
The IE5448 uses a DC PNP normally-open output, making it suitable for compatible industrial control systems.
When a metallic target enters the detection area, the sensor changes its switching state and provides a detection signal to the connected controller.
This makes the sensor suitable for:
Machine position detection
Metal component detection
Object presence monitoring
Conveyor monitoring
Automated counting
Production-line control
Assembly machinery
Machine status feedback
The IE5448 features an M8 × 1 threaded housing with a 50 mm overall length and is designed for flush mounting.
This construction makes it suitable for machine structures, fixtures and automation equipment requiring a compact threaded inductive sensor.
The metal-coated threaded sleeve and LCP sensing face provide a robust construction for industrial applications.
For Industrial automation companies UAE, the compact M8 design can provide flexibility when integrating proximity sensing into machinery and factory automation equipment.
The IE5448 can be incorporated into Industrial automation solutions in UAE across manufacturing, engineering, machine building, packaging, material handling and factory production environments.
Machine Position Detection
The sensor can detect the position of metallic moving parts, machine components, slides and fixtures.
Metal Component Detection
It can detect the presence or absence of metallic workpieces and components during manufacturing and assembly processes.
Conveyor Automation
The IE5448 can monitor metallic objects moving along conveyor systems and provide switching feedback to compatible control equipment.
Automated Counting
The sensor can detect individual metallic objects passing a sensing point for automated counting and production monitoring.
Assembly Machinery
The IE5448 can confirm the presence of metallic components at defined stages of automated assembly processes.
Material Handling Equipment
The sensor can provide proximity feedback in automated material-handling and transfer systems.
Production Machinery
It can support machine-control functions requiring reliable non-contact detection of metallic components.
The IE5448 can operate as part of larger Industrial automation systems in UAE, providing proximity feedback to compatible PLCs and industrial controllers.
It can be incorporated alongside other Industrial Automation Components UAE, including PLCs, control panels, actuators, switches, drives and industrial sensors.
For Industrial Automation Suppliers UAE, machine builders and system integrators, the IE5448 provides a dependable M8 inductive sensing component for factory automation applications.
The IE5448 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
The specified ambient temperature range of -25 °C to +80 °C allows the sensor to be used across a broad range of industrial machinery and factory environments.
The robust metal construction and industrial-grade cable connection make the IE5448 suitable for reliable operation when installed according to the manufacturer's requirements.
The IE5448 is supplied with a 2 m PUR cable with 3 × 0.14 mm² conductors.
The PUR cable provides a practical connection solution for industrial machine installations and factory automation equipment.
A yellow LED switching-status indicator provides visual feedback during installation, commissioning and maintenance, helping technicians identify the sensor's operating state.
2 mm sensing range
Reliable non-contact metal detection
DC PNP electrical design
Normally-open output
10–30 V DC operation
1000 Hz switching frequency
Flush-mountable M8 × 1 construction
50 mm overall length
Metal-coated threaded sleeve
LCP sensing face
2 m PUR connection cable
IP67 protection
-25 °C to +80 °C operating temperature
Yellow switching-status LED
Suitable for machine automation
Suitable for factory automation
Suitable for repetitive object detection
The IE5448 IEA3002BBPKG/2M/PUR is a compact and reliable IFM inductive proximity sensor designed for non-contact metal detection in industrial automation. Its 2 mm sensing range, DC PNP normally-open output, 1000 Hz switching frequency, M8 × 1 flush-mountable housing, 2 m PUR cable and IP67 protection make it suitable for machinery, conveyors, assembly systems, production equipment and factory automation applications.
For businesses searching for Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Equipment UAE and Factory Automation Components, the IE5448 provides a practical solution for reliable non-contact metal detection.
| Feature | Specification |
|---|---|
| Product Code | IE5448 |
| Manufacturer | IFM |
| Model / Part Number | IEA3002BBPKG/2M/PUR |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Sensing Range | 2 mm |
| Mounting | Flush mountable |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Housing / Threaded Sleeve | Metal coated |
| Sensing Face Material | LCP |
| Switching Frequency | 1000 Hz |
| Connection | 2 m PUR cable |
| Cable Conductors | 3 × 0.14 mm² |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| Weight | Approx. 50.7 g |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems, assembly machinery and factory automation |
