The IE5432 IEA2001-FRKG/0,38M/PH inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. With a 1 mm sensing range, selectable PNP/NPN electrical design, programmable normally-open/normally-closed output, 5–36 V DC operation and a 2000 Hz switching frequency, it provides flexible and dependable proximity detection. Its compact M8 × 1 threaded housing, flush-mountable design, 0.38 m PUR cable and IP67 protection make it suitable for space-restricted industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5432 IEA2001-FRKG/0,38M/PH inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machine control and factory production applications. It is designed for installations where space is restricted while reliable metal detection, flexible output configuration and high switching performance are required.
The sensor operates using inductive proximity sensing technology, allowing metallic objects to be detected without physical contact. This makes the IE5432 suitable for repeated detection of machine components, workpieces, moving parts and metallic objects in automated processes.
The IE5432 provides a 1 mm switching distance, with a real sensing range of 1 ± 10% mm and a working distance of 0–0.81 mm. This compact sensing distance makes the sensor suitable for applications requiring accurate detection at close proximity.
The sensor features a flexible PNP/NPN electrical design with a selectable normally-open/normally-closed output function. This allows the sensor to be adapted to compatible control architectures and industrial automation systems.
The IE5432 operates on a 5–36 V DC supply and supports a high 2000 Hz switching frequency, making it suitable for fast and repetitive detection tasks in industrial machinery and automated production equipment.

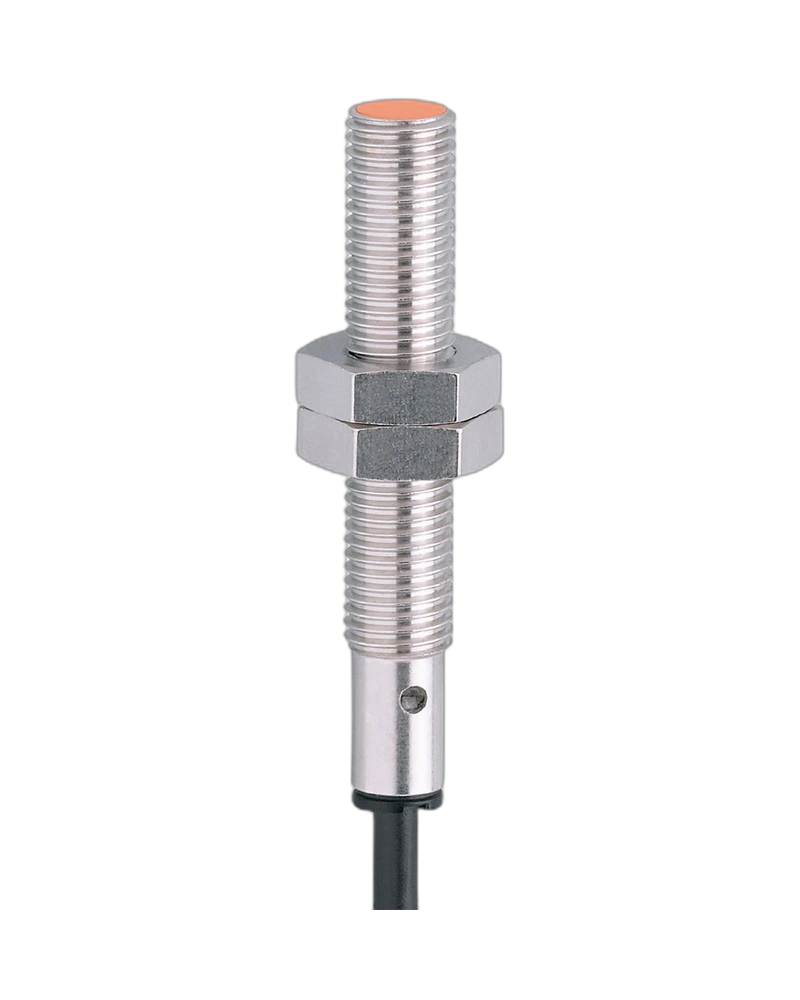

The sensor uses a threaded M8 × 1 housing with a 50 mm overall length and is designed for flush mounting. Its compact cylindrical construction makes it practical for machinery, fixtures and automation equipment where installation space is limited.
The housing is manufactured from brass with a white-bronze coating, while the active face is made from PBT and the supplied lock nuts are made from brass. This robust construction is suitable for demanding industrial environments.
The IE5432 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions. It is designed for an ambient temperature range of -25 °C to +80 °C.
The sensor is supplied with a 0.38 m PUR cable, 3.5 mm diameter, with 2 × 0.14 mm² conductors. A yellow LED provides switching-status indication to assist with installation, commissioning and maintenance.
For businesses seeking Industrial Automation UAE, Industrial Automation Supplier in UAE, Industrial Sensors Supplier UAE and Automation Products Supplier UAE, the IE5432 provides a flexible and dependable inductive sensing solution for compatible industrial automation applications.
IFM IE5432 inductive proximity sensor
Model: IEA2001-FRKG/0,38M/PH
1 mm switching distance
Real sensing range: 1 ± 10%
Working distance: 0–0.81 mm
PNP/NPN electrical design
Normally-open / normally-closed output selectable
5–36 V DC operating voltage
2000 Hz switching frequency
200 mA permanent switching current
M8 × 1 threaded housing
50 mm overall length
Flush-mountable construction
Brass white-bronze-coated housing
PBT active face
0.38 m PUR cable
2 × 0.14 mm² cable conductors
IP67 protection rating
-25 °C to +80 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching-status indication
Two-wire technology
Suitable for restricted installation spaces
The IE5432 operates using an inductive sensing principle, detecting metallic objects without direct physical contact. When a suitable metallic target enters the sensing zone, the sensor changes its output state according to the selected switching configuration.
Its PNP/NPN selectable electrical design and normally-open/normally-closed selectable output function provide flexibility when integrating the sensor into compatible PLCs, controllers and automation systems.
The M8 × 1 threaded housing and flush-mountable construction allow the sensor to be installed neatly into suitable machine structures. This makes it particularly useful for compact machinery and installations with restricted mounting space.
The IE5432 provides a 1 mm switching distance, with a real sensing range of 1 ± 10% mm and a working distance of 0–0.81 mm.
Its 2000 Hz switching frequency supports fast and repetitive detection operations, making the sensor suitable for automated machinery, production equipment and high-cycle industrial processes.
The correction factors for different metallic target materials are:
Steel: 1
Stainless steel: 0.7
Brass: 0.4
Aluminium: 0.3
Copper: 0.2
These correction factors should be considered when designing applications involving different metallic target materials.
The IE5432 provides a PNP/NPN selectable electrical design, allowing greater flexibility when integrating the sensor with compatible industrial control systems.
Its output function can also be selected between normally open and normally closed, helping users adapt the sensor to different machine-control requirements.
This flexible configuration makes the IE5432 suitable for:
Machine position detection
Metal component detection
Object presence monitoring
Conveyor monitoring
Automated counting
Production-line control
Assembly machinery
Machine status feedback
The IE5432 is designed for applications where installation space is restricted.
Its M8 × 1 threaded body and 50 mm overall length provide a compact cylindrical format for machine structures, fixtures and automation equipment.
The flush-mountable design allows the sensor to be integrated into suitable metal structures while maintaining reliable proximity detection.
For Industrial automation companies UAE, this compact construction can provide additional flexibility when designing machinery and automated production systems.
The IE5432 can be incorporated into Industrial automation solutions in UAE across manufacturing, engineering, machine building, packaging, material handling and factory production environments.
Machine Position Detection
The sensor can detect the position of metallic moving parts, machine components, slides and mechanical fixtures.
Metal Component Detection
It can detect the presence or absence of metal workpieces and components during manufacturing and assembly processes.
Conveyor Automation
The IE5432 can monitor metallic objects moving along conveyor systems and provide switching feedback to compatible control equipment.
Automated Counting
The high switching frequency allows the sensor to support repetitive detection and counting of metallic objects in automated production processes.
Assembly Machinery
The sensor can confirm whether a metallic component is present at a specific stage of an automated assembly operation.
Material Handling Equipment
The IE5432 can provide proximity feedback in automated transfer, handling and positioning systems.
Production Machinery
It can support machine-control functions where reliable non-contact detection of metallic components is required.
The IE5432 can operate as part of larger Industrial automation systems in UAE, providing proximity feedback to compatible PLCs and industrial controllers.
It can be incorporated alongside other Industrial Automation Components UAE, including PLCs, control panels, actuators, switches, drives and additional industrial sensors.
For Industrial Automation Suppliers UAE, machine builders and system integrators, the IE5432 provides a flexible inductive sensing component for factory automation and machine-control applications.
The selectable PNP/NPN design and NO/NC output function provide additional flexibility when connecting the sensor to compatible automation architectures.
The IE5432 is designed for industrial environments and provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
The operating temperature range of -25 °C to +80 °C allows the sensor to be used across a broad range of machinery and factory environments.
The sensor also provides short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The IE5432 is supplied with a 0.38 m PUR cable with 2 × 0.14 mm² conductors, providing a compact connection solution for industrial installations.
The cable has a 3.5 mm diameter, making the supplied connection suitable for the compact sensor design.
A yellow LED switching-status indicator provides visual feedback during installation, commissioning and maintenance.
Compact M8 × 1 housing for restricted installation spaces
1 mm switching distance
Reliable non-contact metal detection
Selectable PNP/NPN electrical design
Selectable normally-open / normally-closed output
5–36 V DC operation
2000 Hz switching frequency
Flush-mountable construction
Robust brass white-bronze-coated housing
0.38 m PUR connection cable
IP67 protection
-25 °C to +80 °C operating temperature
Short-circuit protection
Overload protection
Clear yellow switching-status LED
Two-wire technology
Suitable for factory automation and machinery
The IE5432 IEA2001-FRKG/0,38M/PH is a compact, flexible and reliable IFM inductive proximity sensor designed for non-contact metal detection in industrial automation. Its 1 mm switching distance, selectable PNP/NPN electrical design, programmable NO/NC output, 2000 Hz switching frequency, M8 × 1 housing, PUR cable and IP67 protection make it suitable for machinery, conveyors, assembly systems, production equipment and factory automation applications.
For businesses searching for Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Equipment UAE and Factory Automation Components, the IE5432 provides a practical solution for reliable and configurable non-contact metal detection.
| Feature | Specification |
|---|---|
| Product Code | IE5432 |
| Manufacturer | IFM |
| Model / Part Number | IEA2001-FRKG/0,38M/PH |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, selectable |
| Technology | Two-wire |
| Operating Voltage | 5–36 V DC |
| Protection Class | III |
| Switching Distance | 1 mm |
| Real Switching Distance (Sr) | 1 ± 10% mm |
| Working Distance | 0–0.81 mm |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Active Face Material | PBT |
| Lock Nut Material | Brass |
| Switching Frequency | 2000 Hz |
| Permanent Switching Current | 200 mA |
| Minimum Load Current | 4 mA |
| Maximum Residual Current | 0.8 mA |
| Maximum Voltage Drop | 4.6 V |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Connection | 0.38 m PUR cable |
| Cable Diameter | 3.5 mm |
| Cable Conductors | 2 × 0.14 mm² |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 3377 years |
| Weight | Approx. 23.7 g |
| Tightening Torque | A = 5 mm: 1 Nm; B: 2 Nm |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems, assembly machinery and factory automation |
