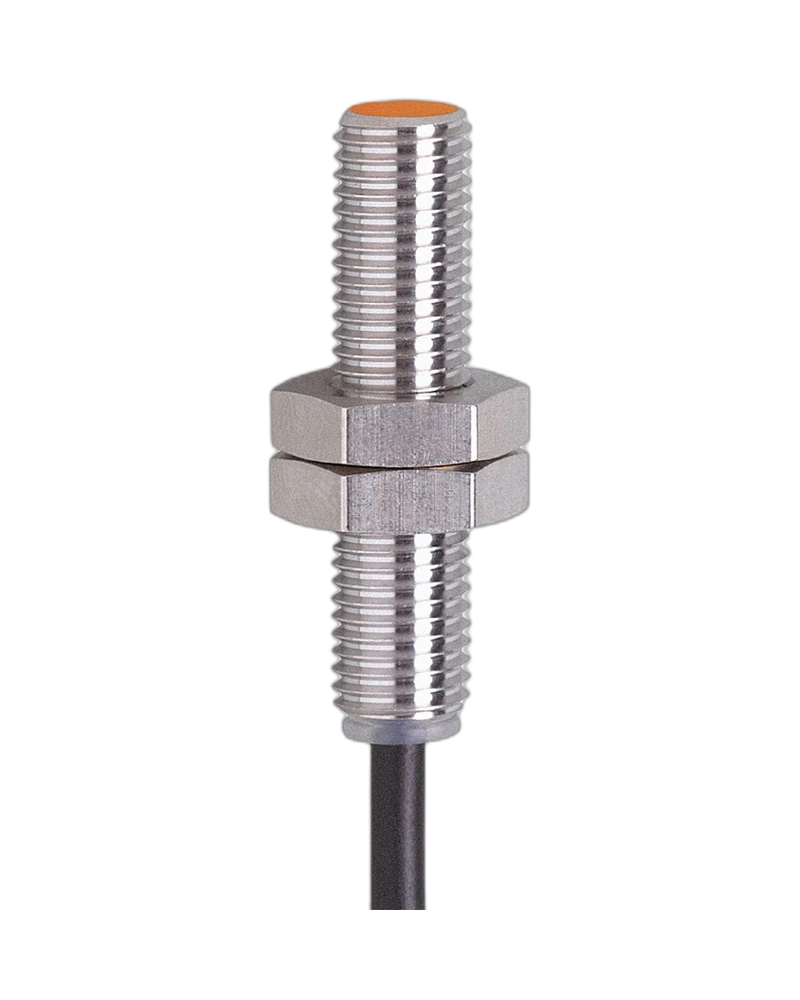

The IE5430 IEB3001-BPKG/3M/ZH/RT inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. With a 1 mm sensing range, PNP normally-open output, 10–36 V DC operation, 2000 Hz switching frequency, compact M8 × 1 threaded housing and 3 m PUR cable, it provides dependable detection performance in space-restricted industrial installations. Its flush-mountable construction, IP67 protection and robust metal housing make it suitable for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5430 IEB3001-BPKG/3M/ZH/RT inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machine control and factory production applications. Its particularly short housing makes it an excellent choice for installations where mounting space is restricted while reliable metal detection and fast switching performance are required.
The sensor uses inductive proximity sensing technology to detect metal objects without physical contact. This makes the IE5430 suitable for repeated detection of machine parts, workpieces, moving components and metallic objects in automated processes.
The IE5430 provides a 1 mm sensing range, with a real sensing range of 1 ± 10% mm and a guaranteed operating distance of 0–0.81 mm. This compact sensing arrangement is suitable for applications where precise proximity detection is required in a small installation area.
The sensor features a PNP electrical design with a normally-open output. It operates on a 10–36 V DC supply and supports a switching frequency of up to 2000 Hz, making it suitable for high-speed repetitive detection tasks in industrial machinery and automated production equipment.
One of the main advantages of the IE5430 is its particularly short M8 × 1 threaded housing, with an overall length of only 35 mm. This compact form factor makes the sensor suitable for machinery, fixtures and automation equipment where installation space is limited. The sensor is designed for flush mounting, allowing practical integration into compatible metal machine structures.
The sensor uses a robust metal construction with a brass threaded sleeve coated with white bronze, while the active face is made from PBT and the end cap is made from TPU. This construction provides a practical solution for demanding industrial environments.
The IE5430 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions. It is designed for an ambient temperature range of -25 °C to +80 °C.
The sensor is supplied with a 3 m PUR cable with 3 × 0.14 mm² conductors, providing a convenient connection solution for industrial installations. A red LED provides clear switching-status indication for easier commissioning, inspection and maintenance.
For businesses seeking Industrial Automation UAE, Industrial Automation Supplier in UAE, Industrial Sensors Supplier UAE and Automation Products Supplier UAE, the IE5430 provides a compact and dependable inductive sensing solution for compatible industrial automation systems.
IFM IE5430 inductive proximity sensor
Model: IEB3001-BPKG/3M/ZH/RT
1 mm sensing range
Real sensing range: 1 ± 10%
Guaranteed sensing range: 0–0.81 mm
PNP electrical design
Normally-open output
10–36 V DC operating voltage
200 mA permanent switching current
2000 Hz switching frequency
M8 × 1 threaded housing
35 mm overall length
Flush-mountable construction
Brass white-bronze-coated threaded sleeve
PBT active face
TPU end cap
3 m PUR cable
3 × 0.14 mm² cable conductors
IP67 protection rating
-25 °C to +80 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Red LED switching-status indication
Suitable for demanding industrial environments
The IE5430 operates using an inductive sensing principle, detecting metallic objects without direct physical contact. When a suitable metal target enters the detection zone, the sensor switches its PNP normally-open output.
This non-contact detection method makes the sensor suitable for repeated industrial detection tasks. It can monitor the presence or position of metallic components, machine parts, workpieces and moving objects without mechanical contact.
The M8 × 1 threaded construction and 35 mm short housing make the IE5430 particularly useful in machinery where installation space is restricted. Its flush-mountable construction allows the sensor to be integrated neatly into compatible machine structures.
The IE5430 provides a 1 mm sensing range, with a real sensing range of 1 ± 10% mm and a guaranteed sensing range of 0–0.81 mm.
Its 2000 Hz switching frequency allows the sensor to support fast and repetitive metal detection in automated machinery and production equipment.
The correction factors for different metallic target materials are:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
These correction factors should be considered when designing applications involving different metallic target materials.
The IE5430 uses a PNP normally-open output, making it suitable for compatible PLCs, industrial controllers and automation systems.
When the sensor detects a suitable metallic target, the switching output changes state and provides a detection signal to the connected control system.
This makes the sensor suitable for applications requiring:
Machine position detection
Metal component detection
Object presence monitoring
Conveyor monitoring
Automated counting
Production-line control
Assembly machinery
Machine status feedback
The IE5430 features a particularly short M8 × 1 threaded housing with an overall length of 35 mm.
This compact construction is useful for machine structures, fixtures and automation equipment where conventional longer sensors may be difficult to install.
The flush-mountable design provides practical integration into compatible machine structures while maintaining reliable proximity detection.
For Industrial automation companies in UAE, the compact sensor design can provide additional flexibility when designing machinery and automated production equipment.
The IE5430 can be incorporated into Industrial automation solutions in UAE across manufacturing, engineering, machine building, packaging, material handling and factory production environments.
Machine Position Detection
The sensor can detect the position of metallic moving parts, slides, machine components and mechanical fixtures.
Metal Component Detection
It can detect the presence or absence of metal workpieces and components during manufacturing and assembly processes.
Conveyor Automation
The IE5430 can monitor metallic objects moving along conveyor systems and provide switching feedback to compatible control equipment.
Automated Counting
The sensor can detect individual metallic objects passing a sensing point for automated counting and production monitoring.
Assembly Machinery
The IE5430 can confirm whether a metallic component is present at a particular stage of an automated assembly process.
Material Handling Equipment
The sensor can provide proximity feedback in automated material handling and transfer systems.
Production Machinery
It can support machine-control functions where reliable non-contact detection of metallic components is required.
The IE5430 can operate as part of larger Industrial automation systems in UAE, providing proximity feedback to PLCs and compatible industrial controllers.
It can be incorporated alongside other Industrial Automation Components UAE, such as PLCs, control panels, actuators, switches, drives and other industrial sensors.
For Industrial Automation Suppliers UAE, machine builders and system integrators, the IE5430 provides a compact and dependable inductive sensing component for factory automation applications.
Its PNP normally-open output makes it suitable for compatible control architectures requiring this type of switching configuration.
The IE5430 is designed for industrial environments and provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
The operating temperature range of -25 °C to +80 °C provides flexibility for a broad range of machinery and factory environments.
The sensor incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The IE5430 is supplied with a 3 m PUR cable with 3 × 0.14 mm² conductors, providing a practical connection solution for industrial sensor installations.
A red LED switching-status indicator provides visual feedback during installation, commissioning and maintenance, helping technicians quickly identify the sensor's operating state.
Compact 35 mm housing for restricted installation spaces
1 mm sensing range
Reliable non-contact metal detection
PNP normally-open output
10–36 V DC operation
2000 Hz switching frequency
Flush-mountable M8 × 1 construction
Robust metal housing
3 m PUR connection cable
IP67 protection
-25 °C to +80 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Clear red switching-status LED
Suitable for factory automation and machinery
The IE5430 IEB3001-BPKG/3M/ZH/RT is a compact, robust and high-speed IFM inductive proximity sensor designed for reliable metal detection in industrial automation. Its short M8 × 1 housing, 1 mm sensing range, PNP normally-open output, 2000 Hz switching frequency, 3 m PUR cable and IP67 protection make it suitable for machinery, conveyors, production equipment, assembly systems and factory automation applications.
For businesses searching for Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Equipment UAE and Factory Automation Components, the IE5430 provides a practical solution for reliable non-contact metal detection.
| Feature | Specification |
|---|---|
| Product Code | IE5430 |
| Manufacturer | IFM |
| Model / Part Number | IEB3001-BPKG/3M/ZH/RT |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | < 15 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 1 mm |
| Real Sensing Range (Sr) | 1 ± 10% mm |
| Guaranteed Sensing Range | 0–0.81 mm |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Active Face Material | PBT |
| End Cap Material | TPU |
| Switching Frequency | 2000 Hz |
| Permanent Switching Current | 200 mA |
| Maximum Voltage Drop | 2.5 V |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Connection | 3 m PUR cable |
| Cable Conductors | 3 × 0.14 mm² |
| Output Status Indication | 1 × red LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 2804 years |
| Weight | Approx. 61.7 g |
| Tightening Torque | A = 5 mm: 1 Nm; B: 2 Nm |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems and factory automation |
