The IE5428 IEK2002BFRKG/0,20M/PH/MOLEX inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. It features a 2 mm sensing range, selectable PNP/NPN electrical design, selectable normally-open/normally-closed output, 5–36 V DC operation, 1000 Hz switching frequency, compact M8 × 1 threaded housing and a 0.2 m PUR cable with MOLEX connector. With flush mounting and IP67 protection, it is suitable for industrial, mobile, cooling and lubricating applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5428 IEK2002BFRKG/0,20M/PH/MOLEX inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. It features a 2 mm sensing range, selectable PNP/NPN electrical design, selectable normally-open/normally-closed output, 5–36 V DC operation, 1000 Hz switching frequency, compact M8 × 1 threaded housing and a 0.2 m PUR cable with MOLEX connector. With flush mounting and IP67 protection, it is suitable for industrial, mobile, cooling and lubricating applications.
The IE5428 IEK2002BFRKG/0,20M/PH/MOLEX inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machine control and factory production environments. It is designed for applications requiring reliable sensing performance, high switching frequency and protection against demanding industrial operating conditions.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes the IE5428 suitable for repeated detection of machine components, workpieces, moving parts and metallic objects in automated production processes.
The IE5428 provides a 2 mm sensing range with an operating distance of 0–1.62 mm. Its flush-mountable construction supports reliable detection while allowing practical integration into compatible machine structures.
The sensor features a PNP/NPN electrical design with selectable normally-open or normally-closed output. It operates from a 5–36 V DC supply and supports a switching frequency of up to 1000 Hz, making it suitable for repetitive detection tasks in industrial machinery and automation systems.
The IE5428 uses a compact M8 × 1 threaded housing with a 53 mm overall length. Its threaded construction and flush mounting capability make it suitable for installation in industrial machinery and automation equipment where dependable proximity detection is required.
The sensor has a brass threaded sleeve with white-bronze coating and a black LCP active face. This construction is designed for industrial applications, including environments involving cooling and lubricating media.
The IE5428 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions. It is designed for an ambient temperature range of -25 °C to +80 °C.
The sensor uses a 0.2 m PUR cable with 2 × 0.14 mm² conductors and one MOLEX connector, providing a compact connection solution for compatible industrial installations. A yellow LED provides switching-status indication for easier commissioning and maintenance.
For businesses seeking Industrial Automation UAE, Industrial Automation Supplier in UAE, Industrial Sensors Supplier UAE and Automation Products Supplier UAE, the IE5428 provides a compact and versatile inductive sensing solution for compatible automation systems.

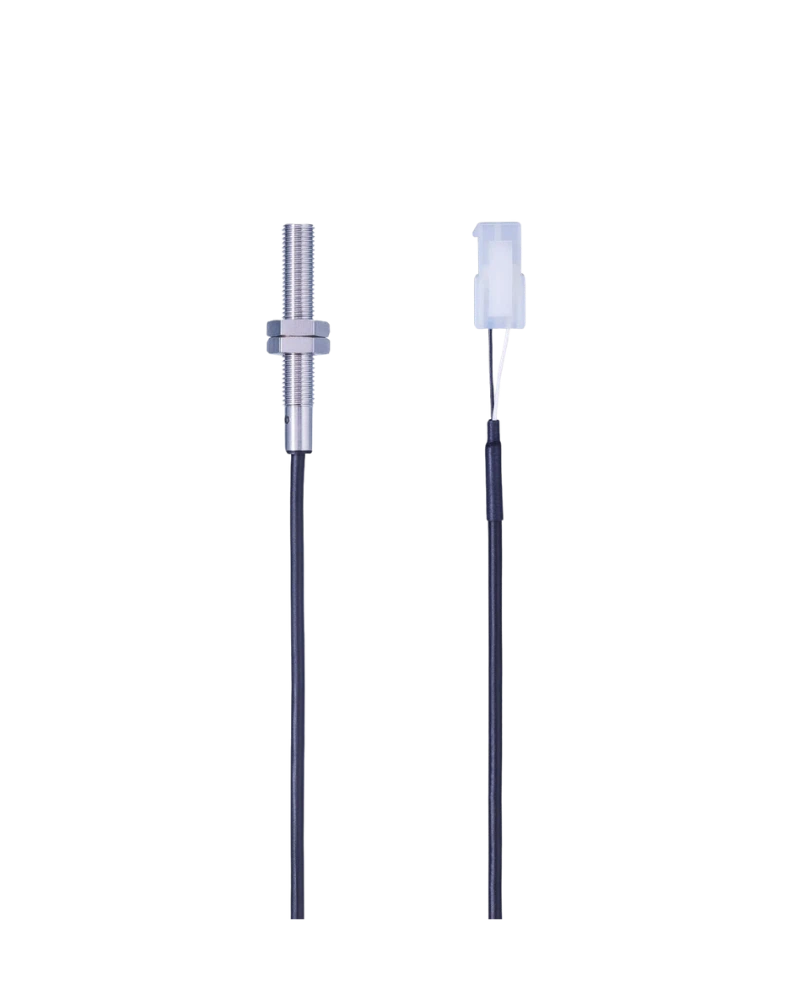

IFM IE5428 inductive proximity sensor
Model: IEK2002BFRKG/0,20M/PH/MOLEX
2 mm sensing range
Operating distance: 0–1.62 mm
PNP/NPN electrical design
Normally-open / normally-closed output selectable
5–36 V DC operating voltage
1000 Hz switching frequency
200 mA permanent switching current
M8 × 1 threaded housing
53 mm overall length
Flush-mountable construction
Brass white-bronze-coated threaded sleeve
Black LCP active face
0.2 m PUR cable
2 × 0.14 mm² cable conductors
MOLEX connector
IP67 protection rating
-25 °C to +80 °C ambient temperature
Short-circuit protection
Overload protection
Yellow LED switching-status indication
Suitable for industrial, mobile, cooling and lubricating applications
The IE5428 operates using an inductive sensing principle, detecting metallic objects without direct physical contact. When a suitable metallic target enters the sensor's detection zone, the sensor provides a switching signal through its configurable output.
The selectable PNP/NPN electrical design and normally-open/normally-closed output function provide flexibility when integrating the sensor into compatible industrial control systems.
The M8 × 1 threaded housing and 53 mm overall length provide a practical installation solution for machinery and automation equipment. Its flush-mountable design allows the sensor to be integrated into suitable machine structures while maintaining reliable proximity detection.
The IE5428 provides a 2 mm sensing range and an operating distance of 0–1.62 mm. The sensor supports a switching frequency of 1000 Hz, allowing it to handle repetitive metallic target detection in automated machinery and production processes.
The specified correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
These correction factors should be considered when selecting the sensor for applications involving different metallic target materials.
The IE5428 uses a PNP/NPN electrical design with selectable normally-open or normally-closed output, allowing flexible integration with compatible PLCs, controllers and industrial automation equipment.
This configurable output arrangement makes the sensor suitable for different machine-control architectures where specific switching logic is required.
Typical functions include:
Machine position detection
Metal component detection
Object presence monitoring
Conveyor monitoring
Production-line control
Assembly machinery
Machine status feedback
The IE5428 features an M8 × 1 threaded housing with a 53 mm overall length, providing a compact sensing solution for industrial machinery.
Its flush-mountable construction supports neat integration into compatible machine structures. The short 0.2 m PUR cable and MOLEX connector provide a practical connection arrangement for installations where a compact sensor connection is preferred.
The IE5428 can be incorporated into Industrial automation solutions in UAE across manufacturing, machine building, material handling and factory production environments.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanisms.
Metal Component Detection
It can detect the presence or absence of metallic workpieces and components during manufacturing and assembly operations.
Conveyor Automation
The IE5428 can monitor metallic objects moving through conveyor systems and provide switching feedback to compatible control equipment.
Assembly Machinery
The sensor can confirm the presence or position of metallic components during automated assembly processes.
Material Handling Equipment
It can provide proximity feedback in automated material handling and transfer systems.
Production Machinery
The sensor can support machine-control functions where dependable non-contact detection of metallic components is required.
Cooling and Lubricating Applications
The IE5428 is also specified by IFM for industrial applications involving cooling and lubricating media.
The IE5428 can operate as part of larger Industrial automation systems in UAE, providing proximity feedback to compatible PLCs and industrial controllers.
It can be incorporated alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, switches, drives and other industrial sensors.
For Industrial Automation Suppliers UAE, machine builders and system integrators, the IE5428 provides a flexible inductive sensing component for machinery and factory automation equipment.
The IE5428 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
Its specified ambient operating temperature range is -25 °C to +80 °C, providing flexibility for a broad range of industrial environments.
The sensor incorporates short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The IE5428 is supplied with a 0.2 m PUR cable with 2 × 0.14 mm² conductors and one MOLEX connector, type 39-01-2021. This provides a compact connection solution for compatible industrial installations.
A yellow LED switching-status indicator provides visual feedback during installation, commissioning and maintenance, helping technicians identify the sensor's operating state.
2 mm sensing range
Reliable non-contact metal detection
PNP/NPN electrical design
Selectable normally-open / normally-closed output
5–36 V DC operating voltage
1000 Hz switching frequency
Compact M8 × 1 threaded construction
53 mm overall length
Flush-mountable installation
Brass white-bronze-coated threaded sleeve
Black LCP active face
0.2 m PUR cable
MOLEX connector
IP67 protection
-25 °C to +80 °C operating temperature
Short-circuit protection
Overload protection
Yellow LED switching-status indication
Suitable for industrial, mobile, cooling and lubricating applications
The IE5428 IEK2002BFRKG/0,20M/PH/MOLEX is a compact and versatile IFM inductive proximity sensor designed for reliable non-contact detection of metallic objects. Its 2 mm sensing range, selectable PNP/NPN design, configurable NO/NC output, 1000 Hz switching frequency, M8 × 1 construction, flush mounting and IP67 protection make it suitable for machinery, position detection, conveyors, assembly equipment and industrial automation applications.
For businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Equipment UAE, the IE5428 provides a practical sensing solution for compatible industrial automation systems.
| Feature | Specification |
|---|---|
| Product Code | IE5428 |
| Manufacturer | IFM |
| Model / Part Number | IEK2002BFRKG/0,20M/PH/MOLEX |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, selectable |
| Operating Voltage | 5–36 V DC |
| Protection Class | III |
| Minimum Load Current | 4 mA |
| Sensing Range | 2 mm |
| Operating Distance | 0–1.62 mm |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 53 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Active Face Material | LCP, black |
| Switching Frequency | 1000 Hz |
| Permanent Switching Current | 200 mA |
| Maximum Voltage Drop | 4.6 V |
| Hysteresis | 1–20% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Connection | 0.2 m PUR cable |
| Cable Conductors | 2 × 0.14 mm² |
| Connector | 1 × MOLEX |
| Connector Type | MOLEX 39-01-2021 |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC – ESD | EN 61000-4-2: 4 kV CD / 8 kV AD |
| EMC – HF Radiated | EN 61000-4-3: 10 V/m |
| EMC – Burst | EN 61000-4-4: 2 kV |
| EMC – HF Conducted | EN 61000-4-6: 10 V |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 3377 years |
| Weight | Approx. 23.7 g |
| Tightening Torque | A = 5 mm: 1 Nm; B: 2 Nm |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems, mobile applications, cooling and lubricating applications |
