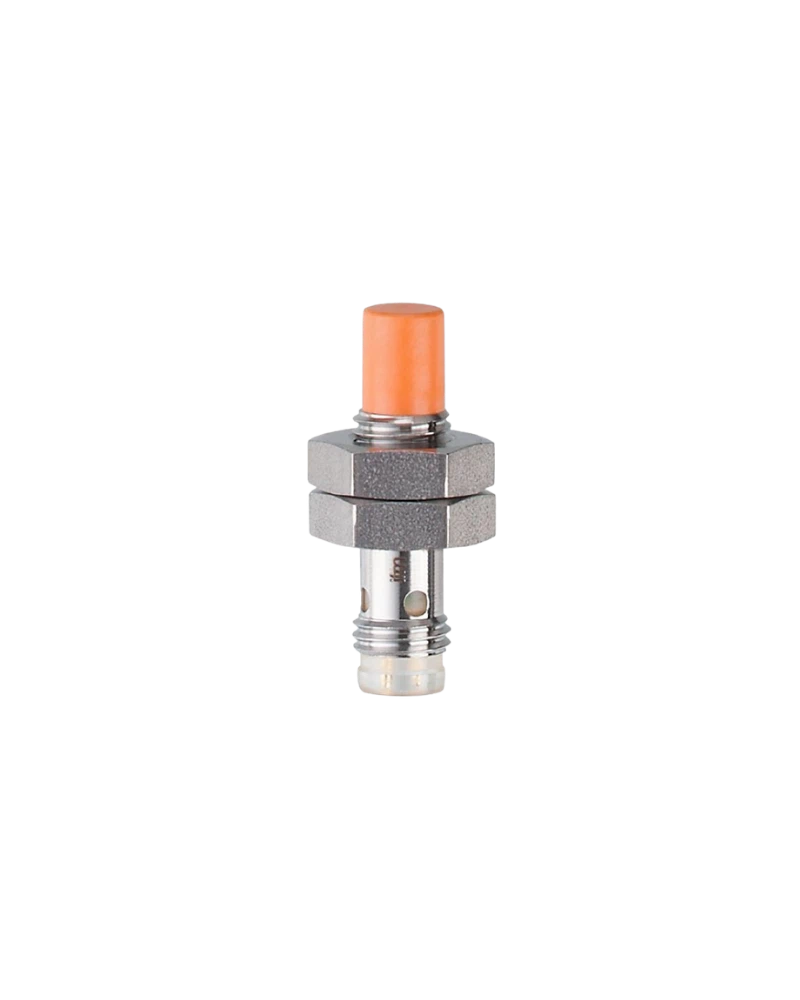

The IE5427 IEB21,5-BRKG/2M/ZH inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. It features a 1.5 mm sensing range, PNP/NPN electrical design, normally-closed output, 10–30 V DC operation, 1000 Hz switching frequency, compact M8 × 1 threaded housing and 2 m PUR cable. With flush mounting and IP67 protection, it is suitable for machine position detection, metal component detection and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5427 IEB21,5-BRKG/2M/ZH inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machine control and factory production environments. Its compact threaded housing makes it suitable for installations where reliable proximity detection is required in a limited mounting space.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This non-contact operating principle makes the IE5427 suitable for repeated detection of machine components, workpieces, moving parts and metallic objects in automated processes.
The IE5427 provides a 1.5 mm nominal sensing range, with a real sensing range of 1.5 ± 10% mm and an operating distance of 0–1.2 mm. The sensor is designed for flush mounting and provides reliable detection within its specified sensing zone.
The sensor features a PNP/NPN electrical design with a normally-closed output. It operates from a 10–30 V DC supply and supports a switching frequency of 1000 Hz, making it suitable for repetitive detection tasks in industrial machinery and factory automation systems.
The IE5427 uses an M8 × 1 threaded housing with a 37 mm overall length according to the IFM product page. The sensor is flush mountable, making it suitable for integration into compatible machine structures and automation equipment.
The sensor has a brass threaded sleeve with a white-bronze coating and an LCP sensing face. This construction provides a robust sensing solution for industrial applications.
The IE5427 provides IP67 protection, helping protect the sensor against dust and water ingress under specified operating conditions. Its ambient operating temperature range is 0 °C to +60 °C.
The sensor is supplied with a 2 m PUR cable with 2 × 0.14 mm² conductors, providing a practical connection solution for industrial installations. A yellow LED provides switching-status indication for easier commissioning and maintenance.
For businesses seeking Industrial Automation UAE, Industrial Automation Supplier in UAE, Industrial Sensors Supplier UAE and Automation Products Supplier UAE, the IE5427 provides a compact and dependable inductive sensing solution for compatible automation systems.
IFM IE5427 inductive proximity sensor
Model: IEB21,5-BRKG/2M/ZH
1.5 mm nominal sensing range
Real sensing range: 1.5 ± 10% mm
Operating distance: 0–1.2 mm
PNP/NPN electrical design
Normally-closed output
10–30 V DC operating voltage
1000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
37 mm overall length
Flush-mountable construction
Brass white-bronze-coated threaded sleeve
LCP sensing face
2 m PUR cable
2 × 0.14 mm² cable conductors
IP67 protection rating
0 °C to +60 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching-status indication
Suitable for industrial automation and machine control
The IE5427 operates using an inductive sensing principle, detecting metallic objects without direct physical contact. When a suitable metallic target enters the sensing zone, the sensor changes the state of its normally-closed switching output.
This non-contact detection principle reduces the need for mechanical contact between the sensor and target. It makes the sensor suitable for repeated detection operations in automated machinery, production equipment and material handling systems.
The M8 × 1 threaded housing and 37 mm overall length provide a compact installation solution for industrial machinery. Its flush-mountable design allows the sensor to be integrated into suitable machine structures while maintaining a practical sensing arrangement.
The IE5427 provides a 1.5 mm nominal sensing range, with a real sensing range of 1.5 ± 10% mm and an operating distance of 0–1.2 mm.
The sensor supports a 1000 Hz switching frequency, allowing it to handle repetitive metallic target detection in automated machinery and production processes.
The specified correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
These correction factors should be considered when selecting the sensor for applications involving different metallic target materials.
The IE5427 uses a PNP/NPN electrical design with a normally-closed output, providing flexibility for compatible industrial control systems.
The sensor can provide switching feedback to suitable PLCs, controllers and automation equipment when a metallic target enters the sensing zone.
Typical functions include:
Machine position detection
Metal component detection
Object presence monitoring
Conveyor monitoring
Production-line control
Assembly machinery
Machine status feedback
The IE5427 features an M8 × 1 threaded housing with a 37 mm overall length, making it suitable for compact industrial machinery and automation equipment.
Its flush-mountable construction supports neat integration into compatible machine structures. The supplied 2 m PUR cable provides a practical connection arrangement for installations where additional cable length is required.
The IE5427 can be integrated into Industrial automation solutions in UAE across manufacturing, machine building, material handling and factory production environments.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanisms.
Metal Component Detection
It can detect the presence or absence of metallic workpieces and components during manufacturing and assembly operations.
Conveyor Automation
The IE5427 can monitor metallic objects moving through conveyor systems and provide switching feedback to compatible control equipment.
Assembly Machinery
The sensor can confirm the presence or position of metallic components during automated assembly processes.
Material Handling Equipment
It can provide proximity feedback in automated material handling and transfer systems.
Production Machinery
The sensor can support machine-control functions where dependable non-contact detection of metallic components is required.
The IE5427 can operate as part of larger Industrial automation systems in UAE, providing proximity feedback to compatible PLCs and industrial controllers.
It can be incorporated alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, switches, drives and other industrial sensors.
For Industrial Automation Suppliers UAE, machine builders and system integrators, the IE5427 provides a compact inductive sensing component for machinery and factory automation equipment.
The IE5427 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified conditions.
Its specified ambient operating temperature range is 0 °C to +60 °C, making it suitable for industrial environments within the manufacturer's operating conditions.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The IE5427 is supplied with a 2 m PUR cable with 2 × 0.14 mm² conductors, providing a direct cabling solution for industrial installations.
A yellow LED switching-status indicator provides visual feedback during installation, commissioning and maintenance, helping technicians identify the sensor's switching state.
Compact M8 × 1 threaded construction
37 mm overall length
1.5 mm sensing range
Reliable non-contact metal detection
PNP/NPN electrical design
Normally-closed output
10–30 V DC operation
1000 Hz switching frequency
100 mA permanent switching current
Flush-mountable construction
Brass white-bronze-coated threaded sleeve
LCP sensing face
2 m PUR cable
IP67 protection
0 °C to +60 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching-status indication
Suitable for industrial automation and machine control
The IE5427 IEB21,5-BRKG/2M/ZH is a compact and dependable IFM inductive proximity sensor designed for non-contact detection of metallic objects. Its 1.5 mm sensing range, PNP/NPN electrical design, normally-closed output, 1000 Hz switching frequency, M8 × 1 construction, flush-mountable design and IP67 protection make it suitable for machinery, position detection, conveyors, assembly equipment and factory automation applications.
For businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Equipment UAE, the IE5427 provides a practical sensing solution for compatible industrial automation systems.
| Feature | Specification |
|---|---|
| Product Code | IE5427 |
| Manufacturer | IFM |
| Model / Part Number | IEB21,5-BRKG/2M/ZH |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP/NPN |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Protection Class | III |
| Current Consumption | Not specified in available IFM product data |
| Sensing Range | 1.5 mm |
| Real Sensing Range (Sr) | 1.5 ± 10% mm |
| Operating Distance | 0–1.2 mm |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 37 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated threaded sleeve |
| Sensing Face Material | LCP |
| Switching Frequency | 1000 Hz |
| Permanent Switching Current | 100 mA |
| Maximum Voltage Drop | 2.8 V |
| Maximum Leakage Current | 0.4 mA |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes, pulsed |
| Overload Protection | Yes |
| Connection | 2 m PUR cable |
| Cable Conductors | 2 × 0.14 mm² |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | 0 °C to +60 °C |
| EMC Emission | EN 55011 Class B |
| EMC Immunity | EN 61000-4-3 HF radiated 3 V/m; EN 61000-4-4 Burst 2 kV; EN 61000-4-6 HF conducted 3 V |
| MTTF | Approx. 3004 years |
| Weight | Approx. 46 g |
| Tightening Torque | A = 5 mm: 1.5 Nm; B: 2 Nm |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems, assembly machinery and factory automation |
