The IE5422 IEB3004-APKG/V4A/AS inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. It features a 4 mm sensing range, PNP normally-closed output, 10–30 V DC operation, 800 Hz switching frequency, compact M8 × 1 housing and stainless-steel construction. Its increased sensing range and compact design make it suitable for machine position detection, metal component detection and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5422 IEB3004-APKG/V4A/AS inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machine control and production environments. Its particularly short M8 housing makes it suitable for installations where space is restricted while reliable proximity detection is required.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated detection of machine components, workpieces, moving parts and metallic objects in automated processes.
The IE5422 provides a 4 mm nominal sensing range, with a real sensing range of 4 ± 10% mm and an operating distance of 0–3.25 mm. The sensor incorporates an increased sensing range, helping provide dependable detection while maintaining a compact housing.
The sensor features a DC PNP electrical design with a normally-closed output. It operates from a 10–30 V DC supply and supports a switching frequency of 800 Hz, making it suitable for repetitive detection tasks in industrial machinery and factory automation systems.
The IE5422 uses a compact M8 × 1 threaded housing with a 30 mm overall length. Its short construction is suitable for applications with restricted installation space. The sensor is designed for non-flush mounting, according to the product documentation.
The sensor includes gold-plated connector contacts and an increased sensing range. Its robust construction is intended for demanding industrial applications where dependable proximity detection and long service life are required.
The IE5422 provides IP65 and IP67 protection when used with the correctly screwed-on IFM connector, helping protect the sensor against dust and water ingress under specified conditions. Its ambient operating temperature range is -25 °C to +70 °C.

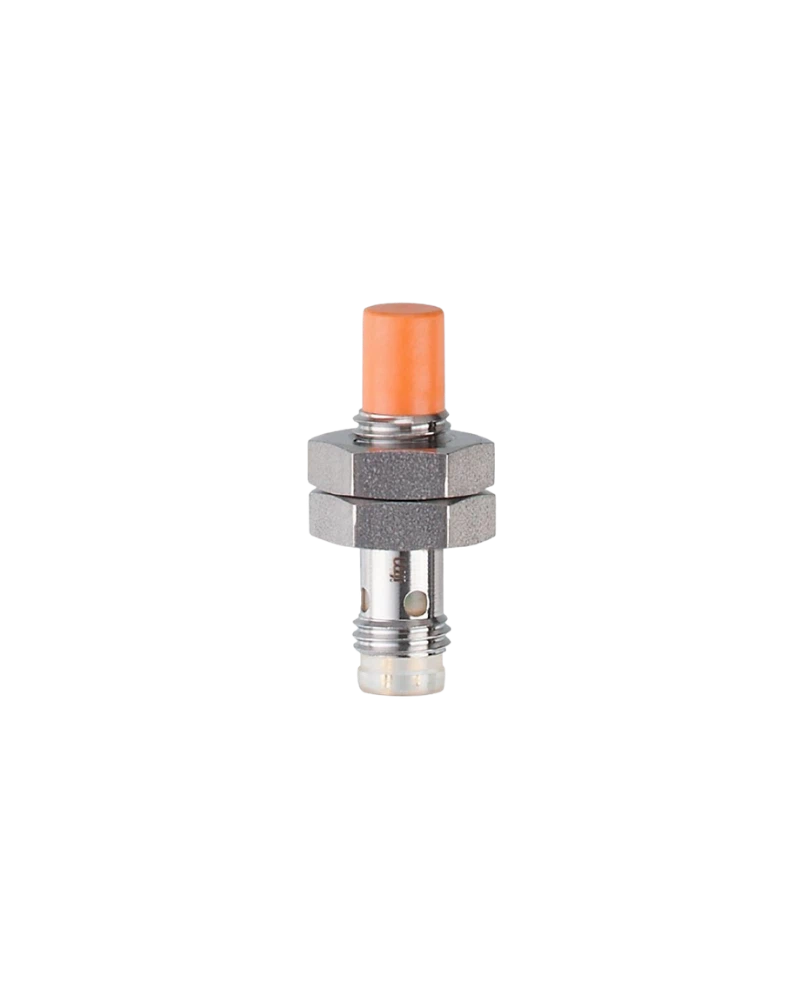

IFM IE5422 inductive proximity sensor
Model: IEB3004-APKG/V4A/AS
4 mm nominal sensing range
Real sensing range: 4 ± 10% mm
Operating distance: 0–3.25 mm
Increased sensing range
DC PNP electrical design
Normally-closed output
10–30 V DC operating voltage
800 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
30 mm overall length
Compact housing for restricted installation spaces
Non-flush mounting
Gold-plated connector contacts
IP65 and IP67 protection
-25 °C to +70 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for industrial automation and machine control
The IE5422 operates using an inductive sensing principle, detecting metallic objects without direct physical contact. When a suitable metallic target enters the sensing zone, the sensor changes the state of its PNP normally-closed output.
This non-contact detection principle helps reduce mechanical wear and provides a practical solution for repeated object detection in automated machinery.
The compact M8 × 1 threaded body and 30 mm housing allow the sensor to be installed in machine structures where available space is limited. The short housing can help simplify sensor placement in compact automation equipment.
The IE5422 provides a 4 mm sensing range with a real sensing range of 4 ± 10% mm and an operating distance of 0–3.25 mm.
The increased sensing range provides additional detection capability for compact industrial sensing applications. This can be useful where reliable target detection is required without using a larger sensor body.
The specified correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.5
Copper: 0.4
These correction factors should be considered when selecting the sensor for applications involving different metallic target materials.
The IE5422 uses a DC PNP normally-closed output, making it suitable for compatible industrial control systems and automation architectures.
When the sensor detects a suitable metallic target, its switching output changes state and can provide proximity feedback to a PLC or industrial controller.
Typical applications include:
Machine position detection
Metal component detection
Object presence monitoring
Conveyor monitoring
Production-line control
Assembly machinery
Machine status feedback
The IE5422 features an M8 × 1 threaded housing with a 30 mm overall length, making it suitable for compact machinery and installations where mounting space is restricted.
The compact M8 connector also provides a space-saving connection solution for industrial sensor wiring.
The IE5422 can be incorporated into Industrial automation solutions in UAE across manufacturing, machine building, material handling and factory production environments.
Machine Position Detection
The sensor can detect the position of metallic moving parts, slides, fixtures and machine mechanisms.
Metal Component Detection
It can detect the presence or absence of metallic workpieces and components during manufacturing and assembly processes.
Conveyor Automation
The sensor can monitor metallic objects moving through conveyor systems and provide switching feedback to the control system.
Assembly Machinery
The IE5422 can confirm the presence or position of metallic components during automated assembly operations.
Material Handling Equipment
It can provide proximity feedback in automated material handling and transfer systems.
Production Machinery
The sensor can support machine-control functions where dependable non-contact detection of metallic components is required.
The IE5422 can operate as part of larger Industrial automation systems in UAE, providing proximity feedback to compatible PLCs and industrial controllers.
It can be incorporated alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, switches, drives and other industrial sensors.
For Industrial Automation Suppliers UAE, machine builders and system integrators, the IE5422 provides a compact sensing component for machinery and factory automation equipment.
The IE5422 provides IP65 and IP67 protection when used with a correctly installed IFM connector, supporting reliable operation in industrial environments under the specified conditions.
The sensor operates across an ambient temperature range of -25 °C to +70 °C, allowing it to be used across a broad range of industrial machinery and factory environments.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The IE5422 uses an M8 connector with gold-plated contacts, providing a compact connection solution for industrial sensor cabling.
The clearly visible switching-status indication helps technicians identify the sensor's operating state during installation, commissioning and maintenance.
Compact M8 × 1 threaded construction
30 mm overall length
4 mm sensing range
Increased sensing range
Reliable non-contact metal detection
PNP normally-closed output
10–30 V DC operation
800 Hz switching frequency
100 mA permanent switching current
Gold-plated connector contacts
IP65 and IP67 protection
-25 °C to +70 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for restricted installation spaces
Suitable for industrial automation and machine control
The IE5422 IEB3004-APKG/V4A/AS is a compact and dependable IFM inductive proximity sensor designed for non-contact detection of metallic objects. Its 4 mm sensing range, PNP normally-closed output, 800 Hz switching frequency, compact M8 × 1 housing and increased sensing range make it suitable for machinery, position detection, conveyors, assembly equipment and factory automation applications.
For businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Equipment UAE, the IE5422 provides a practical sensing solution for compatible industrial automation systems.
| Feature | Specification |
|---|---|
| Product Code | IE5422 |
| Manufacturer | IFM |
| Model / Part Number | IEB3004-APKG/V4A/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 4 mm |
| Real Sensing Range (Sr) | 4 ± 10% mm |
| Operating Distance | 0–3.25 mm |
| Increased Sensing Range | Yes |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 30 mm |
| Mounting | Non-flush mountable |
| Housing | Stainless-steel construction |
| Switching Frequency | 800 Hz |
| Permanent Switching Current | 100 mA |
| Maximum Voltage Drop | 2.5 V |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.5 |
| Correction Factor – Copper | 0.4 |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Connector | M8 connector |
| Connector Contacts | Gold-plated |
| Connection | 3-wire |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| Special Feature | Increased sensing range; gold-plated contacts |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems and factory automation |
