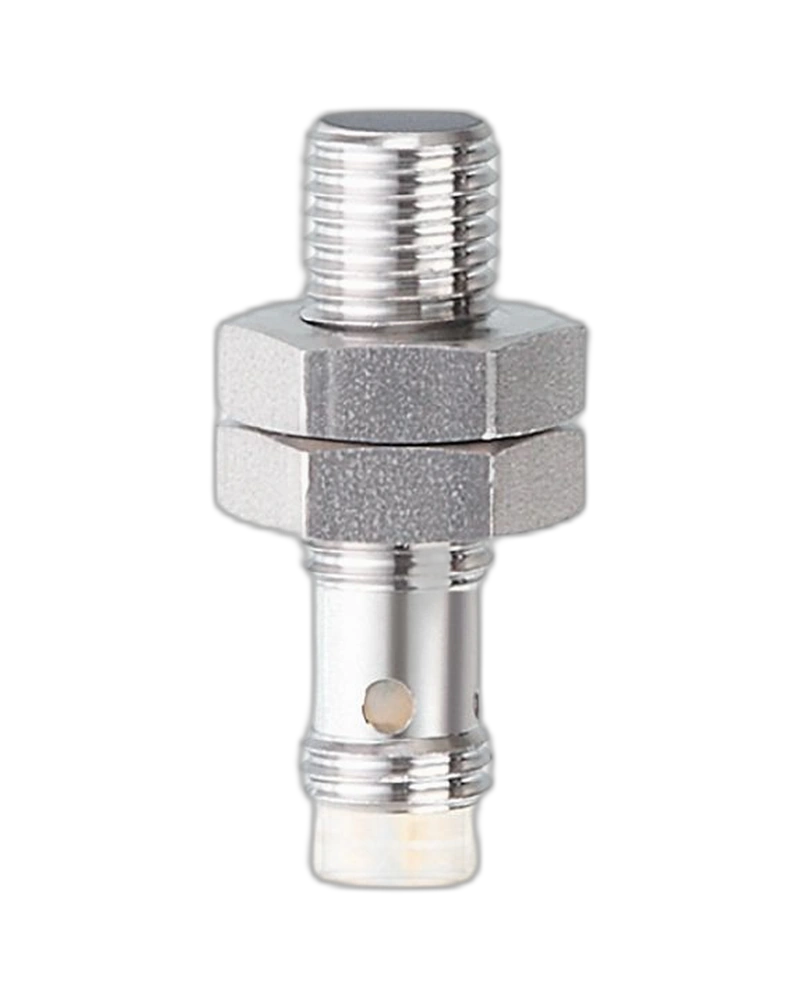

The IE5416 IEB31,5BBPKG/AS inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. With a 1.5 mm sensing range, PNP normally-open output, 10–30 V DC operation, compact M8 × 1 housing, very high 3000 Hz switching frequency and IP68 protection, it provides dependable proximity detection for machine control, position sensing and automated production systems. It is a practical choice for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and reliable Sensor Supplier UAE solutions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5416 IEB31,5BBPKG/AS inductive sensor by IFM is engineered for precise and dependable non-contact detection of metallic objects in industrial automation, machine control and production environments. Its compact M8 design makes it particularly suitable for applications where installation space is restricted while reliable sensing performance is required.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This non-contact operating principle makes the IE5416 suitable for repeated detection tasks involving machine components, workpieces, positioning mechanisms and automated production equipment.
The IE5416 provides a 1.5 mm nominal sensing range, with a real sensing range of 1.5 ± 10% mm and an operating distance of 0–1.2 mm. The sensor features an increased sensing range for its compact design.
The sensor uses a DC PNP electrical design with a normally-open output, making it suitable for compatible PLCs, industrial controllers and automation systems. It operates from a 10–30 V DC supply and supports an exceptionally high switching frequency of 3000 Hz, making it suitable for high-speed repetitive detection applications.
The IE5416 features a compact M8 × 1 threaded housing with an overall length of 30 mm. It is designed for flush mounting, allowing neat integration into compatible machine structures and automation equipment.
The sensor has a robust stainless-steel 316L housing, with a black LCP sensing face and PPSU LED window. This construction provides a durable solution for demanding industrial environments.
The IE5416 provides IP68 protection, helping protect the sensor against dust and water ingress under specified conditions. Its operating ambient temperature range is -25 °C to +70 °C.
The sensor uses an M8 A-coded connector and provides four yellow LEDs for clear switching-status indication. This visual indication can assist technicians during installation, commissioning and troubleshooting.
For businesses looking for Industrial Automation UAE, Industrial Automation Supplier in UAE, Industrial Sensors Supplier UAE and Automation Products Supplier UAE, the IE5416 provides a compact and high-speed inductive sensing solution for industrial machinery and factory automation.
IFM IE5416 inductive proximity sensor
Model: IEB31,5BBPKG/AS
1.5 mm nominal sensing range
Real sensing range: 1.5 ± 10% mm
Operating distance: 0–1.2 mm
Increased sensing range
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
3000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
30 mm overall length
Flush-mountable construction
Stainless-steel 316L housing
M8 A-coded connector
Four yellow LED switching-status indicators
IP68 protection rating
-25 °C to +70 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Very high switching frequency
Suitable for restricted installation spaces
The IE5416 operates using an inductive sensing principle, detecting metallic objects without direct physical contact. When a suitable metallic target enters the sensing zone, the sensor changes the state of its PNP normally-open switching output.
This non-contact detection method is suitable for repeated industrial detection tasks where mechanical contact should be avoided. It can provide reliable feedback for machine positioning, component presence detection, automated counting and production-line control.
The compact M8 × 1 threaded construction and 30 mm housing make the IE5416 suitable for machine assemblies where installation space is limited. Its flush-mountable design allows the sensor to be integrated neatly into compatible machine structures.
The IE5416 provides a 1.5 mm nominal sensing range with a real sensing range of 1.5 ± 10% mm and an operating distance of 0–1.2 mm.
One of its key advantages is its 3000 Hz switching frequency, which makes the sensor suitable for high-speed detection tasks in automated machinery and production systems.
The correction factors for different target materials are specified as:
Steel: 1
Stainless steel: 0.7
Brass: 0.4
Aluminium: 0.3
Copper: 0.2
These correction factors should be considered when designing applications involving different metallic target materials.
The IE5416 uses a DC PNP normally-open output, making it suitable for compatible industrial control architectures.
When the sensor detects an appropriate metallic target, the switching output changes state and can provide detection feedback to a PLC or automation controller.
Typical functions include:
Machine position detection
Metal component detection
Object presence monitoring
Conveyor monitoring
Automated counting
Production-line control
Machine status feedback
The IE5416 has an M8 × 1 threaded body and 30 mm overall length, providing a compact sensing solution for industrial machinery and factory automation equipment.
Its compact construction is particularly useful in applications where installation space is restricted. The flush-mountable configuration allows suitable integration into compatible metal machine structures.
The IE5416 can be integrated into Industrial automation solutions in UAE for a wide range of machine and factory applications.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanisms.
Metal Component Detection
It can identify the presence or absence of metallic workpieces and components during manufacturing and assembly operations.
Conveyor Systems
The IE5416 can detect metallic objects travelling through automated conveyor systems and provide switching feedback to the control system.
High-Speed Production Machinery
With its 3000 Hz switching frequency, the sensor is suitable for applications requiring rapid repetitive detection of metallic targets.
Assembly Machinery
The sensor can confirm the presence or position of metallic components during automated assembly processes.
Material Handling
It can provide proximity feedback in automated material handling and transfer equipment.
The IE5416 can operate as part of larger Industrial Automation Systems in UAE, providing high-speed proximity feedback to compatible PLCs and industrial controllers.
It can be integrated alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, switches, drives and other industrial sensors.
For Industrial Automation Suppliers UAE, machine builders and system integrators, the IE5416 provides a compact high-speed sensing component for automation equipment and industrial machinery.
The IE5416 provides an IP68 protection rating, supporting reliable operation in demanding industrial environments under the manufacturer's specified conditions.
Its -25 °C to +70 °C ambient temperature range allows use across a broad range of industrial machinery and factory environments.
The sensor also provides reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The IE5416 uses an M8 A-coded connector, providing a compact connection solution for industrial sensor cabling.
Four yellow LEDs provide clear switching-status indication, helping technicians identify the sensor's operating state during installation, commissioning and maintenance.
Compact M8 × 1 threaded construction
30 mm overall length
1.5 mm sensing range
Increased sensing range
Reliable non-contact metal detection
PNP normally-open output
10–30 V DC operation
3000 Hz switching frequency
100 mA permanent switching current
Stainless-steel 316L housing
M8 A-coded connector
IP68 protection
-25 °C to +70 °C operating temperature
Four yellow LED status indicators
Reverse-polarity protection
Short-circuit protection
Overload protection
Very high switching frequency
Suitable for restricted installation spaces
The IE5416 IEB31,5BBPKG/AS is a compact, robust and high-speed IFM inductive proximity sensor designed for reliable non-contact detection of metallic objects. Its 1.5 mm sensing range, PNP normally-open output, 3000 Hz switching frequency, M8 × 1 construction, stainless-steel housing and IP68 protection make it suitable for high-speed machinery, position detection, conveyors, assembly equipment and factory automation applications.
For businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Equipment UAE, the IE5416 provides a practical high-performance sensing solution for compatible industrial automation systems.
| Feature | Specification |
|---|---|
| Product Code | IE5416 |
| Manufacturer | IFM |
| Model / Part Number | IEB31,5BBPKG/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Sensing Range | 1.5 mm |
| Real Sensing Range (Sr) | 1.5 ± 10% mm |
| Operating Distance | 0–1.2 mm |
| Increased Sensing Range | Yes |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 30 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 316L / 1.4404 |
| Sensing Face Material | LCP, black |
| LED Window Material | PPSU |
| Switching Frequency | 3000 Hz |
| Permanent Switching Current | 100 mA |
| Maximum Voltage Drop | 2.5 V |
| Hysteresis | < 15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Output Status Indication | 4 × yellow LED |
| Protection Rating | IP68 |
| Protection Class | III |
| Ambient Temperature | -25 °C to +70 °C |
| EMC Standard | EN 61000-4-2 / EN 61000-4-3 / EN 61000-4-4 / EN 61000-4-6 / EN 55011 Class B |
| MTTF | 1465 years |
| UL Approval | A017 / E174191 |
| Weight | Approx. 13.2 g |
| Tightening Torque | A = 5 mm: 3 Nm; B = 5 Nm |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, high-speed machine control, metal detection, position sensing, conveyor systems, assembly machinery and factory automation |
