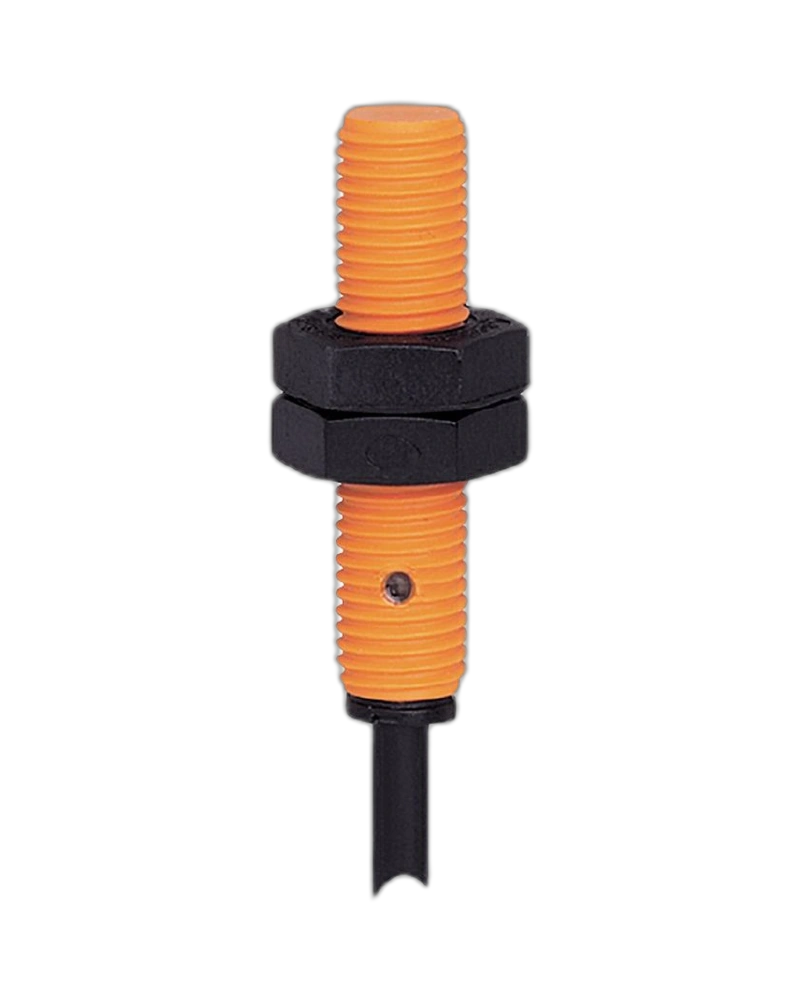

The IE5414 IEC3002-BNKG/0,215M/MOLEX inductive sensor by IFM is engineered for precise and dependable non-contact detection of metallic objects in industrial automation, machine control and production environments. Its compact threaded construction makes it suitable for applications where reliable proximity sensing is required within limited installation spaces.

The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This non-contact operating principle helps reduce mechanical wear and makes the IE5414 suitable for repeated detection tasks involving machine components, workpieces, positioning mechanisms and automated production equipment.

The IE5414 provides a 2 mm nominal sensing range, with a real sensing range of 2 ± 10% mm and a guaranteed sensing range of 0–1.6 mm. This sensing capability allows reliable detection of suitable metallic targets within the sensor's specified detection area.

The sensor features a DC NPN electrical design with a normally-closed output, allowing it to provide a switching signal to compatible PLCs, controllers and industrial automation systems. It operates from a 10–36 V DC supply and supports a switching frequency of up to 800 Hz, making it suitable for repetitive sensing applications.

The IE5414 features a compact M8 × 1 threaded housing with an overall length of 35 mm. Its non-flush mounting configuration allows flexible installation in suitable machine structures and automation equipment.

The sensor provides IP67 protection, helping protect it against dust and water ingress under specified operating conditions. Its -25 °C to +80 °C ambient temperature range supports operation across a wide range of industrial environments.

The IE5414 uses a short 0.215 m cable connection with a MOLEX connector, providing a compact connection arrangement for suitable machine and automation installations. Four yellow LEDs provide clear switching-status indication for installation, commissioning and maintenance.

For companies looking for Industrial Automation UAE, Industrial Automation Supplier in UAE, Industrial Sensors Supplier UAE and Automation Products Supplier UAE, the IE5414 provides a compact and dependable inductive sensing solution for industrial equipment and factory automation.

Key Features

IFM IE5414 inductive proximity sensor

Model: IEC3002-BNKG/0,215M/MOLEX

2 mm nominal sensing range

Real sensing range: 2 ± 10% mm

Guaranteed sensing range: 0–1.6 mm

DC NPN electrical design

Normally-closed output

10–36 V DC operating voltage

800 Hz switching frequency

200 mA permanent switching current

M8 × 1 threaded housing

35 mm overall length

Non-flush mounting

0.215 m cable connection

MOLEX connector

Four yellow LED switching-status indicators

IP67 protection rating

-25 °C to +80 °C ambient temperature

Reverse-polarity protection

Short-circuit protection

Overload protection

Compact construction for industrial machinery

Design & Functionality

The IE5414 operates using an inductive sensing principle, detecting metallic objects without direct physical contact. When a suitable metal target enters the sensor's sensing zone, the sensor changes the state of its NPN normally-closed output.

This non-contact detection method is suitable for applications where components must be detected repeatedly without mechanical contact. It can provide reliable feedback for machine positioning, component presence detection, automated counting and production-line control.

The compact M8 × 1 threaded construction and 35 mm housing make the sensor suitable for machine assemblies where installation space is limited. Its non-flush mounting design allows it to be positioned in compatible machine structures according to the application's installation requirements.

Sensing Performance

The IE5414 provides a 2 mm nominal sensing range with a real sensing range of 2 ± 10% mm and a guaranteed sensing range of 0–1.6 mm.

The sensor's correction factors vary according to the material of the detected target. Steel provides the reference correction factor, while stainless steel, brass, aluminium and copper have lower correction factors.

This should be considered when selecting the sensor for applications involving different metallic target materials.

NPN Normally-Closed Output

The IE5414 uses a DC NPN normally-closed output, making it suitable for compatible industrial control architectures.

The output can provide switching feedback to PLCs, automation controllers and other compatible control equipment when a metallic target is detected.

Typical functions include:

Machine position detection

Metal component detection

Object presence monitoring

Conveyor monitoring

Automated counting

Production-line control

Machine status feedback

Compact M8 Design

The IE5414 has an M8 × 1 threaded body with a 35 mm overall length, providing a compact sensing solution for industrial machinery and factory automation equipment.

Its compact construction can simplify sensor integration where larger proximity sensors may be difficult to install. The non-flush mounting configuration provides flexibility for suitable mounting arrangements.

Industrial Automation Applications

The IE5414 can be integrated into Industrial Automation Solutions in UAE for a wide range of machine and factory applications.

Machine Position Detection

The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanisms.

Metal Component Detection

It can identify the presence or absence of metallic workpieces and components during manufacturing and assembly operations.

Conveyor Systems

The IE5414 can detect metallic objects travelling through automated conveyor systems and provide switching feedback to the control system.

Assembly Machinery

The sensor can confirm the presence or position of metallic components during automated assembly processes.

Material Handling

It can provide proximity feedback in automated material handling and transfer equipment.

Production Machinery

The sensor can support machine-control functions where dependable non-contact detection of metallic objects is required.

Industrial Automation Integration

The IE5414 can operate as part of larger Industrial Automation Systems in UAE, providing proximity feedback to compatible PLCs and industrial controllers.

It can be integrated alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, switches, drives and other industrial sensors.

For Industrial Automation Suppliers UAE, machine builders and system integrators, the sensor provides a compact sensing component for automation equipment and industrial machinery.

Protection & Reliability

The IE5414 provides an IP67 protection rating, helping protect the sensor from dust and water ingress under specified operating conditions.

Its -25 °C to +80 °C ambient temperature range allows use in a broad range of industrial machinery and factory environments.

The sensor also provides reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.

Cable & MOLEX Connection

The IE5414 uses a 0.215 m cable connection with a MOLEX connector, providing a compact connection solution for suitable automation installations.

The short cable arrangement can be useful in applications where the sensor is installed close to the machine's connection point. Four yellow LEDs provide visual switching-status indication to assist technicians during installation and maintenance.

Operational Advantages

Compact M8 × 1 threaded construction

35 mm overall length

2 mm sensing range

Reliable non-contact metal detection

NPN normally-closed output

10–36 V DC operation

800 Hz switching frequency

200 mA permanent switching current

0.215 m cable with MOLEX connector

IP67 protection

-25 °C to +80 °C operating temperature

Four yellow LED status indicators

Reverse-polarity protection

Short-circuit protection

Overload protection

Suitable for industrial automation and machine control

The IE5414 IEC3002-BNKG/0,215M/MOLEX is a compact and dependable IFM inductive proximity sensor designed for non-contact metallic object detection. Its 2 mm sensing range, NPN normally-closed output, M8 × 1 construction, MOLEX connection and IP67 protection make it suitable for machine control, position detection, conveyors, assembly machinery and factory automation applications.

For businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Equipment UAE, the IE5414 provides a practical sensing solution for compatible industrial automation systems.
