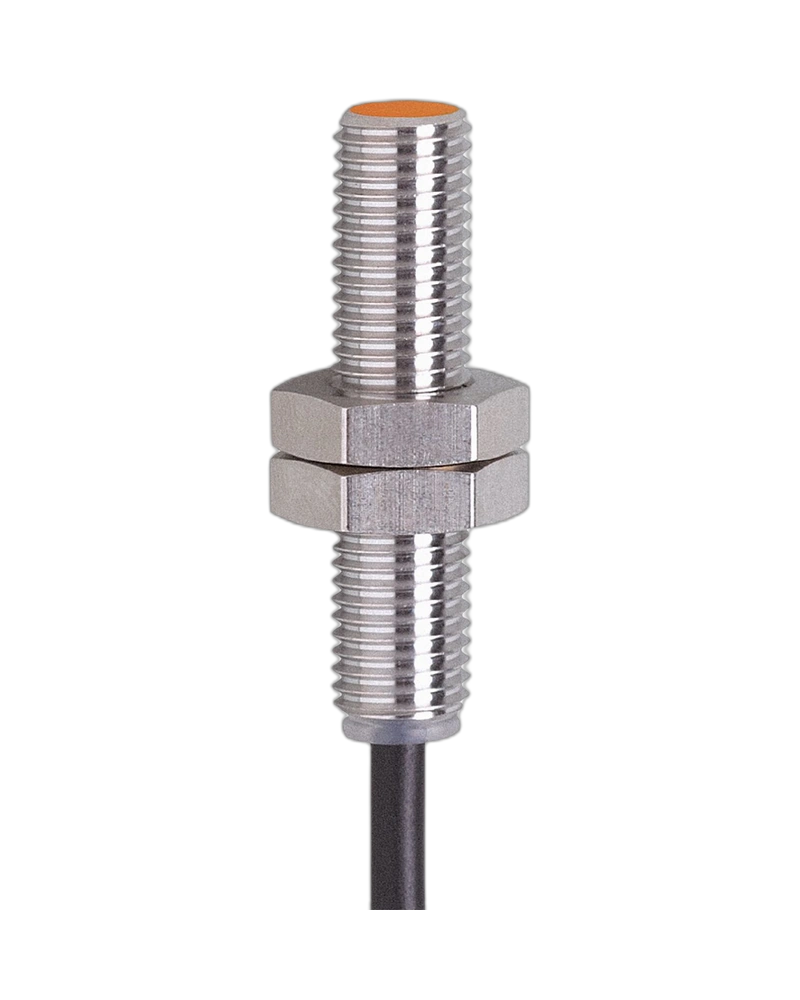

The IE5413 IEB2001-BROG/3M/BH inductive sensor by IFM is a compact industrial proximity sensor designed for reliable non-contact detection of metallic objects in automation and machinery applications. With a 1 mm sensing range, PNP/NPN output, 10–36 V DC operation, 3 m PUR cable and IP67 protection, it is well suited for space-restricted installations and demanding industrial environments. It is an excellent choice for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and reliable Sensor Supplier UAE solutions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5413 IEB2001-BROG/3M/BH inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machine control and factory production applications. Its particularly short housing makes it suitable for installations where mounting space is restricted while reliable metal detection and high-speed switching performance are required.
The sensor operates using inductive proximity sensing technology, allowing metallic objects to be detected without physical contact. This non-contact principle makes the IE5413 suitable for repeated detection tasks involving machine components, workpieces, moving parts and other metallic targets in automated equipment.
The IE5413 provides a 1 mm nominal sensing range, with a real sensing range of 1 ± 10% mm and a working distance of 0–0.8 mm according to the available product documentation. Its flush-mountable design allows the sensor to be integrated neatly into compatible machine structures.
The sensor features a DC PNP/NPN electrical design with a normally-closed output function. It operates from a 10–36 V DC supply and supports a high switching frequency, making it suitable for fast repetitive detection in industrial machinery and automation systems.
A major advantage of the IE5413 is its particularly short M8 × 1 threaded housing, with an overall length of approximately 35 mm. This compact construction makes it suitable for machine structures and automation equipment where conventional sensors may be difficult to install because of limited available space.
The sensor features a robust metal housing made from brass with white-bronze coating and PBT components, supporting dependable operation in industrial environments. Its IP67 protection rating helps protect the sensor against dust and water ingress under suitable operating conditions.
The IE5413 is supplied with a 3 m PUR cable, providing flexible installation and convenient connection to compatible control equipment. A yellow LED provides switching-status indication, helping technicians monitor sensor operation during installation, commissioning and maintenance.
IFM IE5413 inductive proximity sensor
Model: IEB2001-BROG/3M/BH
1 mm nominal sensing range
Real sensing range: 1 ± 10%
Working distance: 0–0.8 mm
DC PNP/NPN electrical design
Normally-closed output function
10–36 V DC operating voltage
Up to 200 mA switching current
High switching frequency
M8 × 1 threaded housing
Approximately 35 mm overall length
Particularly short housing for restricted spaces
Flush-mountable installation
Robust brass and white-bronze-coated construction
3 m PUR cable connection
Halogen-free cable design
Yellow LED switching-status indication
IP67 protection rating
Ambient temperature range: -25 °C to +80 °C
Suitable for industrial automation and machine control
The IE5413 uses inductive sensing technology to detect metallic targets without direct physical contact. When a suitable metal object enters the sensing zone, the sensor changes its output state according to its normally-closed switching function.
Its M8 × 1 threaded construction and particularly short 35 mm housing make the sensor suitable for machinery and automation equipment where installation space is limited. The flush-mountable construction allows clean integration into compatible metal machine structures.
The PNP/NPN electrical configuration provides flexibility for compatible industrial control architectures, while the 10–36 V DC operating range supports integration with commonly used industrial control systems.
The IE5413 is designed with a particularly short housing for applications where conventional proximity sensors may not fit.
Its M8 × 1 threaded body and approximately 35 mm overall length allow installation in compact machine assemblies, fixtures and automation equipment. This makes it a practical component for machine builders and Industrial automation companies in UAE working with restricted installation areas.
The sensor is designed for repetitive industrial detection applications and provides a high switching frequency. This allows it to monitor rapidly moving metallic components and provide reliable switching signals to compatible automation controllers.
It can therefore be used for applications involving frequent object detection, machine position feedback and automated production processes.
The IE5413 can be integrated into a wide range of Industrial Automation UAE applications.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, moving mechanisms and fixtures.
Metal Component Detection
It can identify the presence or absence of metallic workpieces and components during manufacturing and assembly processes.
Conveyor Monitoring
The IE5413 can detect metallic objects moving through defined points on conveyor and material-handling systems.
Machine Control
Its switching output can provide proximity feedback to compatible PLCs and industrial controllers.
Counting Applications
The sensor can detect individual metallic objects passing through a sensing point for automated counting and production monitoring.
Assembly Equipment
It can confirm the presence or position of metallic components during automated assembly operations.
The IE5413 is designed for industrial environments and provides an IP67 protection rating. The sensor is specified for an ambient temperature range of -25 °C to +80 °C, providing flexibility for a broad range of machinery and factory applications.
The metal housing and industrial construction make it suitable for machine installations where compact size and reliable proximity detection are important.
The IE5413 is supplied with a 3 m PUR cable with a two-core, 0.14 mm² configuration. The cable is halogen-free and provides a practical connection method for industrial installations.
A yellow LED provides visual switching-status indication, helping technicians identify the sensor's operating condition during installation, testing and maintenance.
For customers searching for an Industrial Sensors Supplier UAE, the IE5413 provides a compact inductive sensing solution for metal detection, machine automation and factory applications.
It is also relevant for businesses looking for Proximity Sensors Supplier UAE, Sensor Supplier UAE, Automation Products Supplier UAE and Industrial Automation Components UAE.
The sensor can be used for new machine construction, automation projects and suitable replacement applications where a compact M8 inductive proximity sensor with cable connection is required.
The IE5413 can support Industrial automation solutions in UAE across manufacturing, machine building, packaging, material handling, assembly and factory production environments.
For Industrial Automation Suppliers UAE, this compact sensor can form part of a broader range of Factory Automation Components and Industrial Automation Equipment UAE.
It can also be incorporated into Industrial automation systems in UAE, working alongside PLCs, control panels, actuators, drives and other industrial sensors.
Compact M8 × 1 housing for restricted installation spaces
1 mm sensing range for reliable metal detection
Non-contact inductive detection
PNP/NPN electrical design
Normally-closed switching function
10–36 V DC operating voltage
High switching frequency
Flush-mountable construction
Robust metal housing
IP67 protection
3 m PUR cable
Yellow LED switching-status indication
Suitable for machine automation and factory applications
The IE5413 IEB2001-BROG/3M/BH is a compact and dependable IFM inductive proximity sensor designed for non-contact detection of metallic objects. Its short M8 × 1 housing, 1 mm sensing range, PNP/NPN output, 3 m PUR cable and IP67 protection make it a practical solution for space-restricted machinery, machine control and industrial automation applications.
| Feature | Specification |
|---|---|
| Product Code | IE5413 |
| Manufacturer | IFM |
| Model / Part Number | IEB2001-BROG/3M/BH |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP/NPN |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–36 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 1 mm |
| Real Sensing Range (Sr) | 1 ± 10% mm |
| Guaranteed Sensing Range | 0–0.81 mm |
| Operating Distance | 0–0.8 mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | Approx. 0.7 |
| Correction Factor – Brass | Approx. 0.4 |
| Correction Factor – Aluminium | Approx. 0.3 |
| Correction Factor – Copper | Approx. 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Sensing Face / Additional Material | PBT |
| Switching Frequency | 2000 Hz |
| Switching Current | 200 mA |
| Minimum Load Current | 4 mA |
| Residual Current | < 0.8 mA |
| Maximum Voltage Drop | < 2.6 V |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Connection | Cable |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Cross-Section | 2 × 0.14 mm² |
| Cable Construction | Halogen-free |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC – ESD | EN 61000-4-2, 4 kV CD / 8 kV AD |
| EMC – RF Radiated | EN 61000-4-3, 10 V/m |
| EMC – Burst | EN 61000-4-4, 2 kV |
| EMC – Conducted RF | EN 61000-4-6, 10 V |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 5707 years |
| Weight | Approx. 57.1 g |
| Tightening Torque | A = 5 mm: 1 Nm; B: 2 Nm |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems and factory automation |
