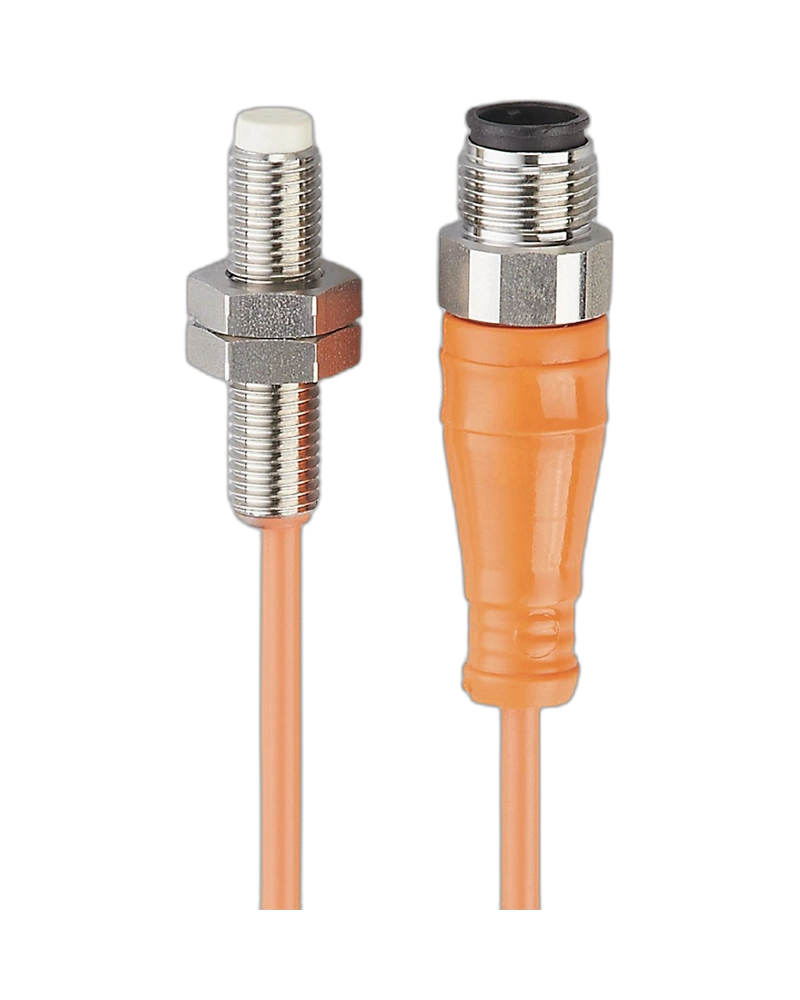

The IE5406 IEB3003-BPKG/V4A/5M/US inductive sensor by IFM is a compact industrial proximity sensor designed for reliable non-contact detection of metallic objects in automation, machinery and production applications. With a 3 mm sensing range, PNP normally-open output, 10–36 V DC operation, 300 Hz switching frequency, robust stainless-steel housing and 5 m PVC cable with M12 connector, it is well suited for installations where space is restricted and dependable metal detection is required. It is an excellent choice for businesses seeking Industrial Sensors, Proximity Sensors Supplier UAE and reliable Industrial Automation Components UAE.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5406 IEB3003-BPKG/V4A/5M/US inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machinery, material handling and production environments. Its particularly short M8 × 1 housing with a 35 mm overall length makes it suitable for machine installations where available space is restricted.
The sensor operates using inductive proximity technology, allowing metallic targets to be detected without physical contact. This provides reliable switching for applications such as machine position monitoring, component presence detection, conveyor systems, automated counting and production equipment.
The IE5406 provides a 3 mm nominal sensing range, with a real sensing range of 3 ± 10% mm and an operating distance of 0–2.4 mm. Its non-flush mounting design provides flexibility for suitable machine and fixture installations.
IFM IE5406 inductive proximity sensor
Model: IEB3003-BPKG/V4A/5M/US
3 mm nominal sensing range
Real sensing range: 3 ± 10%
Operating distance: 0–2.4 mm
PNP electrical design
Normally-open output
10–36 V DC operating voltage
300 Hz switching frequency
200 mA permanent switching current
Short M8 × 1 threaded housing
35 mm overall length
Non-flush mountable design
Robust stainless-steel 316Ti / 1.4571 housing
PBT sensing face
5 m PVC cable
M12 A-coded connector
IP67 protection rating
Red LED switching-status indication
Reverse-polarity protection
Short-circuit protection
Overload protection
The IE5406 uses inductive sensing technology to detect metallic objects without direct physical contact. When a suitable metal target enters the sensor's detection zone, the PNP normally-open switching output changes state and provides a signal to a compatible PLC, controller or automation system.
Its compact M8 × 1 threaded construction and 35 mm length are particularly suitable for machinery and equipment with limited installation space. The sensor is designed for non-flush mounting and can be integrated into appropriate machine structures, fixtures and automation assemblies.
The stainless-steel housing provides a robust construction for demanding industrial environments, while the PBT sensing face supports reliable operation at the sensing point.
The IE5406 provides a 3 mm sensing range with a real sensing range of 3 ± 10% mm. The operating distance is specified as 0–2.4 mm.
Correction factors vary according to the material being detected:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
These correction factors should be considered when determining the effective sensing distance for different metallic targets.
The sensor features a DC PNP normally-open output, making it suitable for compatible industrial control systems and PLC inputs.
When a metallic target is detected, the switching output changes state to provide reliable object-detection feedback. This makes the IE5406 suitable for machine position detection, metal component detection, object presence monitoring and automated production processes.
The particularly short M8 × 1 / 35 mm housing makes the IE5406 suitable for applications where conventional longer proximity sensors may be difficult to install.
Its compact construction can help machine builders and Industrial automation companies UAE integrate proximity detection into compact machinery, fixtures, production equipment and automated mechanisms.
The IE5406 is supplied with a 5 m PVC cable and an M12 A-coded connector. The cable uses a 3 × 0.14 mm² configuration, providing a practical connection arrangement for industrial automation installations.
The integrated cable and connector arrangement can simplify sensor installation where a longer connection length is required.
The IE5406 can be incorporated into Industrial Automation UAE applications where reliable detection of metallic objects is required.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanisms.
Metal Component Detection
It can detect the presence or absence of metal workpieces and components during automated manufacturing and assembly operations.
Conveyor Monitoring
The sensor can provide switching feedback when metallic objects pass through a defined sensing position on conveyor systems.
Automated Counting
Repeated detection of metallic objects can be used for counting and production monitoring applications.
Assembly Machinery
The IE5406 can confirm the presence or position of metal components during automated assembly processes.
Material Handling Equipment
It can provide proximity feedback in automated transfer, handling and positioning equipment.
The IE5406 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
The sensor operates within an ambient temperature range of 0 °C to +70 °C. It also incorporates reverse-polarity, short-circuit and overload protection for dependable electrical operation when installed according to the manufacturer's specifications.
The stainless-steel construction makes it suitable for demanding industrial environments where a robust sensor housing is required.
A red LED provides switching-status indication, allowing technicians to identify the sensor's operating state during installation, commissioning and maintenance.
This visual feedback can simplify troubleshooting and help confirm sensor response during machine setup.
The IE5406 can operate as part of Industrial Automation Systems in UAE, providing proximity feedback to PLCs, controllers and compatible automation equipment.
It can be integrated with other Industrial Automation Equipment UAE, including control systems, actuators, drives, switches and additional industrial sensors.
For an Industrial Automation Supplier in UAE, this compact IFM inductive sensor provides a practical solution for machine builders, system integrators and manufacturing facilities requiring dependable metallic object detection.
Compact 35 mm housing for restricted installation spaces
3 mm sensing range for reliable metal detection
Non-contact inductive detection
PNP normally-open switching output
10–36 V DC operating voltage
300 Hz switching frequency
Robust stainless-steel housing
5 m PVC cable with M12 connector
IP67 protection
Red LED switching-status indication
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for machinery and factory automation
The IE5406 IEB3003-BPKG/V4A/5M/US is a compact and robust IFM inductive proximity sensor designed for reliable metal detection in industrial automation. Its 3 mm sensing range, PNP normally-open output, stainless-steel M8 × 1 housing, 5 m cable, M12 connector and IP67 protection make it suitable for machinery, production equipment, conveyors and other Industrial Automation Solutions in UAE.
| Specification | Details |
|---|---|
| Product Code | IE5406 |
| Manufacturer | IFM |
| Model / Part Number | IEB3003-BPKG/V4A/5M/US |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | < 15 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Operating Distance | 0–2.4 mm |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Non-flush mountable |
| Housing Material | Stainless steel 316Ti / 1.4571 |
| Sensing Face Material | PBT |
| Switching Frequency | 300 Hz |
| Permanent Current Rating | 200 mA |
| Maximum Voltage Drop | 2.5 V |
| Short-Circuit Protection | Yes |
| Short-Circuit Protection Type | Pulsed |
| Overload Protection | Yes |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Cable Length | 5 m |
| Cable Material | PVC |
| Cable Configuration | 3 × 0.14 mm² |
| Output Status Indication | 1 × Red LED |
| Protection Rating | IP67 |
| Ambient Temperature | 0 °C to +70 °C |
| MTTF | Approx. 2819 years |
| Weight | Approx. 108 g |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, conveyor monitoring, position sensing and factory automation |
