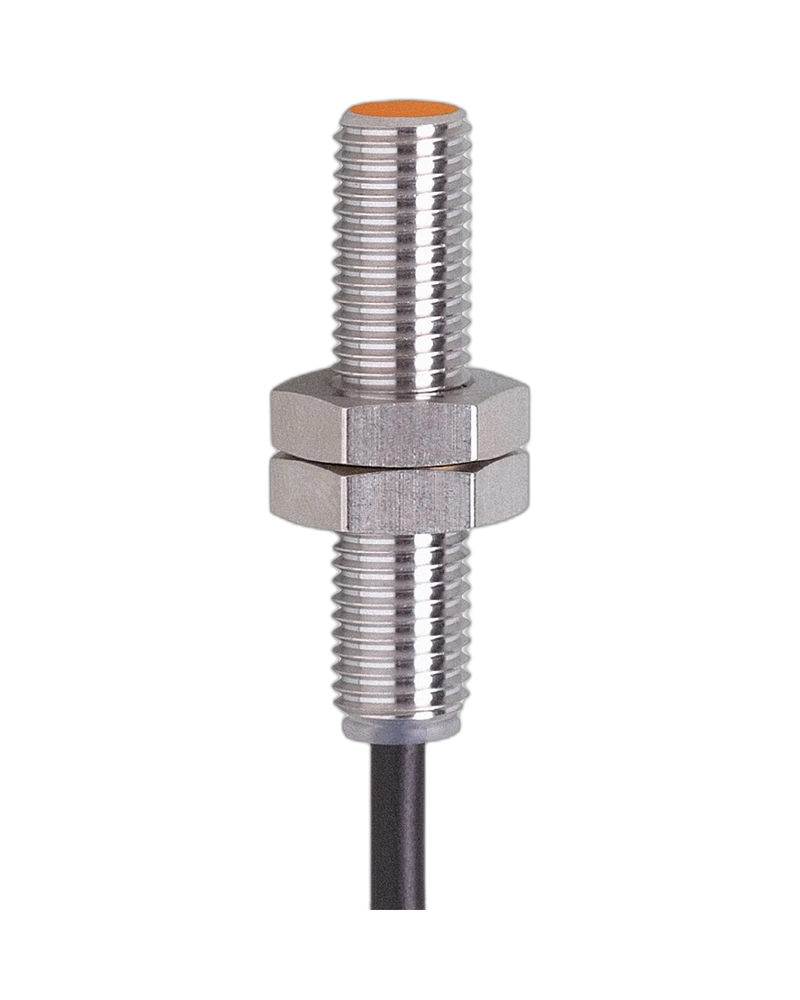

The IE5399 IEB3002BBPKG/V4A/8M inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. With a 2 mm sensing range, PNP normally-open output, 10–30 V DC operation, 1500 Hz switching frequency, stainless-steel M8 × 1 housing and an 8 m PUR cable, it provides dependable sensing performance in demanding industrial environments. Its particularly short 27 mm housing and flush-mountable design make it suitable for installations where space is restricted. It is an excellent choice for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and reliable Industrial Automation Equipment UAE.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5399 IEB3002BBPKG/V4A/8M inductive sensor by IFM is engineered for precise and reliable non-contact detection of metallic objects in industrial automation, machinery, production equipment and factory-control applications. Its compact construction, stainless-steel housing and extended 8 m PUR cable make it a practical sensing solution for installations requiring dependable signal transmission and robust mechanical performance.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. When a suitable metal object enters the sensing area, the sensor changes its switching output, allowing a connected PLC, controller or automation system to monitor object presence, position or movement.
The IE5399 provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.62 mm. This makes it suitable for close-range metal detection tasks where consistent and repeatable switching is required.
The sensor features a DC PNP electrical design with a normally-open output. It operates from a 10–30 V DC supply and provides a high switching frequency of up to 1500 Hz, supporting fast and repetitive detection in automated machinery and production systems.
IFM IE5399 inductive proximity sensor
Model: IEB3002BBPKG/V4A/8M
2 mm nominal sensing range
Real sensing range: 2 ± 10%
Operating distance: 0–1.62 mm
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
1500 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
27 mm overall housing length
Flush-mountable construction
Stainless-steel housing
LCP sensing face
8 m PUR cable
3 × 0.14 mm² cable construction
IP67 protection rating
Yellow LED switching-status indication
Reverse-polarity protection
Short-circuit protection
Overload protection
Particularly short housing for restricted installation spaces
The IE5399 uses an M8 × 1 threaded housing with an overall length of 27 mm, providing a compact solution for machinery and automation installations where available mounting space is limited. Its particularly short housing helps simplify sensor positioning in compact machine structures and equipment.
The housing is manufactured from stainless steel, while the sensing face is made from LCP. This construction provides a robust mechanical design suitable for industrial applications where the sensor may be exposed to demanding operating conditions.
The sensor is flush mountable, allowing it to be installed neatly into suitable metal machine structures while maintaining the required sensing performance.
The IE5399 detects metallic objects through inductive sensing without requiring physical contact with the target. This makes it suitable for repeated detection tasks involving machine components, workpieces, fixtures and moving metal parts.
Its 2 mm sensing range provides close-range detection, while the specified correction factors allow the sensor to be considered for different metallic target materials.
Steel: 1
Stainless steel: approximately 0.7
Brass: approximately 0.5
Aluminium: approximately 0.4
Copper: approximately 0.3
These correction factors should be considered when selecting the sensor for applications involving different target materials.
The IE5399 uses a PNP normally-open switching output, making it suitable for compatible PLCs and industrial control systems.
When a suitable metallic target enters the sensing zone, the sensor switches its output and provides a detection signal to the connected automation controller.
This configuration can be used for:
Metal object detection
Machine position sensing
Component presence detection
Conveyor monitoring
Automated counting
Production-line monitoring
Machine status feedback
With a switching frequency of up to 1500 Hz, the IE5399 is suitable for fast and repetitive sensing operations. This allows the sensor to detect rapidly moving metallic targets in suitable industrial automation applications.
The high switching capability can be useful in production machinery, material handling systems, automated assembly equipment and high-speed detection points.
The IE5399 is supplied with an 8 m PUR cable, providing additional flexibility when the sensor must be installed at a greater distance from the control cabinet or automation controller.
The cable construction is 3 × 0.14 mm², with black, brown and blue conductors for connection to the compatible control system.
The IE5399 can be incorporated into Industrial Automation UAE applications where reliable metal detection and machine feedback are required.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, actuators and mechanical assemblies.
Metal Component Detection
It can identify the presence or absence of metallic workpieces during automated manufacturing and assembly operations.
Conveyor Systems
The sensor can detect metallic objects moving through defined points on conveyor and material-handling systems.
Automated Counting
The IE5399 can provide switching signals for counting metallic components passing a sensing position.
Assembly Machinery
It can verify the presence or position of metal components during automated assembly processes.
Production Equipment
The sensor can provide reliable proximity feedback for machinery and production-line control systems.
The IE5399 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions. Its operating ambient temperature range is approximately -20 °C to +70 °C.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when correctly installed.
Its stainless-steel housing makes it a suitable choice for industrial environments requiring a robust metal sensor construction.
The IE5399 includes one yellow LED for switching-status indication. This allows technicians to visually identify the sensor's switching condition during installation, commissioning and maintenance.
The IE5399 can operate as part of larger Industrial Automation Systems in UAE, providing proximity feedback to PLCs, controllers and machine-control systems.
It can be combined with other Industrial Automation Components UAE, including PLCs, control panels, actuators, drives, switches and additional sensors.
For Industrial Automation Suppliers UAE, the IE5399 offers a compact and dependable sensing component for machine builders, system integrators and manufacturing facilities.
Compact 27 mm housing for restricted installation spaces
2 mm sensing range for close-range metal detection
PNP normally-open output
10–30 V DC operation
1500 Hz high switching frequency
Stainless-steel threaded housing
Flush-mountable installation
8 m PUR cable for flexible installation
IP67 protection
Yellow LED switching-status indication
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for machinery and factory automation
The IE5399 IEB3002BBPKG/V4A/8M is a compact and robust IFM inductive proximity sensor designed for reliable metal detection in industrial automation. Its 2 mm sensing range, PNP normally-open output, 1500 Hz switching frequency, stainless-steel M8 × 1 housing, flush-mountable design and 8 m PUR cable make it suitable for machinery, conveyors, production equipment and factory automation applications.
| Feature | Specification |
|---|---|
| Product Code | IE5399 |
| Manufacturer | IFM |
| Model / Part Number | IEB3002BBPKG/V4A/8M |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 15 mA |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.62 mm |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 27 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel |
| Sensing Face Material | LCP |
| Switching Frequency | 1500 Hz |
| Permanent Current Rating | 100 mA |
| Maximum Voltage Drop | 2.5 V |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Connection | Cable |
| Cable Length | 8 m |
| Cable Material | PUR |
| Cable Cross-Section | 3 × 0.14 mm² |
| Core Colours | BK = Black, BN = Brown, BU = Blue |
| Output Status Indication | 1 × Yellow LED |
| Protection Rating | IP67 |
| Protection Class | III |
| Ambient Temperature | -20 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| UL Approval | E174191 |
| Housing Type / Enclosure | Type 1 |
| Supply Class | Class 2 |
| Weight | Approx. 158.6 g |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, conveyor systems, metal detection, position sensing and factory automation |
