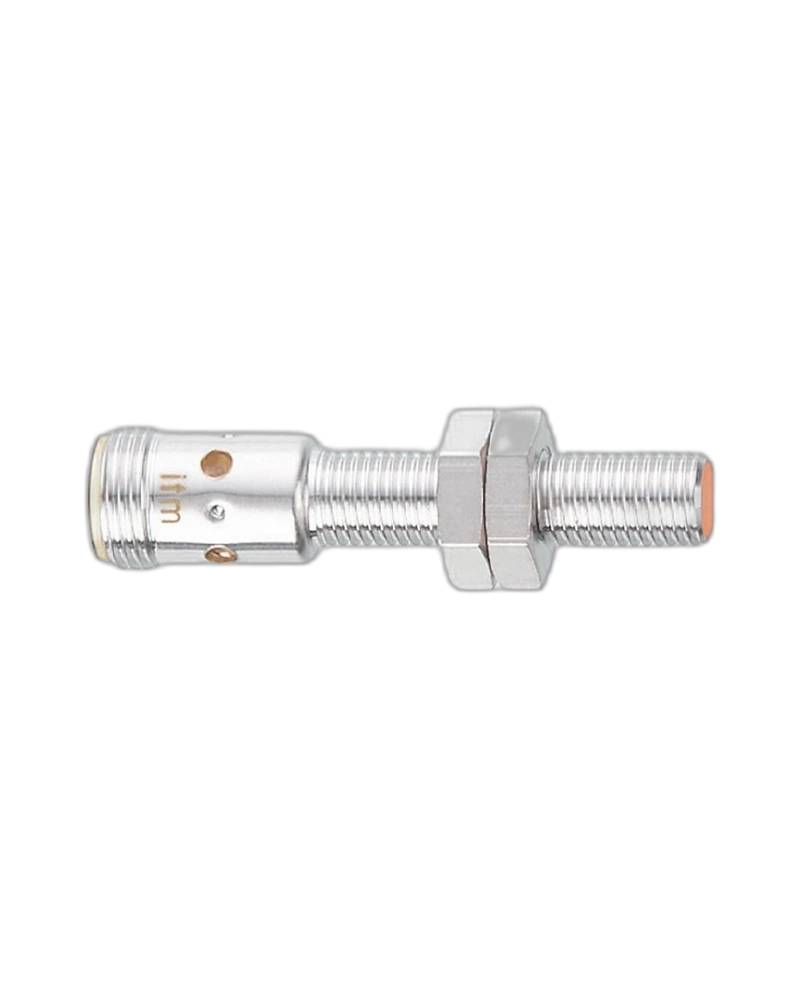

The IE5392 IEK3002BBPKG/V4A/US-104 inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machinery, production equipment and factory environments. Its compact M8 × 1 threaded design and robust stainless-steel housing make it suitable for installations where reliable proximity sensing and durable construction are required.

The IE5392 uses inductive proximity sensing technology to detect metallic targets without physical contact. This non-contact operating principle makes it suitable for repetitive detection tasks, including machine position monitoring, component presence detection, metal detection, counting and automated production processes.

The sensor provides a 2 mm nominal sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.62 mm. The increased sensing range design allows dependable detection within its specified operating zone.

Key Features

IFM IE5392 inductive proximity sensor

Model: IEK3002BBPKG/V4A/US-104

2 mm nominal sensing range

Real sensing range: 2 ± 10%

Operating distance: 0–1.62 mm

PNP electrical design

Normally-open output

10–30 V DC operating voltage

1000 Hz switching frequency

100 mA permanent switching current

M8 × 1 threaded housing

60 mm overall length

Flush-mountable construction

V4A stainless-steel housing

LCP sensing face

M12 A-coded connector

Gold-plated connector contacts

IP67 protection rating

-25 °C to +70 °C ambient temperature

Reverse-polarity protection

Short-circuit protection

Overload protection

Four yellow LED switching-status indicators

Design & Functionality

The IE5392 features a robust V4A stainless-steel housing designed for use in demanding industrial environments. Its M8 × 1 threaded construction and flush-mountable design allow the sensor to be integrated neatly into suitable machine structures.

The sensor operates with a PNP normally-open switching output. When a suitable metallic target enters the detection zone, the output switches and provides a signal to compatible PLCs, controllers and industrial automation systems.

Its M12 connector provides a practical connection arrangement for industrial sensor cabling, while the four yellow LEDs provide clear switching-status indication for installation, commissioning and maintenance.

Sensing Range & Detection

The IE5392 provides a 2 mm sensing range with a real sensing range of 2 ± 10% mm. Its operating distance is specified as 0–1.62 mm.

The correction factors are specified as 1 for steel, 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminium and 0.3 for copper. These values should be considered when selecting metallic targets for a particular application.

PNP Normally-Open Output

The IE5392 uses a PNP normally-open output, making it suitable for compatible industrial control systems.

When a metallic target is detected, the switching output changes state and provides a detection signal to the connected PLC or automation controller.

This configuration is suitable for machine position feedback, object detection, component presence monitoring, automated counting, conveyor monitoring and production-line control.

High Switching Frequency

With a switching frequency of up to 1000 Hz, the IE5392 can support repetitive and relatively fast detection tasks in automated machinery.

This high switching frequency makes the sensor suitable for applications involving rapidly moving metallic components, production equipment, material handling systems and factory automation.

Industrial Automation Applications

The IE5392 can be incorporated into a wide range of Industrial Automation UAE applications requiring dependable detection of metallic objects.

Machine Position Detection

The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanisms.

Metal Component Detection

It can detect the presence or absence of metallic workpieces and components during manufacturing and assembly processes.

Conveyor Automation

The IE5392 can monitor metallic objects moving through conveyor systems and provide switching feedback to compatible control systems.

Automated Counting

The sensor can detect individual metal objects passing a defined sensing point for automated counting and production monitoring.

Assembly Machinery

It can confirm the presence of metallic components during automated assembly and manufacturing operations.

Machine Control

The sensor can provide proximity feedback for machine-control sequences, positioning functions and automated operating cycles.

Factory Automation

Its compact design and high switching frequency make it suitable for integration into compatible factory automation equipment and machinery.

Industrial Protection & Reliability

The IE5392 is designed for industrial environments and provides an IP67 protection rating, helping protect the sensor against dust and water ingress under the specified conditions.

Its V4A stainless-steel housing provides robust mechanical construction for demanding industrial applications. The operating temperature range of -25 °C to +70 °C supports operation across a broad range of factory and machinery environments.

The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.

M8 Housing & M12 Connector

The IE5392 uses an M8 × 1 threaded housing with an overall length of approximately 60 mm. Its flush-mountable construction allows practical integration into suitable machine structures.

The sensor is equipped with an M12 A-coded connector, providing a robust connection solution for industrial automation cabling. The connector contacts are gold-plated for reliable electrical connection.

LED Switching Indication

Four yellow LEDs positioned around the sensor provide switching-status indication.

This visual indication can help technicians identify the sensor's switching condition during installation, commissioning, troubleshooting and maintenance.

Operational Advantages

2 mm sensing range

Reliable non-contact metal detection

PNP normally-open output

10–30 V DC operation

1000 Hz switching frequency

Flush-mountable M8 × 1 construction

Robust V4A stainless-steel housing

M12 A-coded connector

Gold-plated connector contacts

IP67 protection

-25 °C to +70 °C operating temperature

Four yellow LED status indicators

Reverse-polarity protection

Short-circuit protection

Overload protection

Suitable for industrial machinery and factory automation

Suitable for machine position and component detection

Industrial Sensors Supplier UAE

The IE5392 IFM inductive sensor is a practical solution for businesses searching for Industrial Sensors, Proximity Sensors, Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and Sensor Supplier UAE.

Its compact M8 × 1 construction, stainless-steel housing, 2 mm sensing range and high switching frequency make it suitable for machine builders, system integrators and manufacturing facilities requiring dependable proximity detection.

Industrial Automation Solutions UAE

For Industrial Automation Suppliers UAE and industrial automation companies UAE, the IE5392 can be integrated into compatible machine-control and factory automation systems.

It can operate alongside PLCs, control panels, actuators, drives and other Industrial Automation Components UAE to provide reliable proximity feedback for machine positioning, object detection, counting, conveyor monitoring and production processes.

The IE5392 IEK3002BBPKG/V4A/US-104 combines a 2 mm sensing range, PNP normally-open output, 1000 Hz switching frequency, flush-mountable M8 × 1 construction, V4A stainless-steel housing and IP67 protection, making it a dependable inductive sensing solution for industrial automation and machinery applications.
