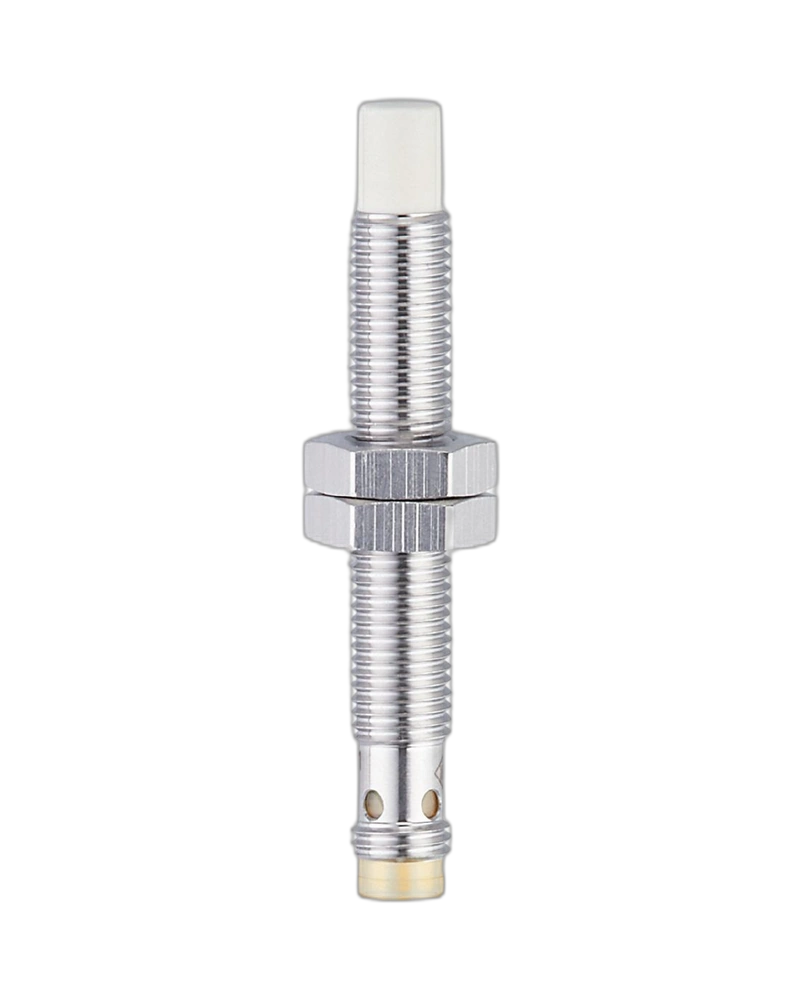

The IE5391 IEK3004-BPKG/V4A/K1/AS inductive sensor by IFM is designed for dependable non-contact detection of metallic objects in industrial automation, machinery, material handling and factory production applications. Its compact M8 × 1 threaded construction and non-flush mounting design make it suitable for machine installations where reliable proximity detection is required.

The IE5391 uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repetitive detection tasks such as machine position monitoring, component presence detection, metal detection, counting and automated production processes.

The sensor provides a 4 mm nominal sensing range, with a real sensing range of 4 ± 10% mm and an operating distance of 0–3.25 mm. Its K=1 correction factor provides the same sensing range for steel, stainless steel, brass, aluminium and copper, making it useful in applications where different metallic materials need to be detected consistently.

Key Features

IFM IE5391 inductive proximity sensor

Model: IEK3004-BPKG/V4A/K1/AS

4 mm nominal sensing range

Real sensing range: 4 ± 10%

Operating distance: 0–3.25 mm

PNP electrical design

Normally-open output

10–30 V DC operating voltage

1000 Hz switching frequency

100 mA permanent switching current

M8 × 1 threaded housing

60 mm overall length

Non-flush mounting

Stainless steel V4A housing

LCP sensing face

K=1 correction factor

Same sensing range for common metals

Magnetic-field immune

Maximum magnetic-field immunity: 300 mT

Gold-plated connector contacts

M8 connector

IP65 and IP67 protection

-25 °C to +70 °C ambient temperature

Reverse-polarity protection

Short-circuit protection

Overload protection

Design & Functionality

The IE5391 features a robust stainless-steel V4A housing designed for industrial environments. Its M8 × 1 threaded construction and non-flush mounting configuration allow practical integration into suitable machinery and automation equipment.

The sensor uses a PNP normally-open switching output. When a suitable metallic target enters the sensing zone, the sensor switches its output and provides a detection signal to compatible PLCs, controllers and industrial automation systems.

The sensor is designed for industrial, mobile, cooling and lubricating applications, making it suitable for machinery exposed to demanding operating conditions.

K=1 Correction Factor

One of the main advantages of the IE5391 is its K=1 correction factor.

The sensor provides a correction factor of 1 for steel, stainless steel, brass, aluminium and copper. This means the sensing range remains consistent across these common metallic target materials, helping simplify machine design and sensor selection.

Magnetic-Field Immunity

The IE5391 is designed with magnetic-field immunity and supports a maximum magnetic-field immunity of 300 mT.

This feature helps maintain reliable proximity detection in applications where magnetic fields may otherwise interfere with conventional inductive sensors. It is particularly useful for demanding machinery and material-handling applications.

PNP Normally-Open Output

The IE5391 uses a PNP normally-open output, making it suitable for compatible industrial control architectures.

When a metallic target is detected, the output changes state and provides a switching signal to the connected PLC or automation controller.

This makes the sensor suitable for machine position feedback, component detection, automated counting, conveyor monitoring and production-line control.

High Switching Frequency

The IE5391 supports a switching frequency of up to 1000 Hz, allowing it to detect rapidly moving metallic objects and repetitive machine movements.

This high switching capability makes the sensor suitable for fast automated machinery, production lines, material-handling equipment and factory automation applications.

Industrial Automation Applications

The IE5391 can be incorporated into a wide range of Industrial Automation UAE applications requiring reliable metallic object detection.

Machine Position Detection

The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanisms.

Metal Component Detection

It can detect the presence or absence of metal workpieces and components during manufacturing and assembly processes.

Conveyor Automation

The IE5391 can monitor metallic objects moving through conveyor systems and provide switching feedback to compatible control systems.

Counting Applications

It can detect individual metallic objects passing a sensing point for automated counting and production monitoring.

Assembly Machinery

The sensor can confirm the presence of metallic components during automated assembly and manufacturing operations.

Material Handling

Its magnetic-field immunity and robust construction make it suitable for material-handling equipment and demanding industrial environments.

Cooling and Lubricating Applications

The sensor is suitable for applications involving cooling and lubricating environments, supporting proximity detection in industrial machinery.

Industrial Protection & Reliability

The IE5391 is designed for demanding industrial environments and provides IP65 and IP67 protection, with IP67 applicable when used with the correctly screwed IFM socket.

Its stainless-steel V4A housing provides robust mechanical protection, while the operating temperature range of -25 °C to +70 °C supports use across a wide range of industrial conditions.

The sensor also incorporates reverse-polarity, short-circuit and overload protection to support dependable electrical operation when installed according to the manufacturer's requirements.

M8 Connector & Gold-Plated Contacts

The IE5391 uses an M8 connector with gold-plated contacts, providing a practical connection solution for industrial sensor cabling.

The connector arrangement supports reliable integration with compatible industrial control and automation systems.

Operational Advantages

4 mm sensing range

K=1 correction factor

Same sensing range across common metals

PNP normally-open output

10–30 V DC operation

1000 Hz switching frequency

Magnetic-field immunity up to 300 mT

Stainless-steel V4A housing

M8 × 1 threaded construction

Non-flush mounting

M8 connector

Gold-plated contacts

IP65 and IP67 protection

-25 °C to +70 °C operating temperature

Reverse-polarity protection

Short-circuit protection

Overload protection

Suitable for industrial, mobile, cooling and lubricating applications

Suitable for factory automation and industrial machinery

Industrial Sensors Supplier UAE

The IE5391 IFM inductive sensor is a practical solution for businesses searching for Industrial Sensors, Proximity Sensors, Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and Sensor Supplier UAE.

Its K=1 correction factor, magnetic-field immunity, stainless-steel V4A housing and high switching frequency make it suitable for machine builders, system integrators and manufacturing facilities requiring consistent metal detection.

Industrial Automation Solutions UAE

For Industrial Automation Suppliers UAE and Industrial automation companies UAE, the IE5391 can be integrated into compatible machine-control and factory automation systems.

It can operate alongside PLCs, control panels, actuators, drives and other Industrial Automation Components UAE to provide reliable proximity feedback for machine positioning, object detection, counting, material handling and production processes.

The IE5391 IEK3004-BPKG/V4A/K1/AS combines a 4 mm sensing range, PNP normally-open output, 1000 Hz switching frequency, K=1 correction factor, magnetic-field immunity and stainless-steel V4A construction, making it a dependable inductive sensing solution for demanding industrial automation applications.
