The IE5388 IEB3002BAPKG/0,8M/FH/AS inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. With a 2 mm sensing range, PNP normally-closed output, 10–36 V DC operation, 850 Hz switching frequency and compact M8 × 1 housing, it is well suited for machinery, assembly equipment, conveyors and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5388 IEB3002BAPKG/0,8M/FH/AS inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machinery and factory production applications. Its particularly short M8 × 1 housing makes it an excellent choice for installations where mounting space is restricted while reliable metal detection and repeatable switching performance are required.
The IE5388 uses inductive proximity sensing technology to detect metallic targets without physical contact. This non-contact detection method helps reduce mechanical wear and makes the sensor suitable for repetitive detection tasks, position monitoring, component presence detection and automated machine control.
The sensor provides a 2 mm nominal sensing range with a real sensing range of 2 ± 10% mm. Its compact construction and flush-mountable design allow the sensor to be integrated into compatible machine structures while maintaining a practical sensing position.

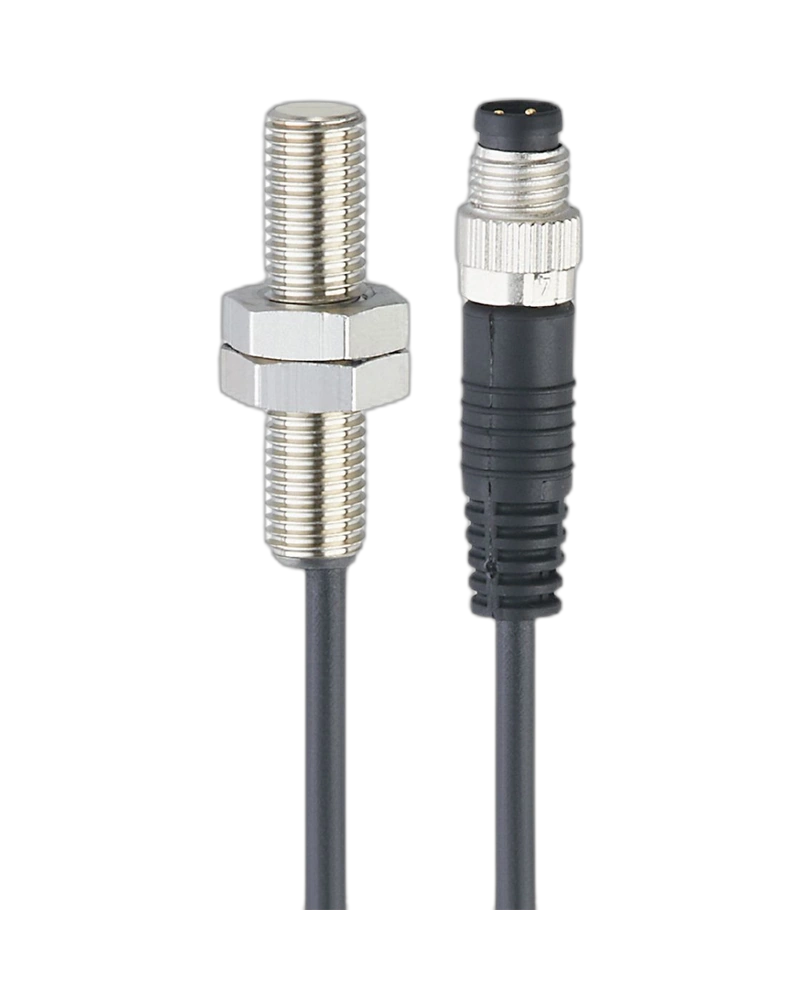

IFM IE5388 inductive proximity sensor
Model: IEB3002BAPKG/0,8M/FH/AS
2 mm nominal sensing range
Real sensing range: 2 ± 10%
PNP electrical design
Normally-closed output
10–36 V DC operating voltage
850 Hz switching frequency
200 mA permanent switching current
M8 × 1 threaded housing
35 mm overall length
Flush-mountable installation
0.8 m PUR cable
M8 connector
3 × 0.14 mm² cable
IP67 protection rating
-25 °C to +70 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching-status indication
Brass housing with white-bronze coating
LCP sensing face
The IE5388 features a compact M8 × 1 threaded housing with a 35 mm overall length, making it suitable for machine structures and automation equipment where installation space is limited. Its flush-mountable construction allows neat integration into suitable metal machine structures.
The sensor uses a PNP normally-closed switching output. When a suitable metallic target enters the sensing zone, the sensor changes its output state and provides a detection signal to compatible PLCs, controllers and automation systems.
The sensor is supplied with a 0.8 m PUR cable and M8 connector, providing a practical connection arrangement for industrial installations.
The IE5388 provides a 2 mm sensing range with a real sensing range of 2 ± 10% mm.
The correction factor depends on the metallic target material:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
These correction factors should be considered when designing applications involving different metallic target materials because sensing performance can vary according to the target material.
The IE5388 uses a PNP normally-closed output, making it suitable for compatible industrial control architectures.
The switching output can provide reliable feedback for metallic object detection, machine position monitoring, component presence detection and automated sequencing.
This configuration makes the sensor suitable for industrial automation systems where a PNP normally-closed proximity signal is required.
With a switching frequency of up to 850 Hz, the IE5388 is suitable for repetitive metallic-object detection in automated machinery and production equipment.
Its switching performance allows it to monitor moving components and workpieces at repeated intervals while providing dependable proximity feedback to the machine-control system.
The M8 × 1 threaded body and 35 mm short housing make the IE5388 particularly useful for compact machinery, fixtures and automation equipment.
Its short housing can simplify sensor placement in areas where longer proximity sensors may be difficult to install. The flush-mountable construction also provides a clean installation in compatible machine structures.
For Industrial automation companies in UAE, the compact design can provide additional flexibility when designing automated equipment and machine-control systems.
The IE5388 can be incorporated into a wide range of Industrial Automation UAE applications requiring dependable detection of metallic objects.
Machine Position Detection
The sensor can detect the position of metallic moving parts, slides, machine components and mechanical fixtures.
Metal Component Detection
It can detect the presence or absence of metal workpieces and components during manufacturing and assembly processes.
Conveyor Automation
The sensor can monitor metallic objects moving along conveyor systems and provide switching feedback to compatible control systems.
Counting Applications
The IE5388 can detect individual metallic objects passing a sensing point for automated counting and production monitoring.
Assembly Machinery
The sensor can confirm whether a metallic component is present at a particular stage of an automated assembly process.
Production Machinery
It can support machine-control functions where reliable proximity detection of metallic components is required.
The IE5388 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
The sensor is designed for an ambient temperature range of -25 °C to +70 °C, providing flexibility for a broad range of industrial machinery and factory environments.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The IE5388 uses a 0.8 m PUR cable with an M8 connector and 3 × 0.14 mm² cable construction.
The integrated cable arrangement provides a practical connection solution for machine installations and industrial automation equipment. The robust cable construction is suitable for demanding industrial environments.
A yellow LED provides switching-status indication, allowing technicians to visually confirm the sensor's operating state during installation, commissioning and maintenance.
This visual feedback can simplify troubleshooting and help maintenance personnel identify the switching condition of the sensor during machine servicing.
Compact M8 × 1 threaded design
35 mm short housing
2 mm sensing range
PNP normally-closed output
10–36 V DC operation
850 Hz switching frequency
200 mA permanent current rating
0.8 m PUR cable
M8 connector
Flush-mountable installation
IP67 protection
-25 °C to +70 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching indication
Suitable for machinery and factory automation
The IE5388 IFM inductive sensor is a practical solution for businesses searching for Industrial Sensors, Proximity Sensors, Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and Sensor Supplier UAE.
Its compact M8 construction, PNP normally-closed output and reliable inductive sensing principle make it suitable for machine builders, system integrators and manufacturing facilities requiring dependable metal detection.
For Industrial Automation Suppliers UAE and Industrial automation companies UAE, the IE5388 can be integrated into compatible machine-control and factory automation systems.
It can operate alongside PLCs, control panels, actuators, drives and other Industrial Automation Components UAE to provide reliable proximity feedback for machine positioning, object detection and production processes.
The IE5388 IEB3002BAPKG/0,8M/FH/AS combines a compact M8 × 1 housing, 2 mm sensing range, PNP normally-closed output, 850 Hz switching frequency, 0.8 m cable and IP67 protection, making it a dependable inductive sensing solution for machinery, conveyors, assembly equipment and factory automation.
| Feature | Specification |
|---|---|
| Product Code | IE5388 |
| Manufacturer | IFM |
| Model / Part Number | IEB3002BAPKG/0,8M/FH/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | < 15 mA |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.62 mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Maximum Voltage Drop | 2.5 V |
| Permanent Current Rating | 200 mA |
| Short-Time Current Rating | 200 mA |
| Switching Frequency | 850 Hz |
| Short-Circuit Protection | Yes, pulsed |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Flush Mountable |
| Housing Material | Brass, white-bronze coated |
| Sensing Face Material | LCP |
| Cable Material | PUR |
| Cable Length | 0.8 m |
| Cable Cross-Section | 3 × 0.14 mm² |
| Connector | M8 connector |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Protection Class | III |
| Ambient Temperature | -25 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| MTTF | Approx. 2826 years |
| Weight | Approx. 33 g |
| Included Accessories | 2 lock nuts |
| Typical Applications | Industrial automation, machine control, position sensing, metal detection, conveyor systems, assembly machinery and factory automation |
