The IE5387 IEBC003BASKG/0,23M inductive sensor by IFM is a compact M8 proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. With a 3 mm sensing range, PNP/NPN normally-open output, 10–30 V DC operation, 1000 Hz switching frequency and 0.23 m PVC cable, it is well suited for machine positioning, component detection, assembly equipment, conveyors and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5387 IEBC003BASKG/0,23M inductive sensor by IFM is engineered for reliable non-contact detection of metallic objects in industrial automation, machinery and factory production applications. Its compact M8 × 1 threaded housing makes it suitable for installations where space is restricted while dependable proximity detection and fast switching performance are required.
The IE5387 uses inductive proximity sensing technology to detect metallic targets without physical contact. This non-contact detection principle helps reduce mechanical wear and makes the sensor suitable for repetitive object detection, position monitoring and machine-control applications.
The sensor provides a 3 mm sensing range with an operating distance of 0–2.4 mm. Its extended sensing distance for a compact sensor design can provide practical clearance between the sensor and the detected metallic target, helping reduce the possibility of physical contact during machine operation.

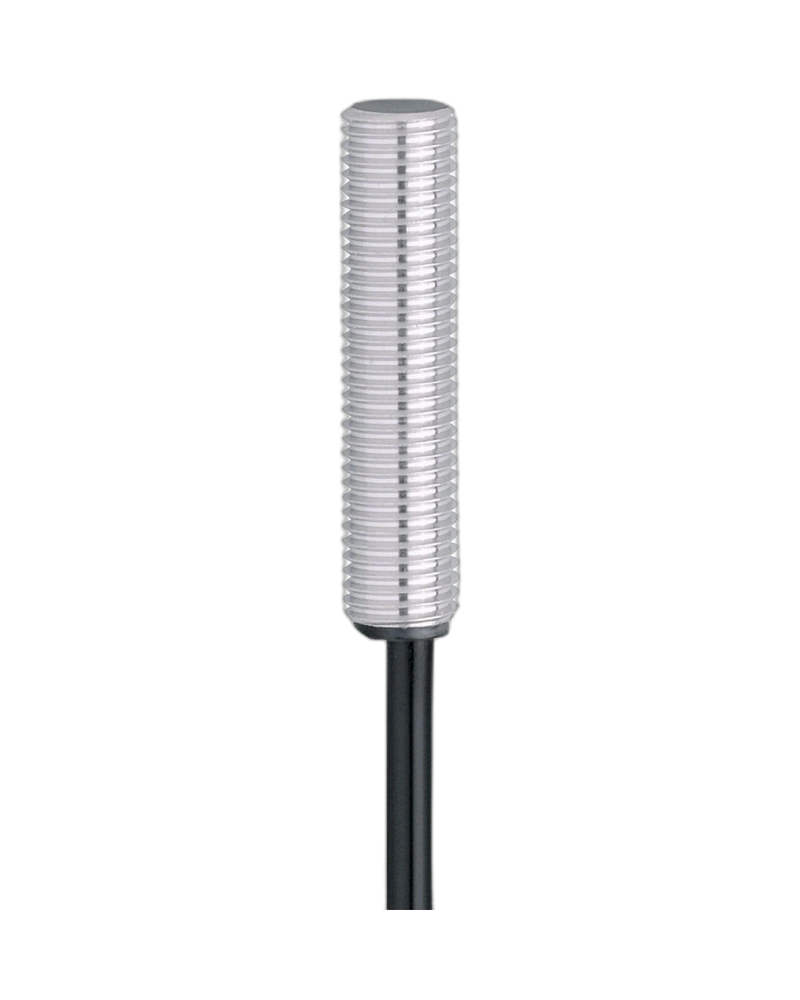

IFM IE5387 inductive proximity sensor
Model: IEBC003BASKG/0,23M
3 mm nominal sensing range
Operating distance: 0–2.4 mm
DC PNP/NPN electrical design
Normally-open output
2-wire or 3-wire operation
10–30 V DC operating voltage
1000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
37 mm overall housing length
Flush-mountable installation
0.23 m PVC cable
3 × 0.14 mm² cable
IP67 protection rating
0–70 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching-status indication
Brass housing with white-bronze coating
LCP sensing face
The IE5387 features a compact M8 × 1 threaded housing designed for flush mounting. Its compact construction makes it suitable for machine structures, fixtures and automation equipment where available installation space is limited.
The sensor supports two-wire and three-wire operation, providing flexibility for compatible industrial control configurations. Depending on the wiring arrangement, the sensor can operate as a PNP or NPN device with a normally-open switching function.
When a suitable metallic target enters the sensing zone, the inductive sensing element detects the target and switches the output. The resulting signal can be connected to compatible PLC inputs, industrial controllers and automation systems.
The IE5387 provides a nominal 3 mm sensing range and an operating distance of 0–2.4 mm.
The correction factor depends on the material being detected:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
These correction factors should be considered during application design because sensing performance can vary according to the metallic target material.
The IE5387 provides flexible PNP/NPN normally-open switching functionality. Its two-wire or three-wire configuration allows it to be integrated into compatible control architectures.
This flexibility can simplify the selection of a suitable proximity sensor for different machine-control systems and industrial automation installations.
The sensor can provide reliable switching feedback for object presence, position, counting and machine-sequencing applications.
With a switching frequency of up to 1000 Hz, the IE5387 is suitable for repetitive metallic-object detection in automated production environments.
Its fast switching capability can support applications where machine components or workpieces pass the sensing point at relatively high repetition rates.
The M8 × 1 threaded design and compact 37 mm housing make the IE5387 suitable for restricted installation spaces.
Its flush-mountable construction allows the sensor to be installed neatly into compatible metal machine structures while maintaining a practical sensing position.
This compact form factor makes it a useful component for Industrial Automation Components UAE, factory automation equipment and machine-building applications.
The IE5387 can be integrated into a wide range of Industrial Automation UAE applications requiring reliable detection of metallic objects.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving parts.
Component Presence Detection
It can confirm whether metallic workpieces or components are present during automated assembly and manufacturing processes.
Conveyor Monitoring
The sensor can detect metallic objects passing defined points on conveyor and material-handling systems.
Counting Applications
Its high switching frequency makes it suitable for detecting repeated metallic objects for counting and production monitoring.
Assembly Machinery
The IE5387 can provide position and presence feedback during automated assembly operations.
Machine Control
The normally-open output can provide switching signals to compatible PLCs and industrial controllers for machine sequencing and process control.
The IE5387 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
The sensor is designed for an ambient temperature range of 0 °C to +70 °C, making it suitable for many indoor industrial machinery and factory automation environments.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The IE5387 is supplied with a 0.23 m PVC cable with a 3 × 0.14 mm² configuration.
The compact cable arrangement provides a practical connection solution for installations where a short integrated cable is preferred. The cable uses black, brown and blue core colours for the specified wiring configuration.
A yellow LED provides switching-status indication, allowing technicians to visually confirm sensor operation during installation, commissioning and maintenance.
This visual feedback can simplify troubleshooting and help identify the sensor's switching state during machine servicing.
Compact M8 × 1 threaded design
37 mm housing length
3 mm sensing range
PNP/NPN functionality
Normally-open switching output
Two-wire or three-wire operation
10–30 V DC supply
1000 Hz switching frequency
0.23 m PVC cable
Flush-mountable installation
IP67 protection
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching indication
Suitable for machine automation and factory applications
The IE5387 IFM inductive sensor is suitable for businesses looking for Industrial Sensors, Proximity Sensors, Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and Sensor Supplier UAE.
Its compact construction and flexible PNP/NPN functionality make it suitable for machine builders, system integrators and manufacturing facilities requiring dependable proximity detection.
For Industrial automation companies in UAE and Industrial Automation Suppliers UAE, the IE5387 can provide a practical proximity-sensing component for compatible machine-control and automation systems.
It can operate alongside PLCs, control panels, actuators, drives and other Industrial Automation Components UAE to provide reliable position and object-detection feedback.
The IE5387 IEBC003BASKG/0,23M combines compact construction, flexible PNP/NPN operation, a 3 mm sensing range, high switching frequency and IP67 protection, making it a practical inductive sensing solution for machinery, assembly systems, conveyors, production equipment and factory automation.
| Feature | Specification |
|---|---|
| Product Code | IE5387 |
| Manufacturer | IFM |
| Model / Part Number | IEBC003BASKG/0,23M |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP / NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA, only in 3-wire operation |
| Sensing Range | 3 mm |
| Operating Distance | 0–2.4 mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Hysteresis | 1–15% of Sr |
| Maximum Voltage Drop | 2.8 V, only in 2-wire operation |
| Minimum Load Current | 2 mA, only in 2-wire operation |
| Maximum Leakage Current | 0.5 mA, only in 2-wire operation |
| Permanent Current Rating | 100 mA |
| Switching Frequency | 1000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 37 mm |
| Mounting | Flush Mountable |
| Housing Material | Brass, white-bronze coated |
| Sensing Face Material | LCP |
| Cable Type | PVC |
| Cable Length | 0.23 m |
| Cable Cross-Section | 3 × 0.14 mm² |
| Connection | Integrated cable |
| Cable Core Colours | BK = black, BN = brown, BU = blue |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Protection Class | III |
| Ambient Temperature | 0 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| MTTF | Approx. 1517 years |
| Weight | Approx. 22.5 g |
| Tightening Torque | A = 5 mm: 1.5 Nm; B: 2 Nm |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Machine automation, position sensing, component detection, conveyor systems, assembly machinery and factory automation |
