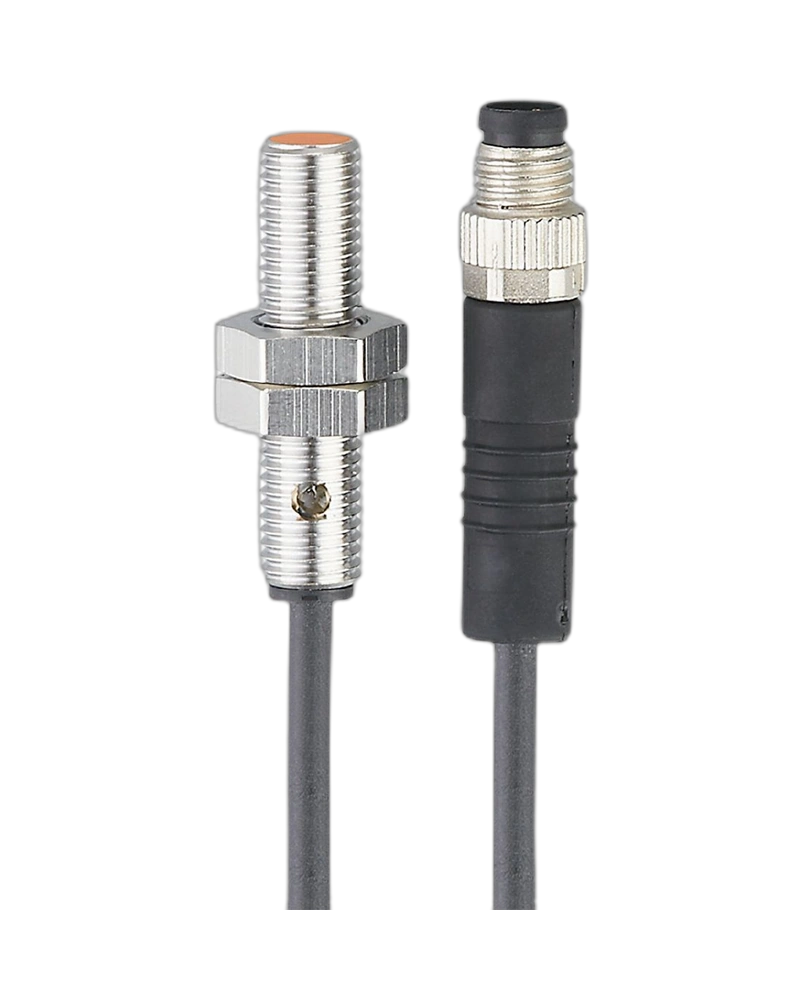

The IE5385 IEB3001-BPKG/2M/BH/AS inductive sensor by IFM is a compact M8 proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 1 mm sensing range, PNP normally-open output, 10–36 V DC operation, 750 Hz switching frequency, 2 m PUR cable and IP67 protection, making it suitable for machine positioning, component detection, conveyor systems, assembly equipment and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5385 IEB3001-BPKG/2M/BH/AS inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machinery and factory production applications. Its particularly short M8 × 1 housing makes it an excellent choice for installations where space is restricted while reliable proximity detection and fast switching performance are required.
The sensor operates using inductive proximity sensing technology, allowing metallic objects to be detected without physical contact. This non-contact principle helps minimize mechanical wear and makes the IE5385 suitable for repetitive detection tasks in automated machinery, assembly equipment, conveyors and production systems.
The IE5385 provides a 1 mm sensing range, with a real sensing range of 1 ± 10% mm and a guaranteed operating distance of 0–0.81 mm. Its compact sensing distance makes it suitable for accurately detecting appropriately positioned metallic components in machine-control and factory automation applications.
IFM IE5385 inductive proximity sensor
Model: IEB3001-BPKG/2M/BH/AS
1 mm nominal sensing range
Real sensing range: 1 ± 10% mm
Guaranteed operating distance: 0–0.81 mm
DC PNP electrical design
Normally-open output
10–36 V DC operating voltage
750 Hz switching frequency
200 mA permanent switching current
M8 × 1 threaded housing
35 mm overall length
Flush-mountable installation
2 m PUR cable
3 × 0.14 mm² cable configuration
M8 A-coded connection
IP67 protection rating
-25 °C to +80 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED output-status indication
Robust metal housing for industrial applications
The IE5385 features a compact threaded M8 × 1 housing with a length of 35 mm, making it suitable for machine structures and automation equipment where installation space is limited. Its flush-mountable construction allows the sensor to be integrated neatly into compatible metal machine structures.
When a suitable metallic target enters the sensing zone, the sensor detects the target through its inductive sensing principle and switches its PNP normally-open output. This switching signal can be connected to compatible PLCs, industrial controllers and automation systems.
The sensor is supplied with a 2 m PUR cable, providing a practical connection solution for industrial installations. Its compact construction and integrated cable make it suitable for machine builders and Industrial Automation Companies UAE requiring reliable proximity feedback.
The IE5385 has a nominal sensing range of 1 mm and a real sensing range of 1 ± 10% mm. The guaranteed operating distance is 0–0.81 mm.
The sensing performance can vary according to the metallic target material. The specified correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
These correction factors should be considered when selecting the sensor for applications involving different metallic target materials.
The IE5385 uses a DC PNP normally-open output, making it suitable for compatible industrial control architectures and PLC inputs.
When a metallic target is detected, the output changes state and provides a reliable detection signal to the connected control system.
The sensor can therefore support object presence detection, position feedback, machine sequencing and other automated control functions.
The IE5385 can be integrated into a wide range of Industrial Automation UAE applications requiring reliable non-contact detection of metallic components.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving parts.
Component Presence Detection
It can confirm the presence or absence of metallic workpieces during automated manufacturing and assembly processes.
Conveyor Monitoring
The sensor can detect metallic objects moving through defined points on conveyor and material-handling systems.
Assembly Machinery
The IE5385 can provide position or presence feedback when metallic components reach a specified location during automated assembly.
Production Equipment
Its 750 Hz switching frequency makes it suitable for repetitive detection tasks in automated machinery and production equipment.
Machine Control
The PNP normally-open output can provide switching feedback to compatible PLCs and industrial controllers.
The M8 × 1 threaded construction and 35 mm housing length make the IE5385 particularly useful for compact machinery and restricted installation areas.
Its short housing can help simplify sensor placement where larger proximity sensors may be difficult to install. The flush-mountable design also provides a clean integration into compatible machine structures.
This makes the IE5385 a practical component for Industrial Automation Components UAE, factory automation equipment and machine-building applications.
The IE5385 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under the specified operating conditions.
It is designed to operate within an ambient temperature range of -25 °C to +80 °C. The sensor also incorporates reverse-polarity, short-circuit and overload protection to support dependable electrical operation when installed according to the manufacturer's requirements.
The sensor incorporates a yellow LED output-status indicator that provides visual feedback during installation, commissioning and maintenance.
This indication can help technicians identify the sensor's switching state and simplify troubleshooting during machine servicing.
Compact M8 × 1 construction
35 mm short housing
Reliable non-contact metal detection
1 mm sensing range
PNP normally-open output
10–36 V DC operation
750 Hz switching frequency
2 m PUR cable
Flush-mountable design
IP67 protection
-25 °C to +80 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching indication
Suitable for machinery and factory automation
The IE5385 IFM inductive sensor is a suitable solution for businesses looking for Industrial Sensors, Proximity Sensors, Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and Sensor Supplier UAE.
It can be integrated into industrial machinery, production equipment, conveyor systems, assembly machines and other Industrial Automation Equipment UAE applications requiring reliable metallic-object detection.
For Industrial automation companies in UAE and Industrial Automation Suppliers UAE, the IE5385 provides a compact proximity-sensing solution for compatible machine-control and automation systems.
It can operate alongside PLCs, control panels, actuators, drives and other Industrial Automation Components UAE to provide reliable proximity feedback.
The IE5385 IEB3001-BPKG/2M/BH/AS combines compact construction, reliable inductive sensing, fast switching and industrial protection in a practical M8 sensor design. It is suitable for machine positioning, component detection, conveyor monitoring, assembly automation and factory production applications.
| Feature | Specification |
|---|---|
| Product Code | IE5385 |
| Manufacturer | IFM |
| Model / Part Number | IEB3001-BPKG/2M/BH/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 10 mA at 24 V |
| Sensing Range | 1 mm |
| Real Sensing Range (Sr) | 1 ± 10% mm |
| Guaranteed Operating Distance | 0–0.81 mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Hysteresis | 1–10% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 200 mA |
| Switching Frequency | 750 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 35 mm |
| Mounting | Flush Mountable |
| Housing Material | Brass, white-bronze coated |
| Sensing Face Material | PBT |
| Cable Type | PUR |
| Cable Length | 2 m |
| Cable Cross-Section | 3 × 0.14 mm² |
| Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Protection Class | III |
| Ambient Temperature | -25 °C to +80 °C |
| EMC | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 2804 years |
| Weight | Approx. 50.2 g |
| Tightening Torque | A = 5 mm: 1 Nm; B: 2 Nm |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Machine automation, position sensing, component detection, conveyor systems, assembly machinery and factory automation |
| Product Status | Phase-out article |
| Discontinuation Date | 31 March 2026 |
| Alternative Article | IE5336 |
