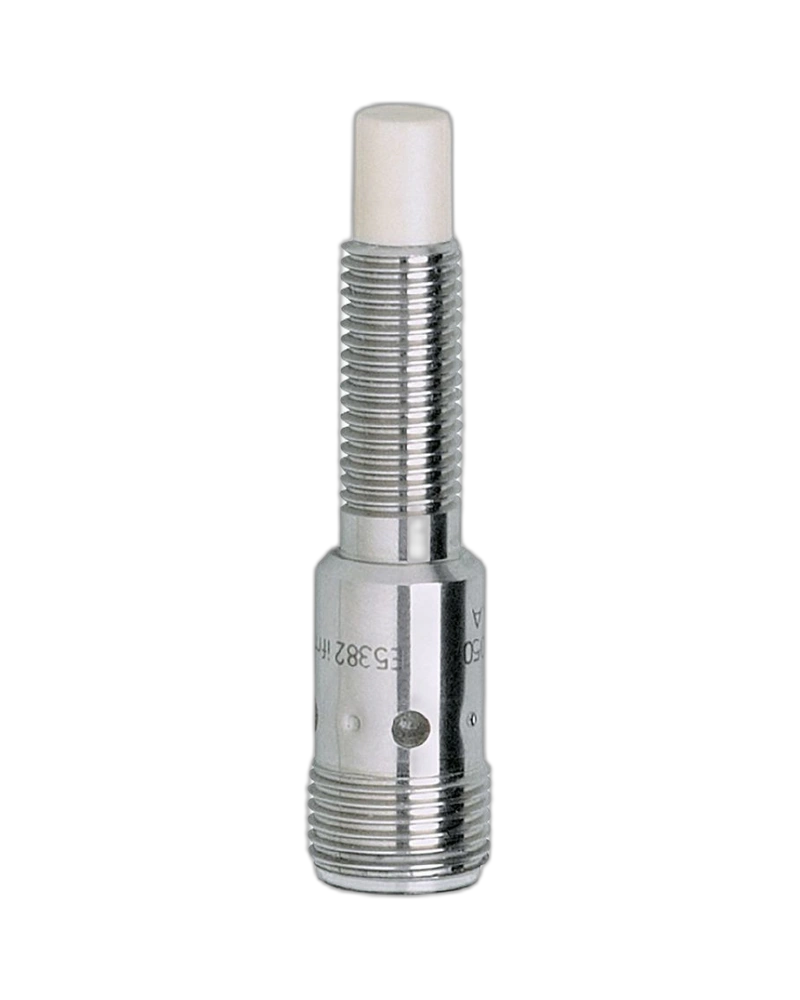

The IE5382 IEB3004-BPKG/V4A/US-104 inductive proximity sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial automation, machine building and factory production environments. Its compact M8 × 1 threaded design with a 50 mm housing length makes it suitable for applications where reliable metal detection and a durable sensor construction are required.

The sensor operates using an inductive sensing principle, detecting metallic targets without physical contact. This makes it suitable for repeatedly monitoring the presence, position or movement of metal components, workpieces and machine parts in automated processes. Its stainless-steel construction also makes it suitable for demanding industrial environments, including applications involving oils and cooling lubricants.

Key Features

• IFM IE5382 inductive proximity sensor
• Model: IEB3004-BPKG/V4A/US-104
• 4 mm nominal sensing range
• Real sensing range: 4 ± 10% mm
• Operating distance: 0–3.25 mm
• Increased sensing range
• PNP normally-open switching output
• DC 3-wire electrical design
• 10–30 V DC operating voltage
• Less than 10 mA current consumption
• Up to 700 Hz switching frequency
• 100 mA permanent switching current
• M8 × 1 threaded housing
• 50 mm overall housing length
• Non-flush mounting
• Stainless-steel 1.4404 / 316L housing
• M12 A-coded connector
• IP67 protection rating
• -25 °C to +70 °C ambient temperature
• 4 × 90° yellow LED switching-status indication
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Suitable for industrial automation and machine applications

Design & Functionality

The IE5382 uses inductive proximity sensing technology to detect metallic objects without direct physical contact. When a suitable metal target enters the sensor's sensing field, the sensor activates its PNP normally-open switching output.

The M8 × 1 threaded housing provides a compact installation format, while the 50 mm overall length allows the sensor to be integrated into suitable machine structures and automation equipment. The sensor is designed for non-flush mounting, which should be considered when planning the installation and surrounding metal components.

The stainless-steel housing is manufactured from 1.4404 / 316L stainless steel, providing a robust construction for industrial applications. The active face is made from white LCP, while the LED window uses PEI material.

Sensing Performance

The IE5382 provides a 4 mm nominal sensing range with a real sensing range of 4 ± 10% mm. Its operating distance is specified as 0–3.25 mm.

The correction factor varies according to the target material:

• Steel: 1
• Stainless steel: 0.7
• Brass: 0.5
• Aluminium: 0.5
• Copper: 0.4

These correction factors should be considered when the sensor is used to detect materials other than standard steel targets.

PNP Normally-Open Output

The IE5382 uses a PNP normally-open DC output, allowing it to provide a switching signal to compatible PLCs, controllers and industrial automation systems.

When a metallic target is detected, the output changes state to provide the required detection signal. This configuration makes the sensor suitable for applications such as:

• Metal object detection
• Machine position detection
• Component presence detection
• Conveyor monitoring
• Automated counting
• Machine sequence control
• Production-line monitoring
• Position feedback

Stainless-Steel Industrial Construction

The sensor features a robust 316L stainless-steel housing, making it a practical choice for industrial machinery and environments where durable sensor construction is important.

Its construction is also suitable for applications exposed to oils and cooling lubricants. The compact threaded design allows straightforward mechanical installation using the supplied fixing nuts.

M12 Connector & Status Indication

The IE5382 uses an M12 A-coded connector for electrical connection to compatible industrial sensor cabling.

Four yellow LEDs positioned at 90° intervals provide clear switching-status indication. This makes the sensor status easy to observe during installation, commissioning, maintenance and troubleshooting.

Industrial Automation Applications

The IE5382 can be integrated into a wide range of Industrial Automation UAE applications.

Machine Position Detection
The sensor can detect metallic machine components, slides, fixtures and moving parts to provide position feedback.

Metal Component Detection
It can detect the presence or absence of metal components during manufacturing, assembly and material handling processes.

Conveyor Systems
The sensor can detect metallic workpieces moving through automated conveyor systems and provide a switching signal to the control system.

Assembly Machinery
The IE5382 can verify the presence of metallic components at different stages of automated assembly operations.

Production Machinery
It can provide proximity feedback for machine-control sequences and automated production equipment.

Material Handling
The sensor can support automated transfer, sorting and handling equipment where reliable detection of metallic objects is required.

Protection & Reliability

The IE5382 has an IP67 protection rating, providing protection against dust ingress and water exposure under specified conditions.

It operates within an ambient temperature range of -25 °C to +70 °C, allowing use across a broad range of factory and machinery environments.

The sensor incorporates reverse-polarity, short-circuit and overload protection to support reliable electrical operation when correctly installed.

Integration into Industrial Automation Systems

The IE5382 can form part of complete Industrial Automation Systems in UAE, working alongside PLCs, control panels, actuators, drives and other Industrial Automation Components UAE.

For machine builders and Industrial automation companies in UAE, its compact M8 × 1 construction, PNP normally-open output and 4 mm sensing range provide a practical solution for non-contact metal detection.

It can also be supplied as part of an Industrial Equipment & Supplies in UAE portfolio for manufacturing, engineering and factory automation requirements.

Operational Advantages

• Reliable non-contact metal detection
• 4 mm sensing range
• PNP normally-open output
• 10–30 V DC operation
• 700 Hz switching frequency
• Durable 316L stainless-steel housing
• Compact M8 × 1 threaded construction
• M12 connector for industrial connectivity
• IP67 protection
• Clear 360° visible LED status indication
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Suitable for machinery and factory automation

The IE5382 IEB3004-BPKG/V4A/US-104 is a compact and robust IFM inductive proximity sensor designed for reliable metallic-object detection in industrial automation. Its 4 mm sensing range, PNP normally-open output, 700 Hz switching frequency, stainless-steel housing and IP67 protection make it suitable for machine control, production equipment, conveyors, assembly machinery and factory automation applications.
