The IE5381 Inductive Sensor provides reliable non-contact metal detection for compact industrial machinery. It offers a 2 mm sensing range with PNP normally open output and flush-mountable M8 construction. Its IP67 protection and compact design support reliable factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

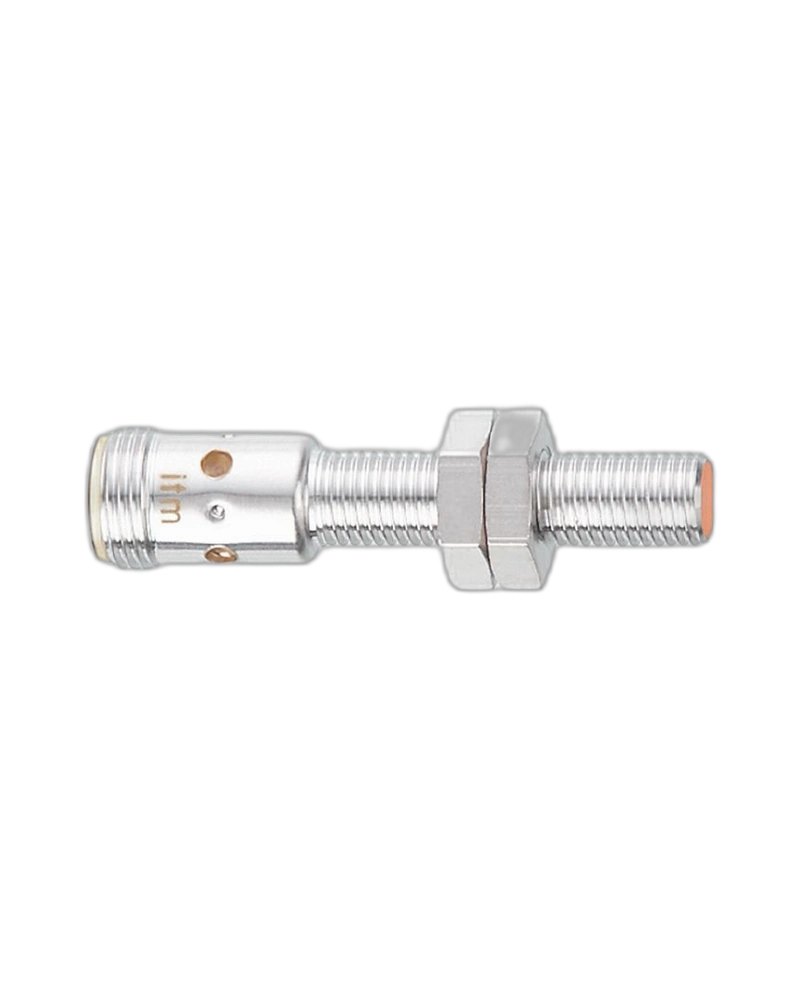

The IE5381 is a compact inductive sensor developed for accurate metal object detection and position monitoring in industrial automation systems. Its M8 threaded construction is suitable for machines where installation space is limited.
The sensor provides a 2 mm sensing range and PNP normally open output with a 1000 Hz switching frequency. It can be integrated with PLCs, controllers, and other Factory Automation Components for reliable machine monitoring.
For Industrial Automation Suppliers UAE, this sensor is suitable for assembly machinery, conveyors, packaging systems, production equipment, and industrial control applications.
Suitable for factory automation, conveyors, assembly machinery, packaging equipment, machine tools, production lines, and automated material handling systems.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5381 |
| Part Number | IEB3002BBPKG/V4A/US-104 |
| Sensing Range | 2 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1000 Hz |
| Housing | Stainless Steel V4A |
| Thread | M8 x 1 |
| Dimensions | L = 50 mm |
| Mounting | Flush mountable |
| Connection | M12 connector |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +70 °C |
