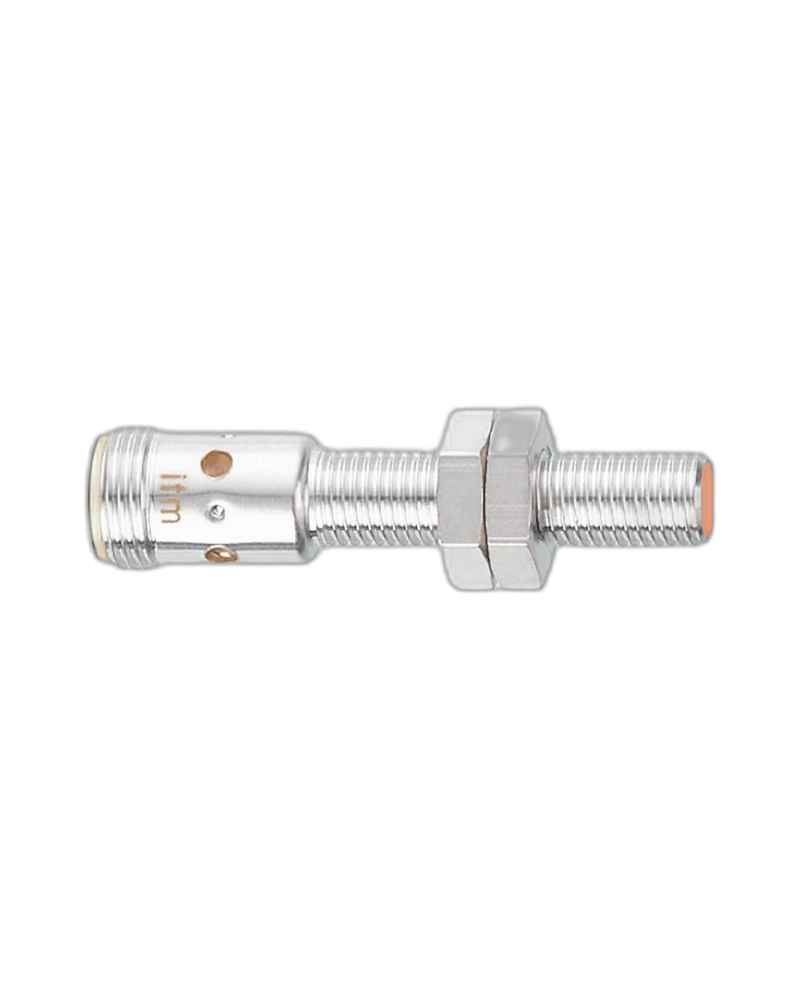

The IE5379 Inductive Sensor is designed for accurate metal detection in compact industrial automation applications. It provides a 2 mm sensing range with PNP normally open output and increased sensing performance. Its V4A stainless-steel construction supports reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5379 is a compact inductive proximity sensor designed for reliable non-contact metal detection and machine position monitoring. Its M8 construction allows installation in equipment where available space is limited.
The sensor provides a 2 mm sensing range with PNP normally open output and a 1000 Hz switching frequency. Its robust V4A stainless-steel housing provides durability for industrial machinery and production systems.
It is suitable for Industrial Automation Solutions in UAE, Industrial Sensors applications, assembly machinery, conveyors, and automated production equipment.
Ideal for factory automation, machine tools, conveyors, assembly equipment, packaging machinery, production lines, and industrial position detection.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5379 |
| Part Number | IEB3002BBPKG/V4A/US-104 |
| Sensing Range | 2 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1000 Hz |
| Housing | Stainless Steel V4A |
| Thread | M8 x 1 |
| Dimensions | L = 50 mm |
| Mounting | Flush mountable |
| Connection | M12 connector |
| Protection Rating | IP68 / IP69K |
| Operating Temperature | 0 to +100 °C |
