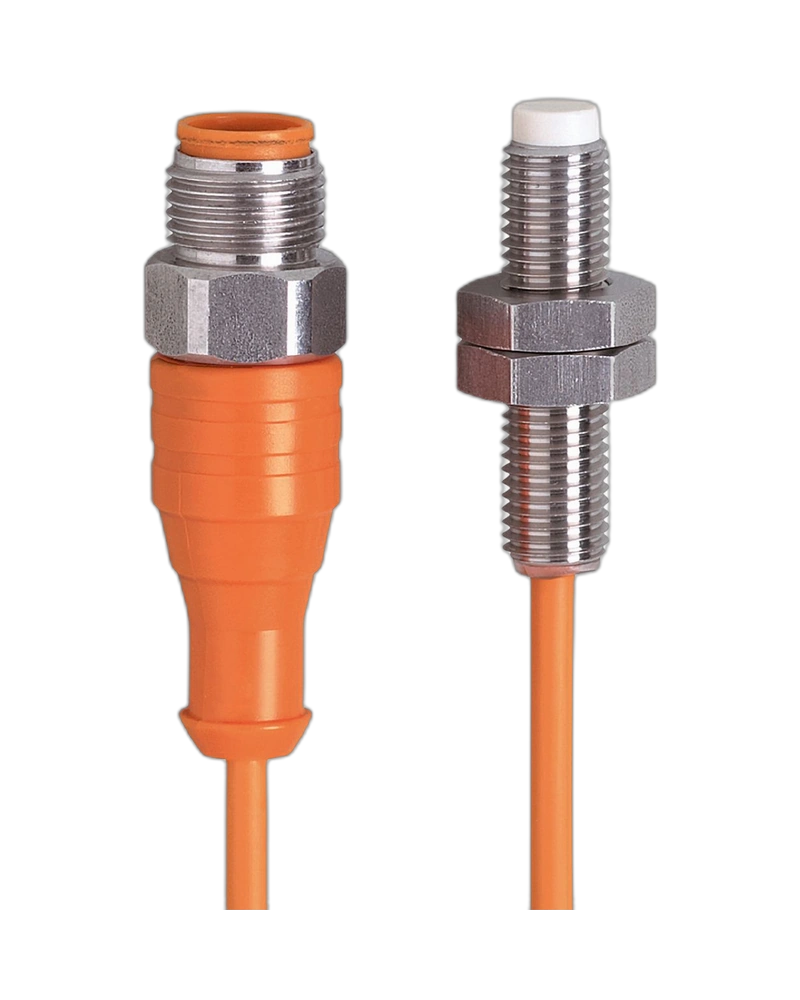

The IE5378 Inductive Sensor provides reliable non-contact metal detection for automated machinery and production systems. It features a 3 mm sensing range, PNP normally open output, and a 3.5 m cable. Its compact V4A stainless-steel construction supports dependable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5378 is designed for accurate position and object detection in factory automation applications. Its M8 threaded construction provides a compact sensing solution for machinery and production equipment.
The 3 mm sensing range and 300 Hz switching frequency support reliable detection during automated processes. A 3.5 m PVC cable allows flexible connection to PLCs and industrial controllers.
This sensor is suitable for Industrial Automation Systems in UAE, conveyors, assembly machines, packaging equipment, and other Industrial Equipment & Supplies in UAE applications.
Suitable for factory automation, conveyor systems, assembly equipment, packaging machinery, machine tools, production lines, and material handling systems.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5378 |
| Part Number | IEB3003-BPKG/V4A/3.5M/US RT |
| Sensing Range | 3 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 300 Hz |
| Housing | Stainless Steel V4A |
| Thread | M8 x 1 |
| Dimensions | L = 35 mm |
| Mounting | Non-flush |
| Connection | 3.5 m PVC cable |
| Protection Rating | IP67 |
| Operating Temperature | 0 to +70 °C |
