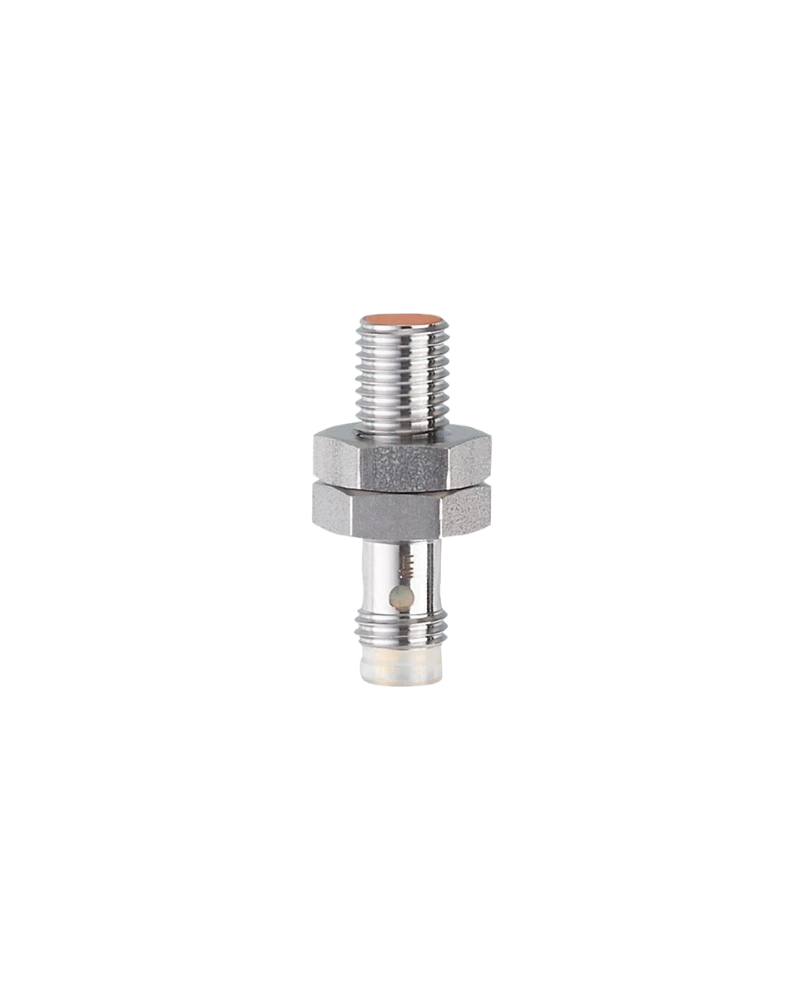

The IE5366 Inductive Sensor provides reliable 2 mm non-contact metal detection for industrial automation, machine tools, and factory equipment. Its compact M8 housing and increased sensing range support dependable industrial performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5366 is designed for accurate metallic object detection in industrial automation applications. It helps machines detect component presence and position without physical contact.
The sensor is designed with an increased sensing range, providing reliable detection while allowing greater installation flexibility in industrial machinery.
Its M8 stainless-steel construction makes it suitable for demanding industrial applications, including machine tools and environments involving coolants and lubricants.
The IE5366 supports fast and consistent switching for automated machine operations. It can help improve machine monitoring and production efficiency.
The sensor can be integrated into Industrial Automation Equipment UAE, factory automation systems, conveyors, machine tools, and production equipment. IFM specifies a 2 mm sensing range, PNP normally-open output, 10–30 V DC operation and 800 Hz switching frequency.
2 mm sensing range
Increased sensing range
PNP normally-open output
Compact M8 housing
Stainless-steel construction
800 Hz switching frequency
Reliable metal detection
Short-circuit protection
Overload protection
Suitable for machine tools
Industrial automation
Machine tools
Factory automation
Conveyor systems
Assembly machinery
Material handling
Position detection
Object detection
Coolant and lubricant environments
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5366 |
| Part Number | IEB3002BBPKG/V4A/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 ± 10% mm |
| Housing | M8 x 1 |
| Housing Length | 30 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 800 Hz |
| Output Current | 100 mA |
| Protection | IP67 |
| Special Feature | Increased Sensing Range |
| Housing Material | Stainless Steel |
| Application | Industrial Applications / Factory Automation |
| Suitable Environment | Machine Tools, Coolants & Lubricants |
