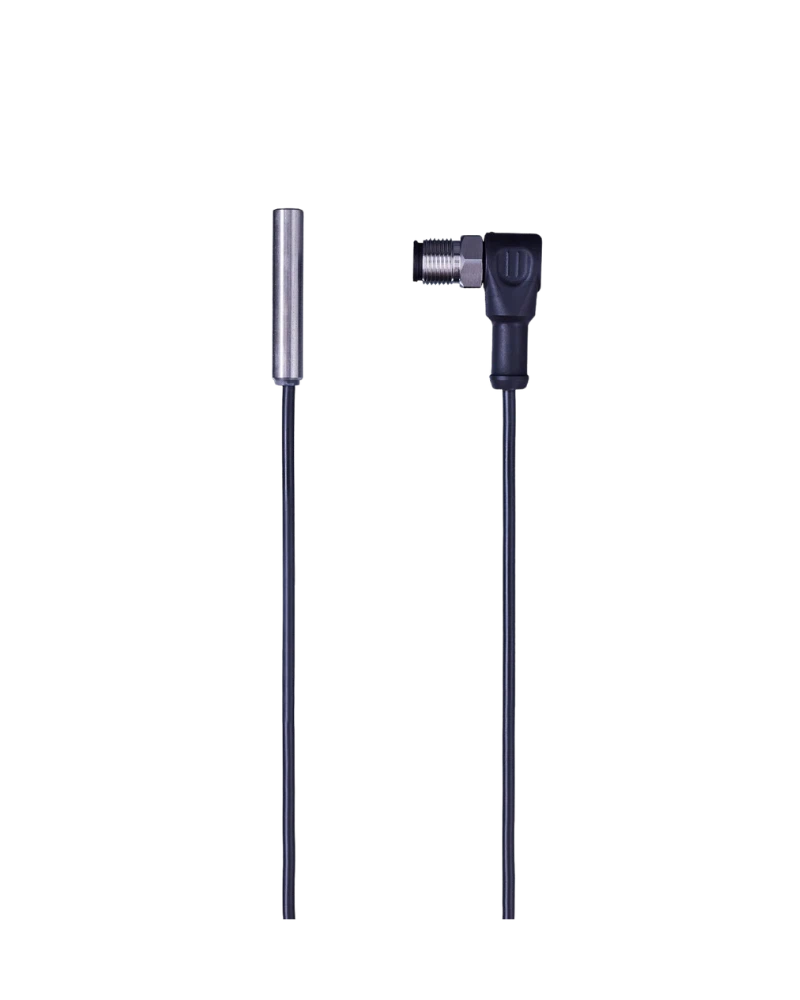

The IE5364 Inductive Sensor provides reliable non-contact metal detection for industrial automation and machine monitoring. Its compact angled design makes it suitable for installations where space and cable orientation are important.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5364 is designed for accurate detection of metallic objects in Industrial Automation UAE applications. It supports reliable presence and position sensing in automated machinery.
Its angled configuration helps simplify sensor installation in machinery where straight cable routing may be difficult. The compact design makes it suitable for restricted installation areas.
The sensor provides fast switching performance for automated machine operations. It can detect metal components quickly, helping support efficient production processes.
The IE5364 can be used in conveyors, machine tools, assembly equipment, packaging machinery, and other factory automation systems. It supports reliable machine monitoring and component detection.
2 mm sensing range
Compact angled design
PNP normally-open output
High-speed switching
M8 sensor construction
Reliable metal detection
Easy machine integration
Space-saving installation
IP67 protection
Suitable for factory automation
Machine tools
Factory automation
Conveyor systems
Assembly machinery
Packaging equipment
Material handling
Position detection
Object presence detection
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5364 |
| Part Number | IEG3002BBPKG/V2A/0.35M/US-100/ANGLED |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Housing | Compact Threaded Design |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1000 Hz |
| Cable Length | 0.35 m |
| Connection | Angled Connection |
| Protection | IP67 |
| Application | Industrial Automation |
