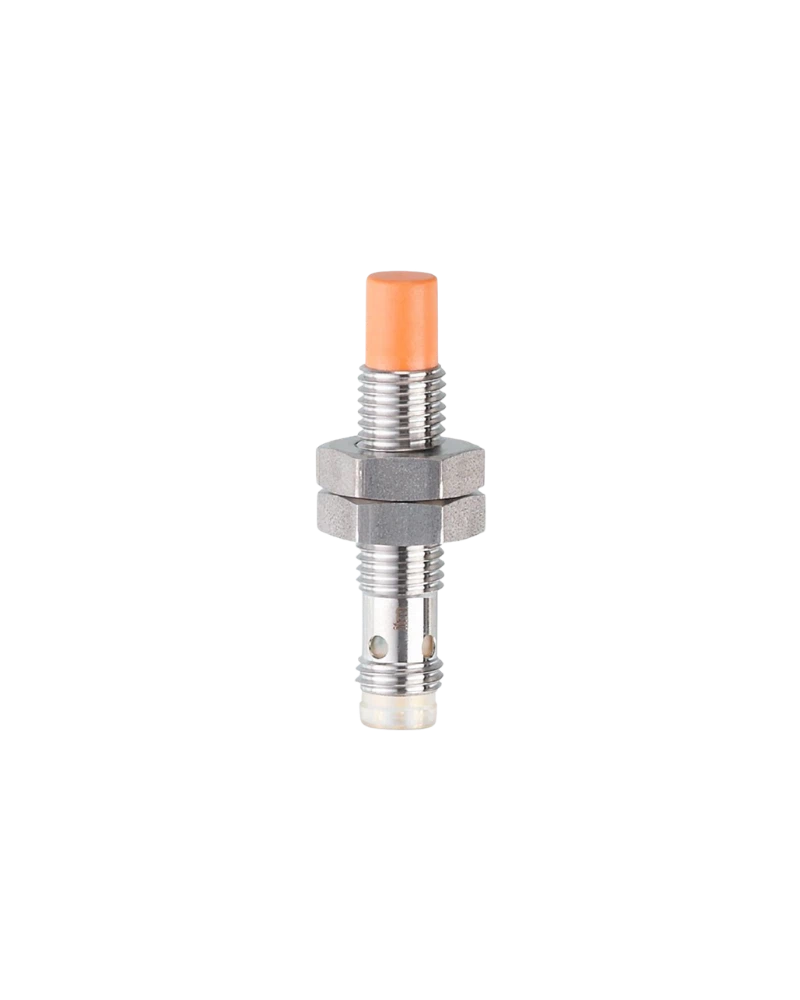

The IE5362 Inductive Sensor provides reliable 4 mm non-contact metal detection for industrial automation and machine monitoring. Its compact M8 housing and increased sensing range support dependable detection in demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5362 is designed to detect metallic objects accurately in automated machinery. It supports Industrial Automation UAE applications including machine positioning, object detection, and production monitoring.
With a 4 mm sensing range, the IE5362 provides reliable detection while offering greater installation flexibility. This makes it suitable for machinery, conveyors, and automated production equipment.
The M8 threaded housing allows convenient installation in industrial equipment. Its robust construction is suitable for continuous operation in factory environments.
The sensor provides dependable switching for automated processes and can be used to detect component presence, movement, and machine position. IFM specifies a 4 mm sensing range, 10–30 V DC operating voltage, PNP normally-open output and 800 Hz switching frequency.
4 mm sensing range
Increased sensing range
PNP normally-open output
Compact M8 housing
Reliable metal detection
800 Hz switching frequency
Robust industrial construction
Short-circuit protection
Overload protection
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Material handling
Position detection
Object detection
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5362 |
| Part Number | IEB3004-BPKG/V4A/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Real Sensing Range | 4 ± 10% mm |
| Housing | M8 x 1 |
| Housing Length | 50 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 800 Hz |
| Output Current | 100 mA |
| Protection | IP67 |
| Special Feature | Increased Sensing Range |
| Application | Industrial Automation |
