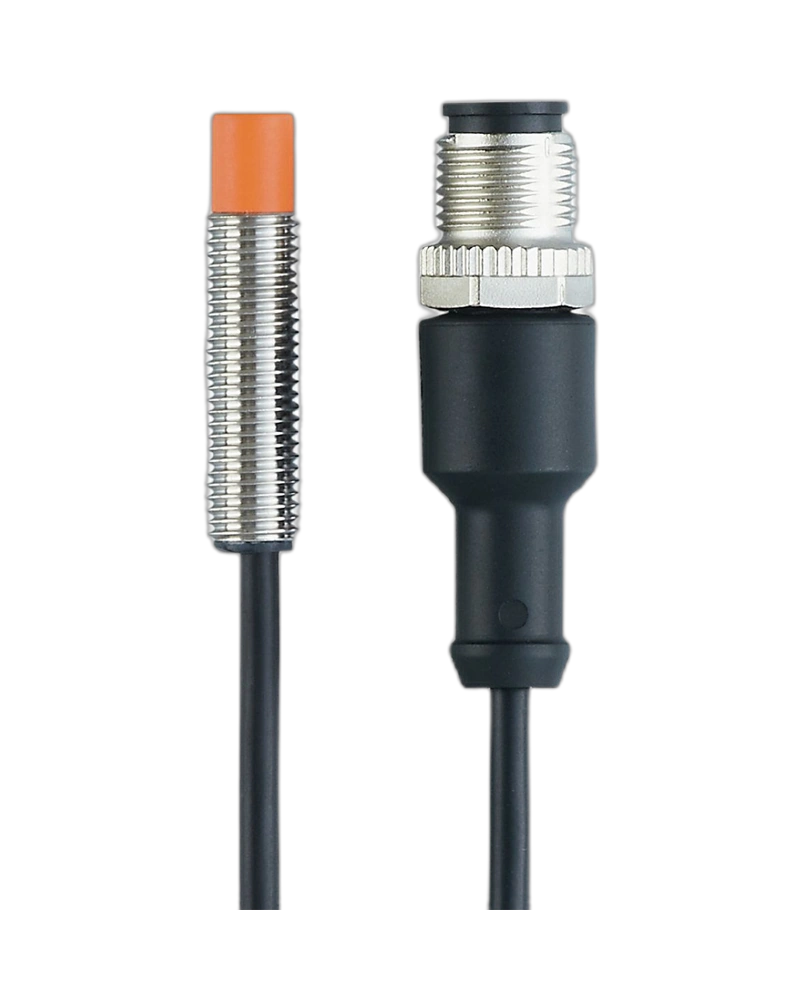

The IE5352 Inductive Sensor provides reliable 5 mm non-contact metal detection for industrial automation and machine monitoring. Its compact M8 construction supports dependable operation in factory environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5352 detects metallic objects without physical contact, supporting accurate presence and position detection in automated machinery.
Its compact construction makes it suitable for installation in conveyors, machines, assembly systems, and automated production equipment.
The sensor provides reliable switching for continuous industrial operations and can be integrated into industrial control systems.
5 mm sensing range
Compact M8 housing
PNP output
Normally open operation
Reliable object detection
Fast switching
IP67 protection
Easy machine integration
Factory automation
Conveyor systems
Machine tools
Packaging equipment
Assembly machinery
Position detection
Object counting
Material handling
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5352 |
| Part Number | IEBC005-ASKG/0,3M/US |
| Sensing Range | 5 mm |
| Housing | M8 |
| Mounting | Non-flush |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 700 Hz |
| Connection | 0.3 m Cable |
| Protection | IP67 |
| Application | Industrial Automation |
