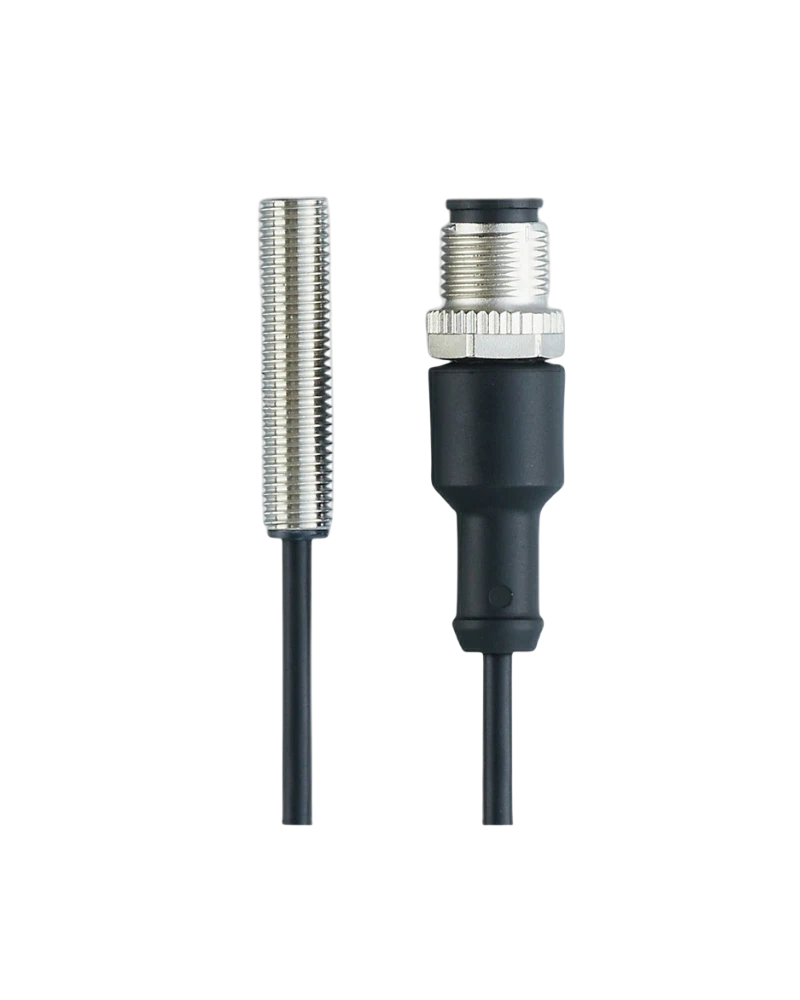

The IE5351 Inductive Sensor provides accurate non-contact metal detection for factory automation and industrial machinery. Its compact M8 design and 3 mm sensing range support reliable object and position detection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5351 is designed to detect metallic objects accurately without physical contact. It supports Industrial Automation UAE applications including machine monitoring and automated production.
The compact threaded housing makes the sensor suitable for machinery with restricted installation space. It can be integrated into conveyors, assembly equipment, and production systems.
The sensor provides consistent switching for repeated industrial operations and supports dependable machine control.
3 mm sensing range
M8 threaded design
PNP/NPN operation
Flush-mountable construction
Compact design
Reliable metal detection
Fast switching
IP67 protection
Factory automation
Conveyor systems
Assembly machines
Machine tools
Packaging equipment
Position detection
Object detection
Material handling
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5351 |
| Part Number | IEBC003BASKG/0,3M/US |
| Sensing Range | 3 mm |
| Housing | M8 x 1 |
| Dimensions | M8 / L = 37 mm |
| Electrical Design | PNP/NPN |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1000 Hz |
| Protection Rating | IP67 |
| Connection | 0.3 m Cable |
| Mounting | Flush Mountable |
| Application | Industrial Automation |
