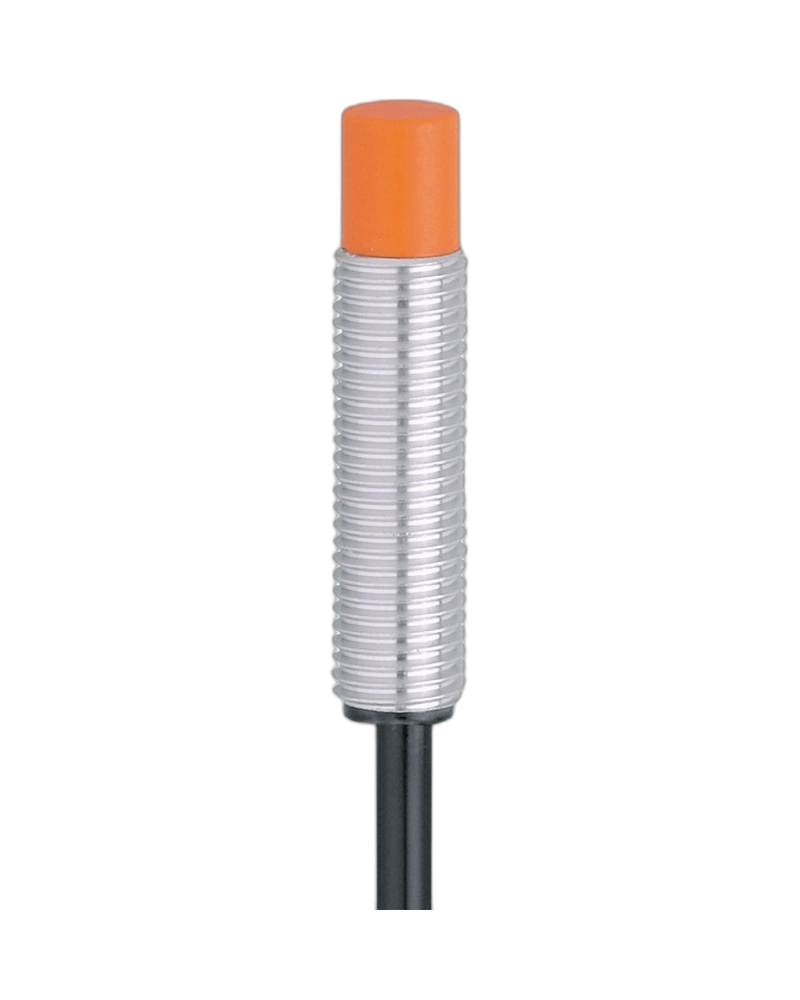

The IE5346 Inductive Sensor provides reliable 5 mm non-contact metal detection for industrial automation and factory equipment. Its particularly short housing, extended sensing range, and space-saving connection technology make it suitable for restricted installation spaces.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5346 is designed for accurate metal object detection in Industrial Automation UAE applications. It supports reliable position and presence detection in automated machinery.
Its particularly short M8 housing allows easy installation in compact equipment and machinery where available space is limited.
The sensor can support two-wire or three-wire operation, helping reduce inventory requirements and providing flexibility during industrial system integration.
5 mm sensing range
PNP/NPN electrical design
Normally open output
Particularly short housing
M8 threaded design
0.3 m PVC cable
Space-saving connection
700 Hz switching frequency
IP67 protection
Suitable for restricted installation spaces
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling
Industrial automation equipment
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5346 |
| Part Number | IEBC005-ASKG/0,3M/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 5 mm |
| Real Sensing Range | 5 ±10% mm |
| Housing | M8 x 1 |
| Housing Length | 37 mm |
| Mounting | Non-flush Mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Cable Length | 0.3 m |
| Cable Type | PVC |
| Connection | M8 |
| Switching Frequency | 700 Hz |
| Protection | IP65 / IP67 with correctly fitted IFM connector |
| Ambient Temperature | 0–60 °C |
| Application | Industrial Automation |
