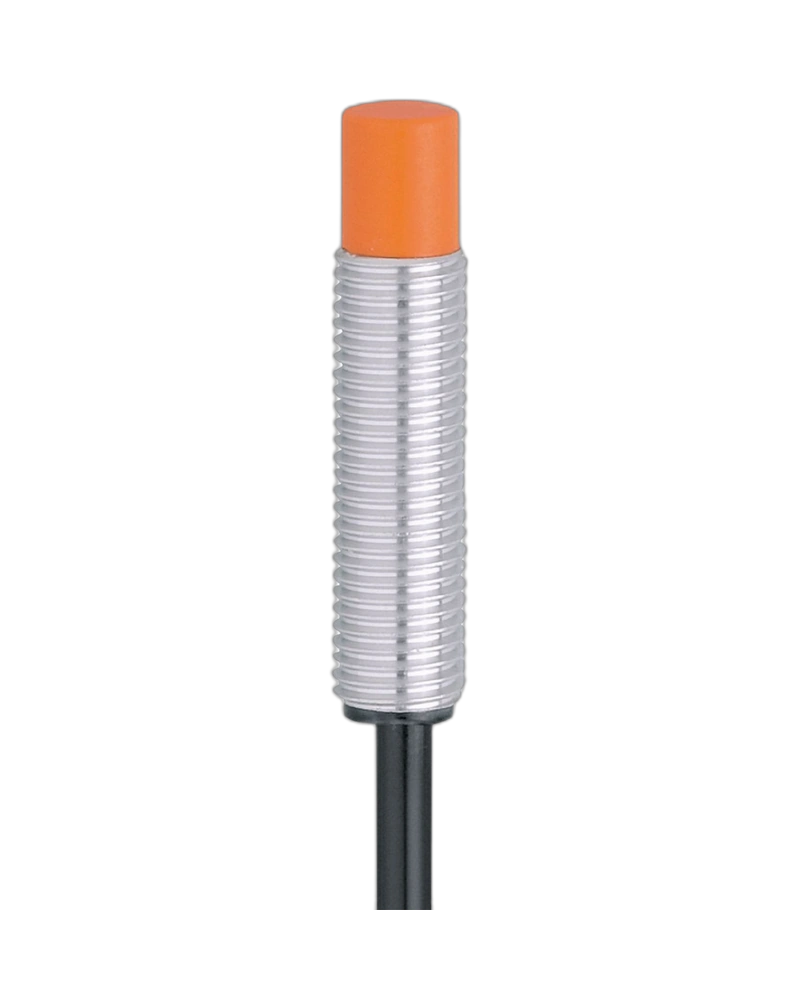

The IE5345 Inductive Sensor is designed for reliable non-contact metal detection in industrial automation and machine-building applications. Its compact M8 housing and extended sensing range support dependable object and position detection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5345 provides accurate metal detection for Industrial Automation UAE applications, helping improve machine monitoring and automated production processes.
Its compact M8 housing is suitable for restricted installation spaces. The robust housing supports dependable use in industrial environments.
The 5 mm sensing range allows reliable detection of metallic objects while providing greater installation flexibility.
5 mm sensing range
PNP/NPN electrical design
Normally open output
Compact M8 housing
Non-flush mounting
2 m PVC cable
Reliable switching performance
Robust metal construction
IP67 protection
Suitable for factory automation
Factory automation
Machine building
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object detection
Material handling
Industrial equipment
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5345 |
| Part Number | IEBC005-ASKG |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 5 mm |
| Housing | M8 x 1 |
| Housing Length | 37 mm |
| Mounting | Non-flush Mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Cable Length | 2 m |
| Cable Type | PVC |
| Housing Material | Brass, White Bronze Coated |
| Sensing Face | LCP |
| Protection | IP67 |
| Application | Industrial Automation |
