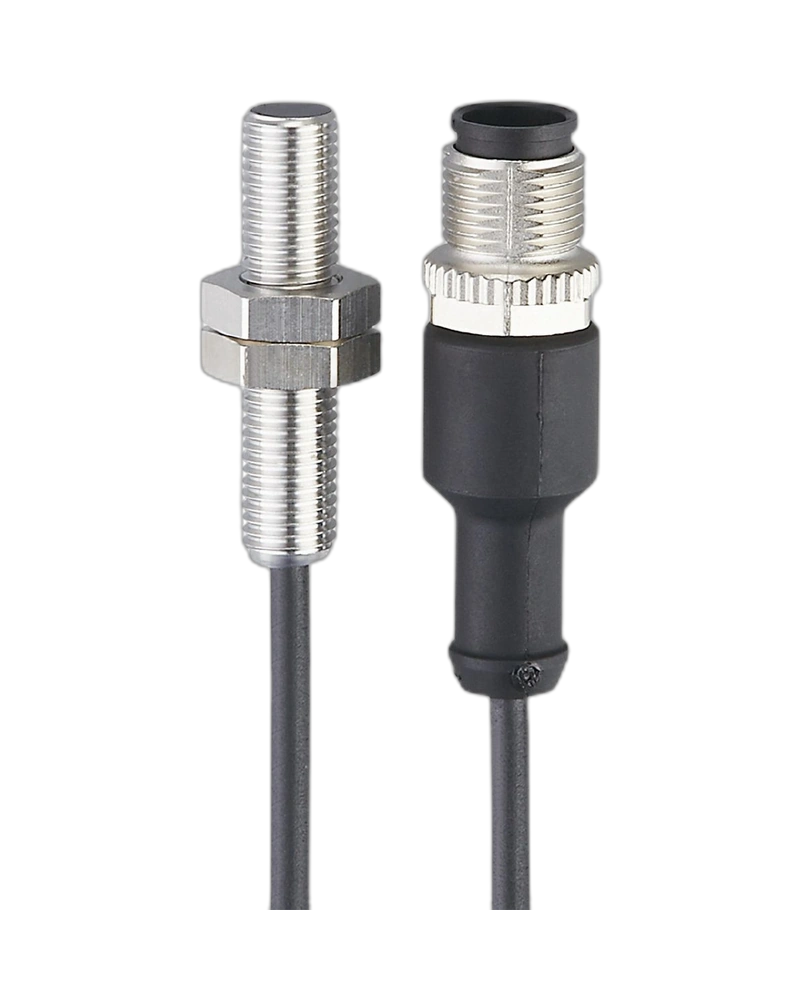

The IE5344 Inductive Sensor provides reliable 3 mm metal detection for industrial automation and factory machinery. Its short M8 housing, flexible PNP/NPN operation, and space-saving connection make it suitable for compact installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5344 is designed for accurate non-contact metal detection in Industrial Automation UAE applications, supporting reliable machine control and position sensing.
Its particularly short M8 housing allows installation in restricted spaces and compact industrial equipment.
The sensor supports both two-wire and three-wire operation, making it flexible for different industrial control configurations.
3 mm sensing range
PNP/NPN electrical design
Normally open output
M8 threaded housing
37 mm compact length
0.3 m PVC cable
M8 connector
1000 Hz switching frequency
IP67 protection
Suitable for restricted spaces
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Packaging machinery
Position detection
Object detection
Material handling
Industrial automation systems
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5344 |
| Part Number | IEBC003BASKG/0,3M/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 3 mm |
| Housing | M8 x 1 |
| Housing Length | 37 mm |
| Mounting | Flush Mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Cable Length | 0.3 m |
| Cable Type | PVC |
| Connection | M8 |
| Switching Frequency | 1000 Hz |
| Protection | IP67 |
| Application | Industrial Automation |
