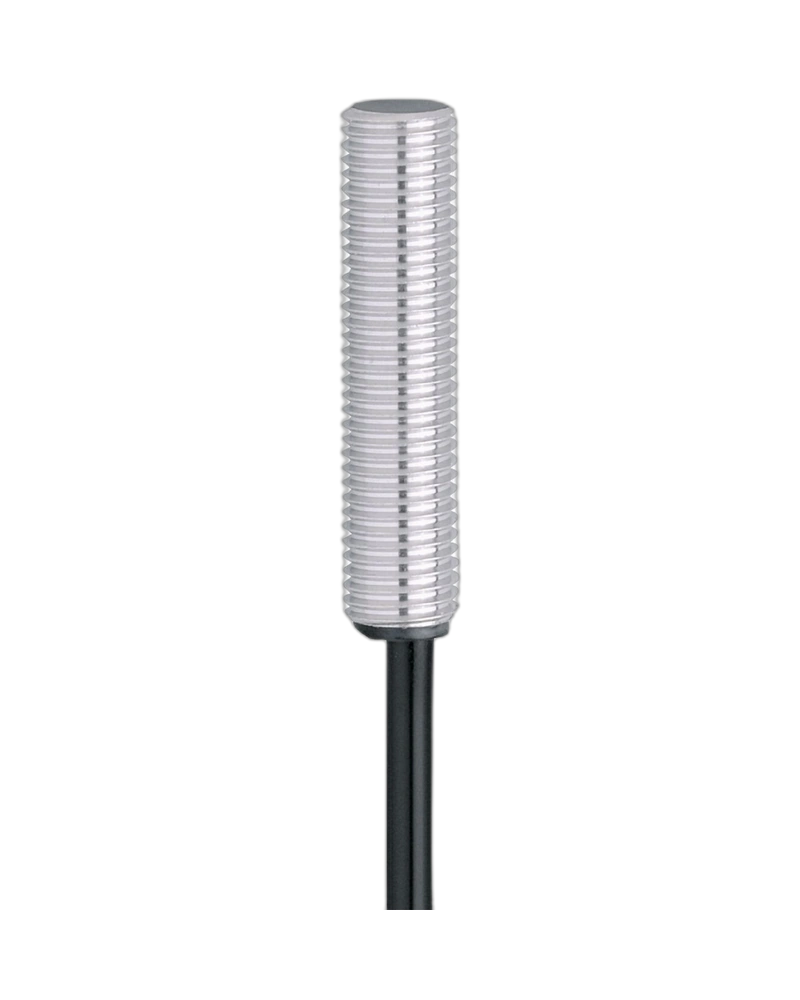

The IE5343 Inductive Sensor provides reliable metal detection for industrial automation, machinery, and factory equipment. Its particularly short housing and space-saving connection technology make it suitable for installations with limited space.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5343 provides dependable non-contact metal detection for Industrial Automation Systems in UAE and factory automation applications.
Its particularly short M8 housing is suitable for machines where conventional sensors may require more installation space.
The sensor supports flexible two-wire and three-wire operation, reducing inventory requirements and simplifying integration.
3 mm sensing range
PNP/NPN operation
Normally open output
Particularly short housing
Space-saving connection technology
M8 threaded design
Extended sensing range
Reliable switching
Compact industrial construction
Suitable for restricted spaces
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object sensing
Material handling
Industrial automation equipment
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5343 |
| Part Number | IEBC003BASKG |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 3 mm |
| Housing | M8 x 1 |
| Mounting | Flush Mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1000 Hz |
| Protection | IP67 |
| Housing Type | Particularly Short |
| Application | Industrial Automation |
