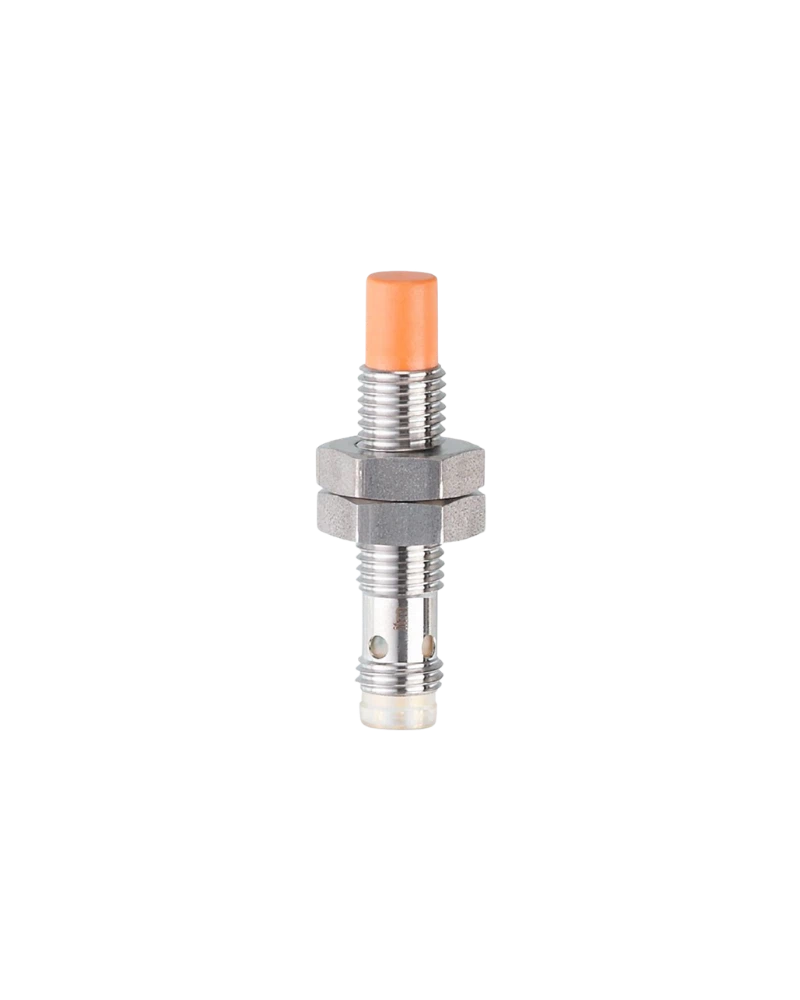

The IE5340 Inductive Sensor provides reliable 5 mm non-contact metal detection for industrial automation, handling systems, and machine building. Its stainless-steel construction and extended sensing range make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5340 provides a 5 mm sensing range for reliable metal detection and improved installation flexibility in Industrial Automation UAE applications.
Its compact M8 housing and stainless-steel construction make it suitable for industrial environments where durability and space-saving installation are important.
The sensor supports PNP/NPN operation and can be used in two-wire or three-wire configurations, providing flexibility when integrating with control systems.
5 mm sensing range
PNP/NPN electrical design
Normally open output
Stainless-steel housing
Compact M8 design
Non-flush mounting
700 Hz switching frequency
IP67 protection
Space-saving construction
Suitable for industrial equipment
Factory automation
Handling systems
Machine building
Conveyor systems
Assembly machinery
Position detection
Object detection
Packaging equipment
Industrial automation systems
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5340 |
| Part Number | IEBC005-ASKG/V4A/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 5 mm |
| Housing | M8 x 1 |
| Housing Length | 40 mm |
| Mounting | Non-flush |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 700 Hz |
| Connection | M8 Plug |
| Housing Material | Stainless Steel |
| Protection | IP67 |
| Application | Industrial Automation |
