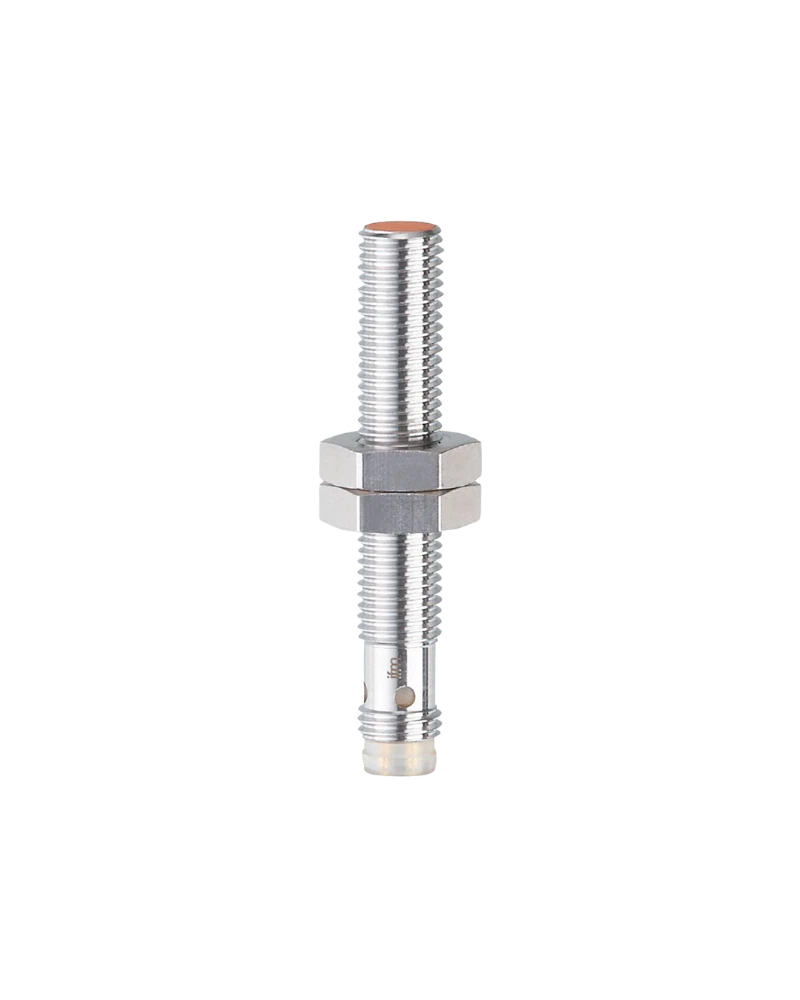

The IE5338 Inductive Sensor provides reliable non-contact metal detection for factory automation and industrial machinery. Its compact M8 housing, flexible PNP/NPN operation, and 3 mm sensing range support dependable industrial performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5338 is designed for accurate metal object detection in Industrial Automation UAE applications. It supports reliable presence and position sensing in automated machinery.
The compact threaded housing allows convenient installation in machines and equipment where space is restricted.
PNP/NPN functionality and normally open output make the sensor suitable for different industrial control system configurations.
3 mm sensing range
PNP/NPN electrical design
Normally open output
Compact M8 housing
Flush-mountable design
800 Hz switching frequency
IP67 protection
Short-circuit protection
Overload protection
Reliable factory automation performance
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position detection
Object detection
Material handling
Production machinery
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5338 |
| Part Number | IEBC003BASKG/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 3 mm |
| Housing | M8 x 1 |
| Housing Length | 40 mm |
| Mounting | Flush Mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 800 Hz |
| Output Current | 100 mA |
| Protection | IP67 |
| Protection Class | III |
| Application | Industrial Automation |
