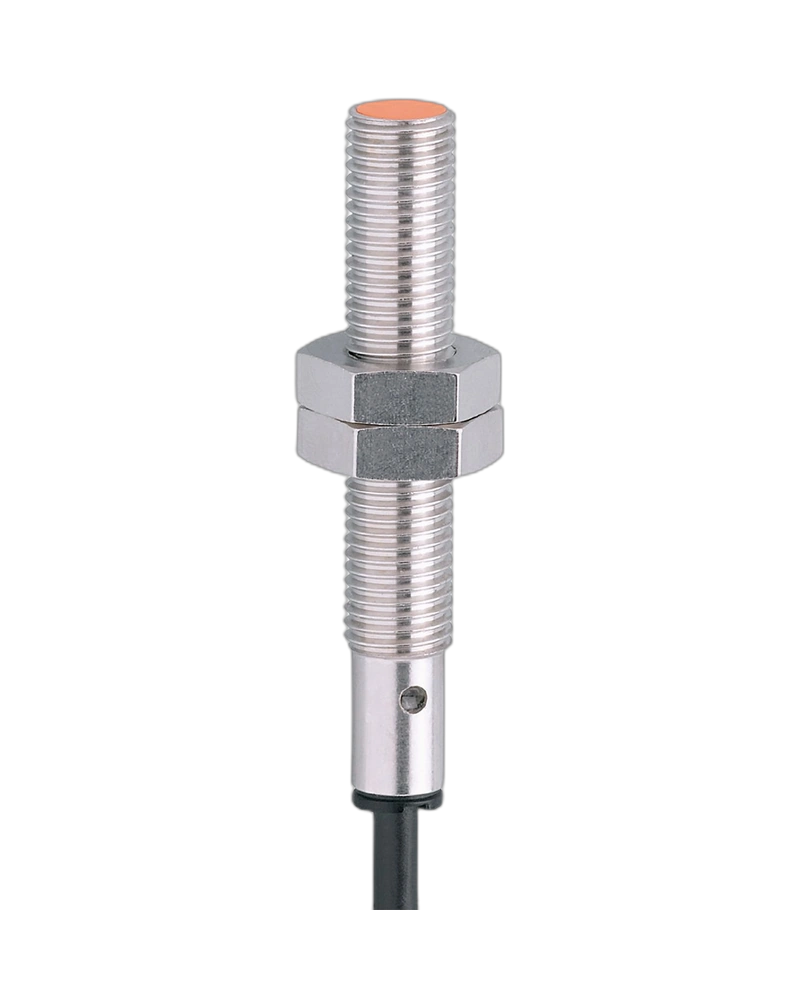

The IE5332 Inductive Sensor provides reliable non-contact metal detection for industrial automation, machine monitoring, and position sensing. Its compact M8 housing and high switching frequency make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5332 Inductive Sensor is designed for accurate metal detection in Industrial Automation UAE applications. It helps detect metallic objects without physical contact, supporting reliable machine operation and automated processes.
Its compact threaded M8 housing makes the sensor suitable for machinery and equipment where installation space is limited. It can be integrated into factory automation systems and industrial equipment.
The sensor features selectable normally open and normally closed output functionality with PNP/NPN electrical design, allowing flexible integration with industrial control systems.
Reliable non-contact metal detection
2 mm sensing range
PNP/NPN electrical design
Selectable NO/NC output
Compact M8 threaded housing
Very high switching frequency
Robust metal construction
Two-wire technology
Reliable position detection
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5332 |
| Part Number | IEA2002-FRKG/6M |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Housing | Threaded M8 x 1 |
| Mounting | Non-flush mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, Selectable |
| Cable Length | 6 m |
| Cable Type | PUR/PVC |
| Operating Voltage | 10–36 V DC |
| Protection Class | III |
| Protection | IP67 |
| Connection | 2 x 0.14 mm² cable |
| Application | Industrial Automation |
