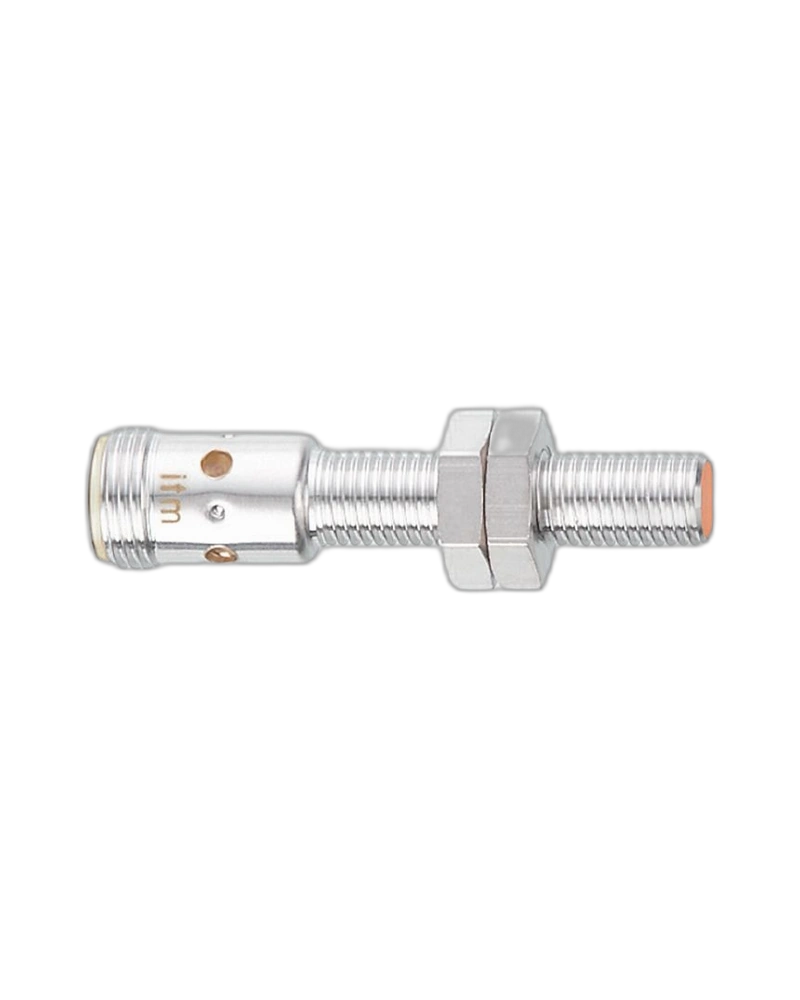

The IE5331 Inductive Sensor provides reliable 4 mm non-contact metal detection for industrial automation and factory equipment. Its compact M8 design, increased sensing range, and high-speed switching support dependable industrial performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5331 is designed for accurate metal detection in Industrial Automation UAE applications. It supports reliable object presence and position detection in automated machinery.
The sensor features a compact threaded M8 housing that can be integrated into machinery where installation space is restricted.
With a 4 mm sensing range and 300 Hz switching frequency, the IE5331 provides reliable detection for various factory automation applications.
4 mm sensing range
PNP normally open output
Increased sensing range
Compact M8 design
60 mm housing length
300 Hz switching frequency
IP67 protection
Short-circuit protection
Overload protection
Reliable machine detection
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5331 |
| Part Number | IEK3004-BPKG/OELVER/US-104 |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 60 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 300 Hz |
| Switching Current | 100 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Ambient Temperature | 0 to +70 °C |
| Application | Industrial Automation |
