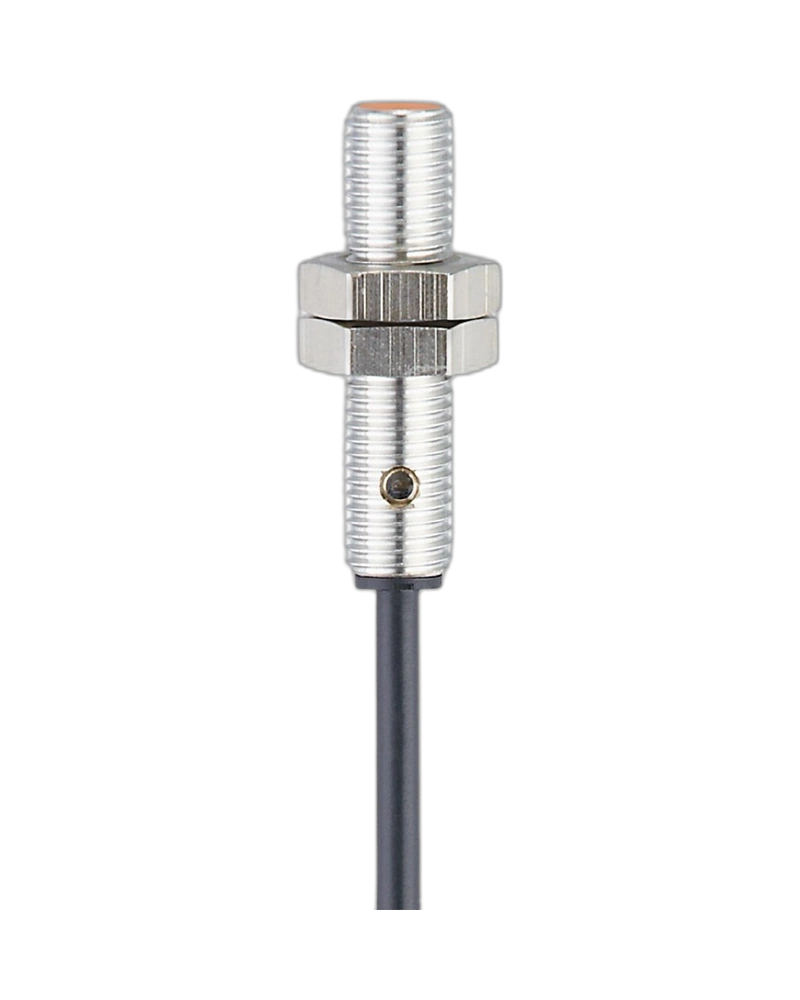

The IE5330 Inductive Sensor is a compact proximity sensor designed for reliable metal detection in industrial automation. Its particularly short housing, space-saving design, and high switching frequency make it suitable for restricted installation areas.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5330 provides reliable non-contact metal detection for Industrial Automation UAE applications. Its short housing is especially suitable for machines with limited installation space.
The compact M8 housing and space-saving connection technology allow easy integration into machinery, conveyors, and factory automation systems.
The sensor provides a 1 mm sensing range, high switching frequency, and IP67 protection for dependable industrial operation.
1 mm sensing range
NPN normally open output
Particularly short housing
M8 threaded design
3-meter PVC cable
High switching frequency
IP67 protection
Space-saving connection
Robust metal housing
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Packaging machinery
Position detection
Object detection
Material handling
Industrial machinery
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5330 |
| Part Number | IEB3001-ANKG/3M |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 1 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 35 mm |
| Electrical Design | NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1000 Hz |
| Switching Current | 200 mA |
| Cable Length | 3 m |
| Cable Type | PVC |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
