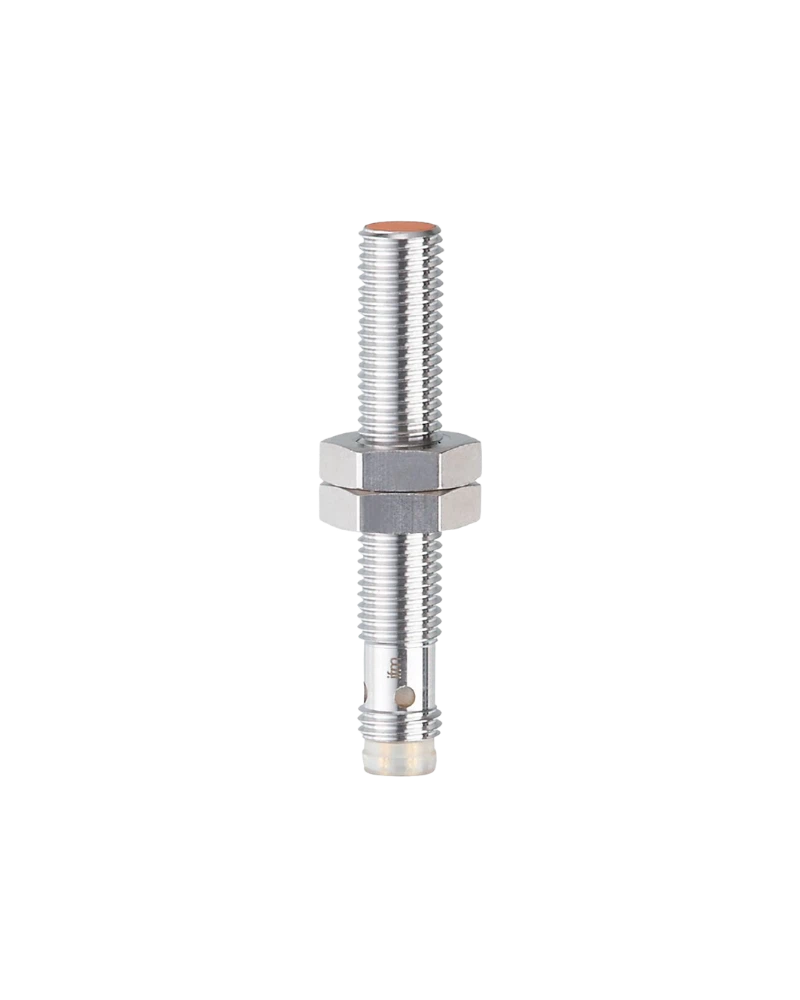

The IE5329 Inductive Sensor provides reliable 4 mm non-contact metal detection for industrial automation and factory equipment. Its compact M8 design and increased sensing range make it suitable for space-restricted industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5329 is designed for accurate metal object detection in Industrial Automation UAE applications. It supports reliable machine positioning and object presence detection.
With a 4 mm sensing range, the sensor can detect metal objects from a greater distance compared with standard compact proximity sensors.
The M8 threaded housing makes the IE5329 suitable for machines and equipment where installation space is restricted. It provides reliable performance for automated production systems.
4 mm sensing range
PNP normally open output
Increased sensing range
Compact M8 design
50 mm housing length
800 Hz switching frequency
IP65 / IP67 protection
M8 connection
Reliable switching performance
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5329 |
| Part Number | IEB3004-BPKG/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 50 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 800 Hz |
| Switching Current | 200 mA |
| Connection | M8 |
| Protection Rating | IP65 / IP67 |
| Number of Wires | 3-wire |
| Ambient Temperature | -25 to +70 °C |
| Application | Industrial Automation |
