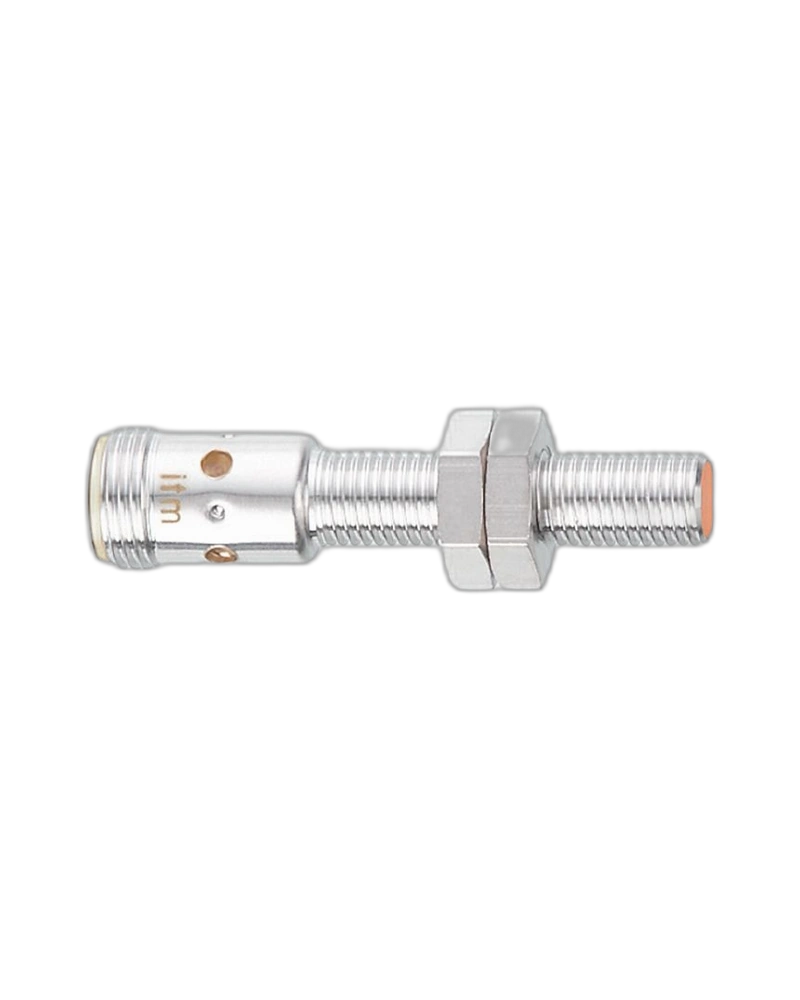

The IE5327 Inductive Sensor provides reliable non-contact metal detection for industrial automation, machinery, and factory equipment. Its increased sensing range and compact M8 housing support accurate detection in space-restricted applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5327 is designed for reliable metal object detection in Industrial Automation UAE applications. It helps improve machine positioning and automated production processes.
The M8 threaded housing provides a compact solution for machinery and equipment where installation space is restricted.
The sensor offers an increased 2 mm sensing range, 800 Hz switching frequency, and IP67 protection for dependable industrial operation.
2 mm sensing range
PNP normally closed output
Increased sensing range
M8 threaded design
60 mm housing length
800 Hz switching frequency
IP67 protection
Short-circuit protection
Overload protection
Reliable position detection
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5327 |
| Part Number | IEK3002BAPKG/US-104 |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 60 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 800 Hz |
| Switching Current | 100 mA |
| Protection Class | III |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Application | Industrial Automation |
