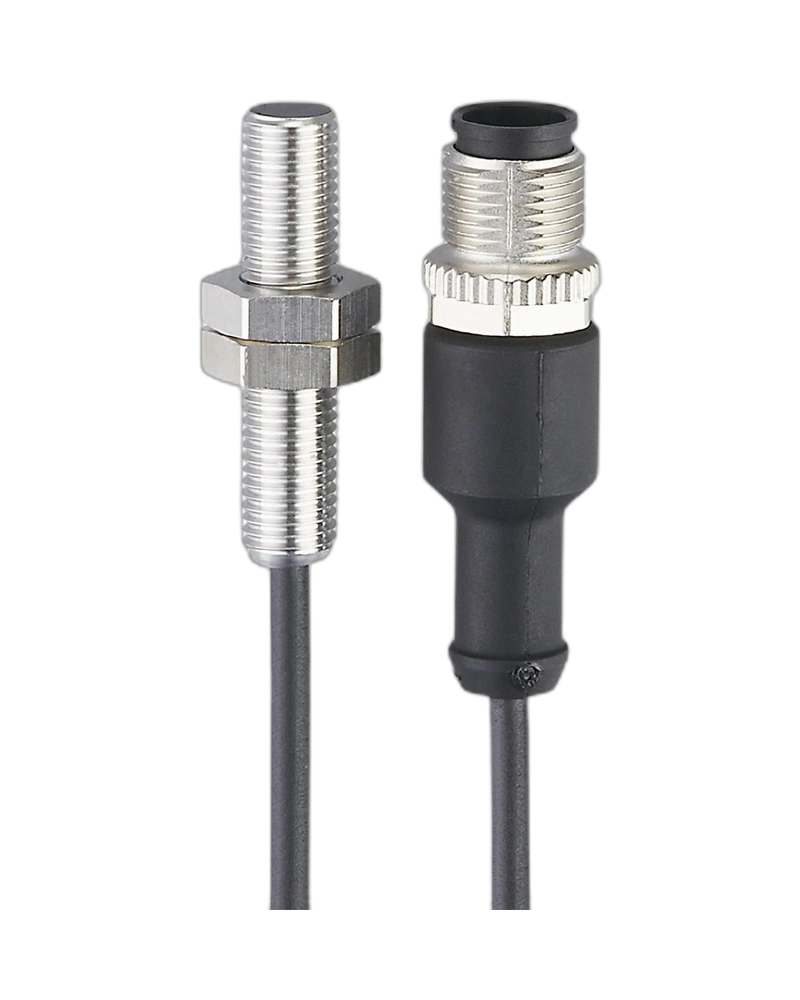

The IE5325 Inductive Sensor provides reliable non-contact metal detection for industrial automation and machine monitoring. Its compact M8 housing, 0.8 m PUR cable, and normally closed PNP output make it suitable for automated industrial equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5325 is designed for accurate metal object detection in Industrial Automation UAE applications. It supports reliable position sensing and machine monitoring.
The short M8 housing allows installation in machines and equipment with limited available space. Its compact construction supports convenient integration into factory automation systems.
The sensor provides high-speed switching performance and IP67 protection for reliable operation in demanding industrial environments.
2 mm sensing range
PNP normally closed output
Flush-mountable design
M8 compact housing
0.8 m PUR cable
M12 connector
1000 Hz switching frequency
IP67 protection
Robust metal construction
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Packaging machinery
Position detection
Object detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5325 |
| Part Number | IEB3002BAPKG/0,8M/FH/US100DPOR |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 38 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–36 V DC |
| Cable Length | 0.8 m |
| Cable Material | PUR |
| Connection | M12 |
| Switching Frequency | 1000 Hz |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +70 °C |
| Application | Industrial Automation |
