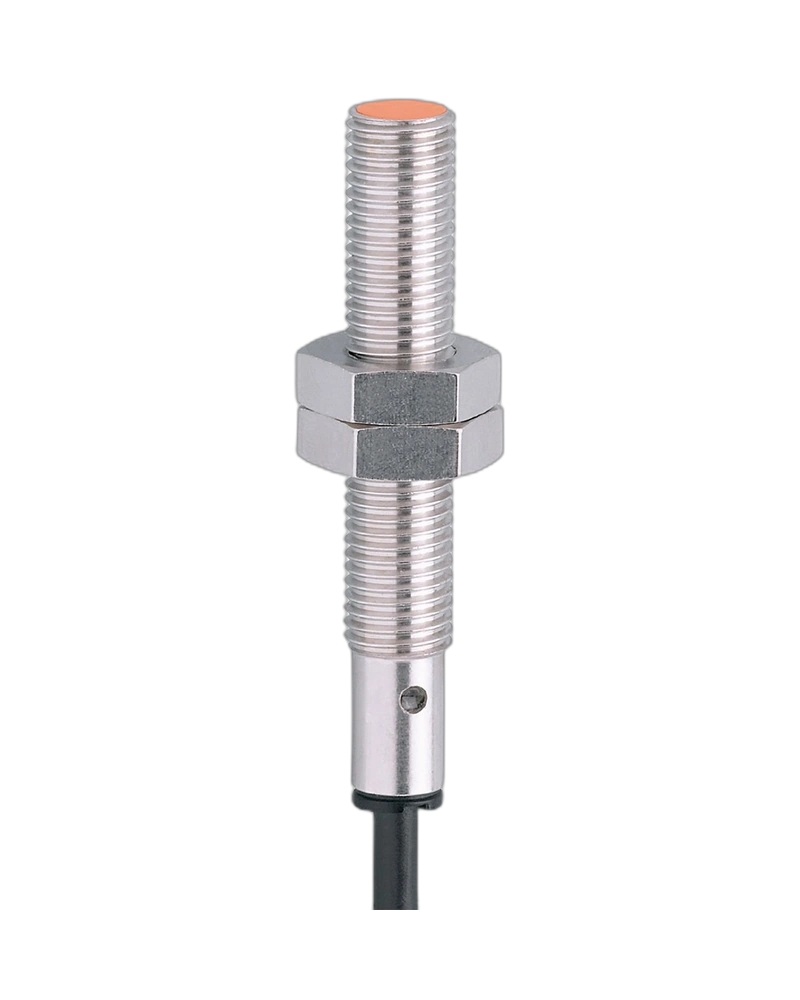

The IE5324 Inductive Sensor provides reliable 2 mm metal detection for industrial automation and factory equipment. Its short M8 housing, 0.8 m PUR cable, and M12 connection make it suitable for compact industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5324 is designed for accurate non-contact metal detection in Industrial Automation UAE applications. It supports reliable object and position detection in automated machinery.
Its short M8 housing is suitable for applications where installation space is restricted. The compact cable and M12 connector simplify integration into industrial control systems.
With a 1000 Hz switching frequency and IP67 protection, the sensor provides dependable performance in factory automation and industrial equipment.
2 mm sensing range
PNP normally open output
Flush-mountable design
Compact short housing
0.8 m PUR cable
M12 connector
1000 Hz switching frequency
IP67 protection
Robust metal housing
Suitable for factory automation
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position detection
Object detection
Material handling systems
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5324 |
| Part Number | IEB3002BBPKG/0,8M/FH/US100DPS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 38 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Cable Length | 0.8 m |
| Cable Material | PUR |
| Connection | M12 |
| Switching Frequency | 1000 Hz |
| Protection Rating | IP67 |
| Application | Industrial Automation |
