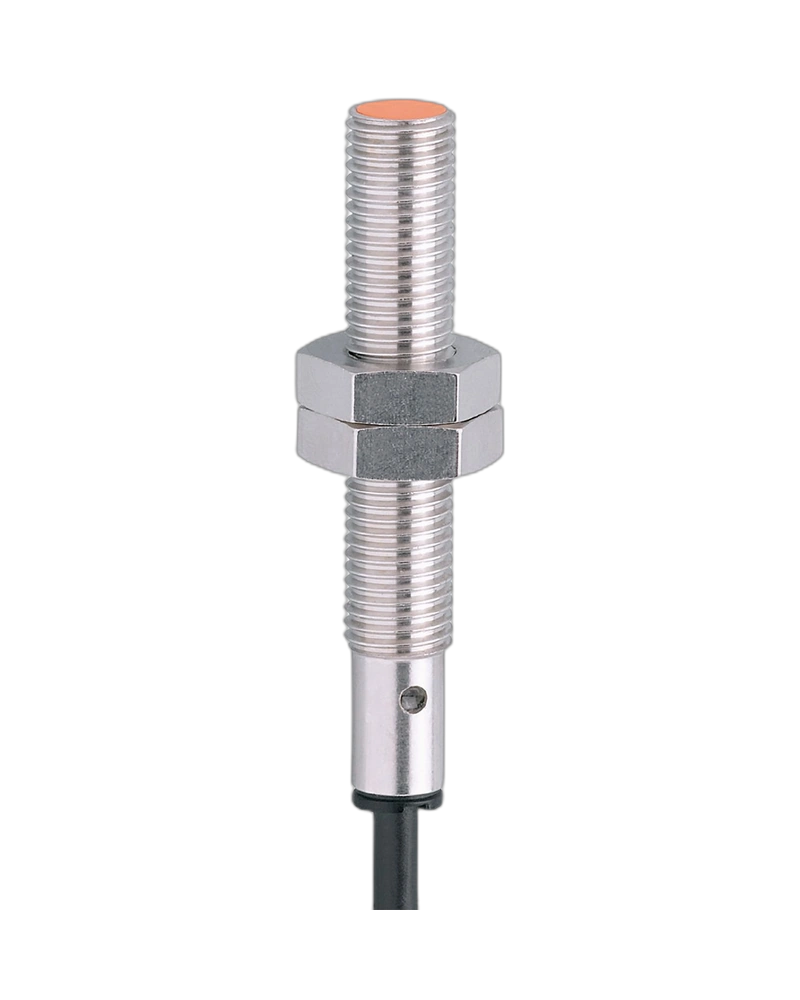

The IE5320 Inductive Sensor is designed for reliable metal detection in industrial automation and factory equipment. Its compact M8 design, programmable output function, and high switching frequency make it suitable for space-restricted installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5320 provides dependable non-contact detection of metal objects in Industrial Automation UAE applications. It supports accurate position and presence detection in automated machinery.
Its compact M8 threaded housing is suitable for machines and equipment where installation space is limited. The short cable connection also supports convenient installation.
The sensor supports selectable normally open and normally closed output functionality, allowing flexible integration with industrial control systems.
1 mm sensing range
Programmable NO/NC output
PNP/NPN operation
Compact M8 design
0.14 m cable
2000 Hz switching frequency
IP67 protection
Two-wire technology
Robust metal housing
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling
Industrial machinery
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5320 |
| Part Number | IEA2001-FRKG/0,14M/PH |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 1 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 50 mm |
| Electrical Design | PNP/NPN |
| Output Function | Selectable NO/NC |
| Cable Length | 0.14 m |
| Cable Material | PUR/PVC |
| Switching Frequency | 2000 Hz |
| Protection Rating | IP67 |
| Number of Wires | 2-wire |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
