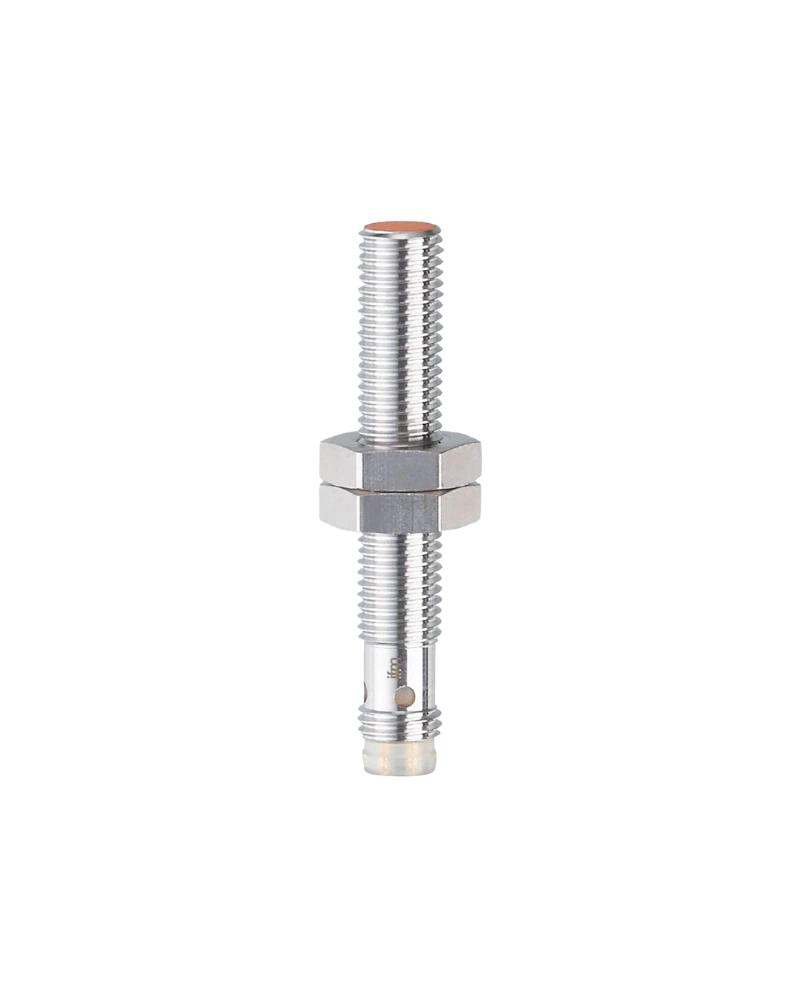

The IE5319 Inductive Sensor provides dependable non-contact metal detection for industrial automation and machine monitoring. Its compact M8 housing, increased sensing range, and PNP normally closed output support reliable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5319 is designed to detect metallic objects accurately in Industrial Automation UAE applications. It supports reliable machine control, position detection, and automated production processes.
Its threaded M8 housing makes the sensor suitable for machinery and equipment where installation space is limited. The compact design allows convenient integration into industrial automation systems.
The sensor offers an increased 2 mm sensing range and high switching frequency for dependable detection in automated production environments.
Reliable non-contact metal detection
2 mm sensing range
PNP normally closed output
Increased sensing range
Compact M8 design
1300 Hz switching frequency
IP67 protection
Reliable position detection
Short-circuit protection
Suitable for factory automation
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position sensing
Object detection
Material handling
Production machinery
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5319 |
| Part Number | IEB3002BAPKG/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 50 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1300 Hz |
| Switching Current | 100 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Application | Industrial Automation |
