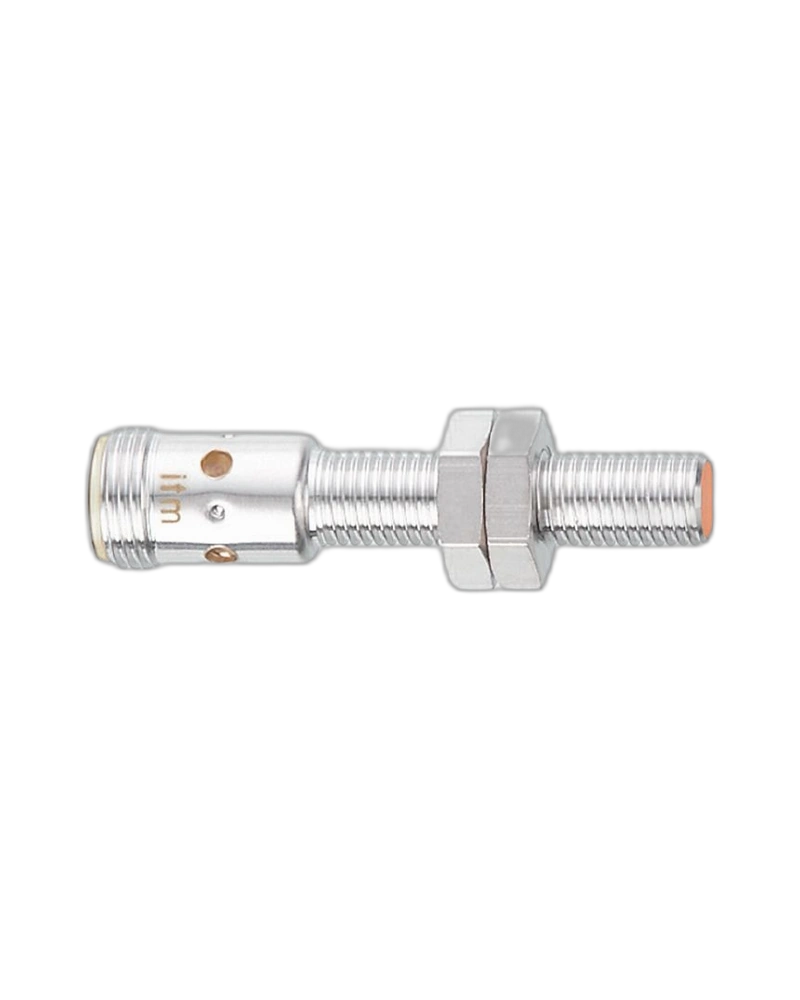

The IE5318 Inductive Sensor provides reliable non-contact metal detection for industrial automation, machine monitoring, and position sensing. Its compact M8 design, increased sensing range, and robust metal housing make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5318 Inductive Sensor is designed for accurate metal object detection in Industrial Automation UAE applications. It enables reliable presence and position detection without physical contact.
With its M8 threaded housing and compact construction, the sensor is suitable for machinery and equipment where installation space is restricted. It can be integrated into factory automation systems and industrial equipment.
The sensor provides high switching frequency and reliable switching performance for automated production environments. Its robust metal housing supports operation in demanding industrial conditions.
Reliable non-contact metal detection
2 mm sensing range
PNP normally open output
Increased sensing range
Compact M8 design
800 Hz switching frequency
IP67 protection
Robust metal housing
Short-circuit protection
Suitable for factory automation
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling systems
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5318 |
| Part Number | IEK3002BBPKG/OELVER/US-104 |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 x 1 |
| Length | 60 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 800 Hz |
| Switching Current | 100 mA |
| Protection | IP67 |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Application | Industrial Automation |
