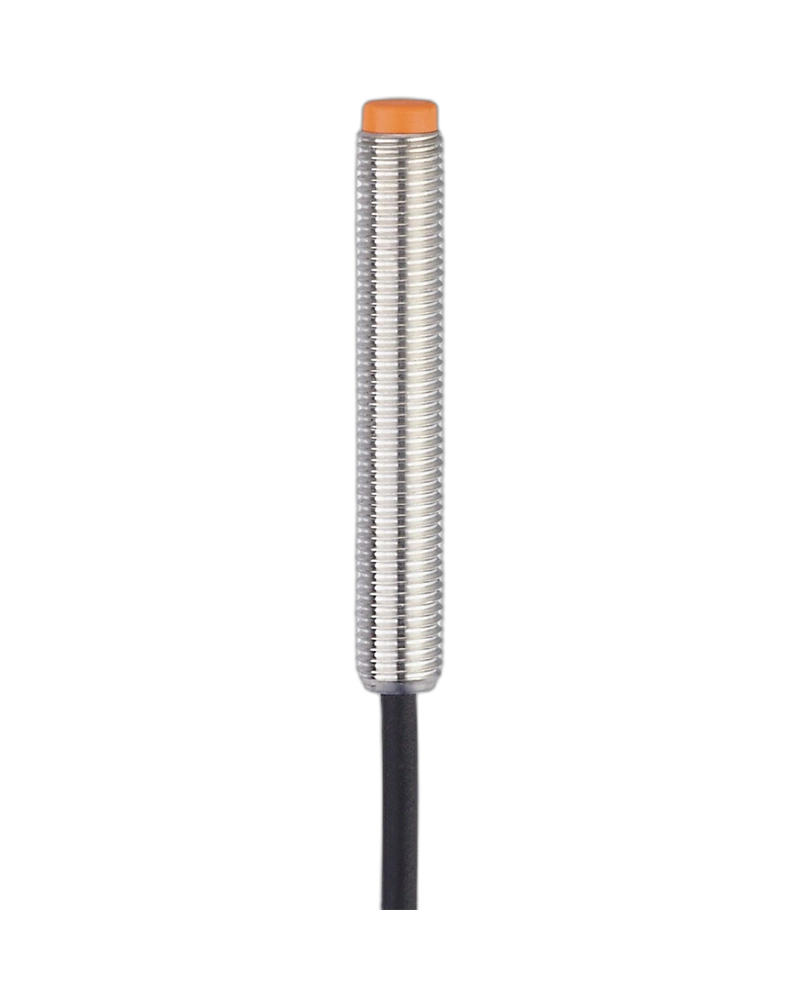

The IE5317 Inductive Sensor provides reliable 4 mm non-contact metal detection for industrial automation and factory equipment. Its increased sensing range, 4-meter PUR cable, and robust M8 design make it suitable for demanding production applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5317 is designed for accurate metal detection in Industrial Automation UAE applications. Its increased sensing range supports dependable object and position detection in automated machinery.
With a 4 mm sensing range, the sensor provides reliable detection for industrial equipment where additional sensing distance is required. Its non-flush design supports flexible machine installation.
The 4-meter PUR cable provides installation flexibility, while the IP67 protection supports dependable operation in industrial environments and Industrial Automation Equipment UAE.
4 mm sensing range
Increased sensing range
PNP normally open output
Non-flush mounting
M8 threaded design
4-meter PUR cable
800 Hz switching frequency
IP67 protection
Short-circuit protection
Reliable factory automation performance
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object detection
Material handling systems
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5317 |
| Part Number | IEA3004-BPKG/4M/PH RT |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 51.5 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 800 Hz |
| Switching Current | 200 mA |
| Cable Length | 4 m |
| Cable Type | PUR |
| Protection Rating | IP67 |
| Housing Material | Brass, white bronze coated |
| Ambient Temperature | -25 to +70 °C |
| Application | Industrial Automation |
