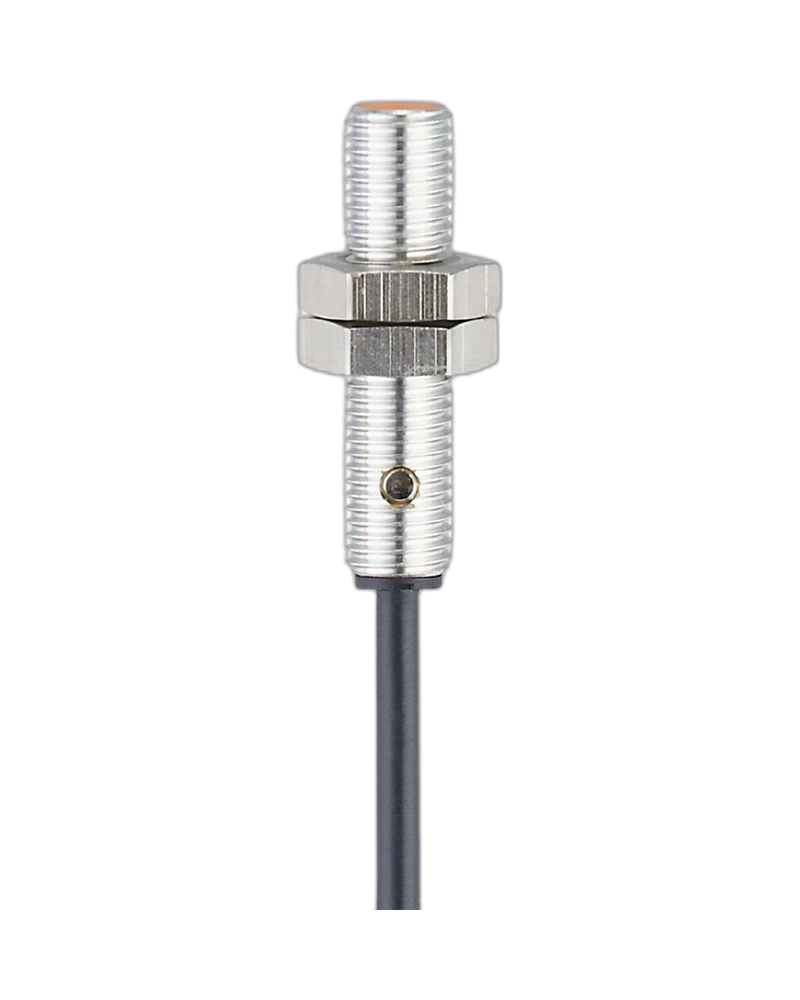

The IE5313 Inductive Sensor provides reliable 2 mm metal detection for industrial automation and factory equipment. Its compact M8 flush-mount design, NPN normally open output, and PUR cable make it suitable for reliable machine sensing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5313 is designed for accurate non-contact metal detection in Industrial Automation UAE applications. It supports reliable object presence and position detection.
Its M8 x 1 housing and 37 mm length make it suitable for compact machine installations. The flush-mount design allows easy integration into industrial equipment.
The sensor provides 800 Hz switching frequency and IP67 protection for reliable operation in factory automation and Industrial Sensors Supplier UAE applications.
2 mm sensing range
NPN normally open output
Flush-mountable design
Compact M8 construction
2-meter PUR cable
800 Hz switching frequency
IP67 protection
Reliable position detection
Easy machine integration
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Packaging machinery
Position detection
Object detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5313 |
| Part Number | IEB3002BANKG/PH |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 37 mm |
| Electrical Design | NPN |
| Output Function | Normally Open |
| Cable Length | 2 m |
| Cable Type | PUR |
| Switching Frequency | 800 Hz |
| Protection Rating | IP67 |
| Number of Wires | 3-wire |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
