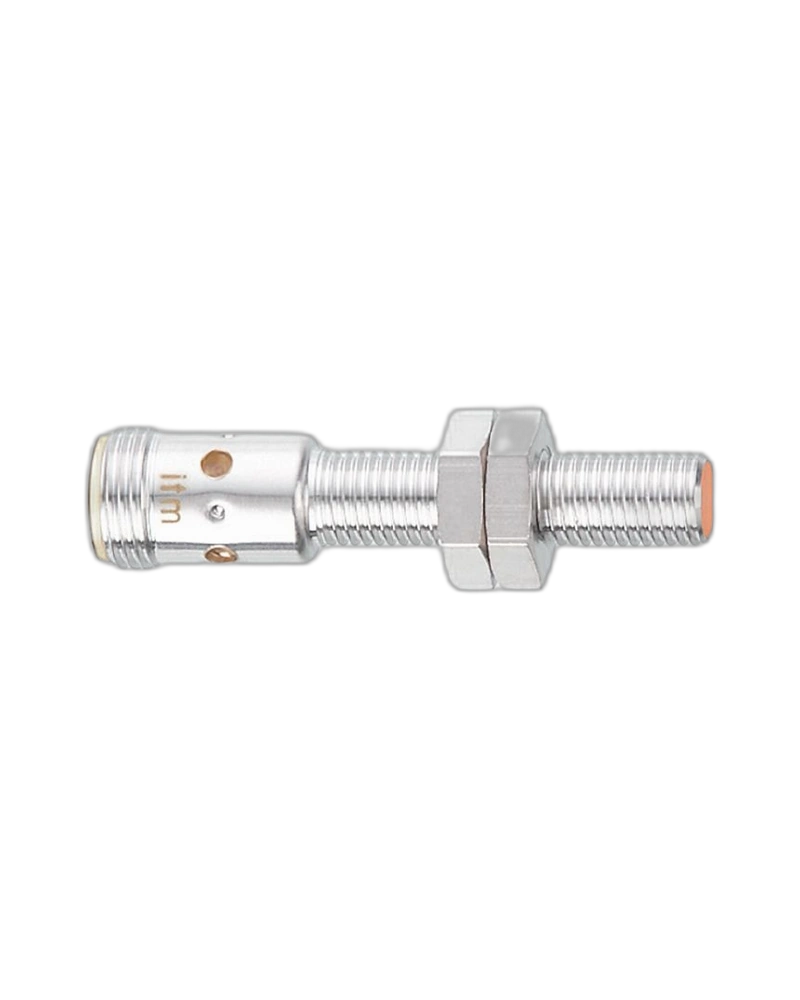

The IE5312 Inductive Sensor provides accurate 2 mm non-contact metal detection for industrial automation, machine tools, and factory equipment. Its flush-mount M8 design and PNP normally open output provide reliable machine sensing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5312 is designed for dependable metal detection in Industrial Automation UAE applications. It helps machines identify metal objects and monitor component positions without physical contact.
The M8 x 1 housing is designed for flush installation, making it suitable for compact machinery and automated equipment where installation space is limited.
The sensor offers a 1000 Hz switching frequency, IP67 protection, and M12 connection for reliable integration with industrial control systems.
2 mm sensing range
PNP normally open output
Flush-mountable design
M8 threaded housing
1000 Hz switching frequency
M12 connector
IP67 protection
Short-circuit protection
Reliable position detection
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position detection
Object presence detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5312 |
| Part Number | IEK3002BBPKG/US-104 |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 62 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1000 Hz |
| Switching Current | 250 mA |
| Connection | M12 Connector |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +70 °C |
| Application | Industrial Automation |
