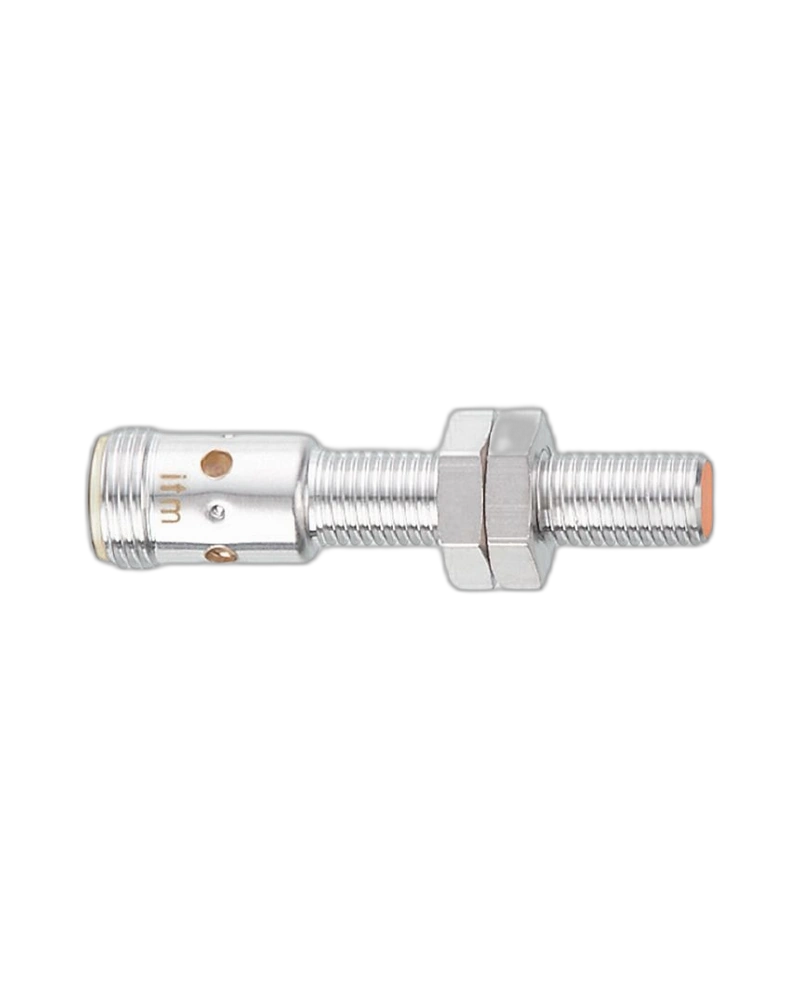

The IE5304 Inductive Sensor provides reliable 2 mm metal detection for industrial automation and machine monitoring. Its stainless-steel V2A housing, flush-mount design, and M12 connector make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5304 is designed for reliable non-contact metal detection in Industrial Automation UAE applications. It supports accurate object and position detection in automated machinery.
The V2A stainless-steel housing provides durability for industrial environments. Its flush-mountable M8 design supports convenient integration into machinery and compact installations.
The sensor provides 800 Hz switching frequency and IP67 protection, making it suitable for Industrial Automation Components UAE, conveyors, machine tools, and assembly equipment.
2 mm sensing range
PNP normally open output
Flush-mountable design
M8 threaded housing
V2A stainless-steel construction
800 Hz switching frequency
M12 connector
IP67 protection
Reliable object detection
Easy automation integration
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position sensing
Object detection
Material handling
Industrial production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5304 |
| Part Number | IEK3002BBPKG/V2A/US-104 |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 60 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 800 Hz |
| Connection | M12 Connector |
| Protection Rating | IP67 |
| Housing Material | V2A Stainless Steel |
| Ambient Temperature | -20 to +70 °C |
| Application | Industrial Automation |
