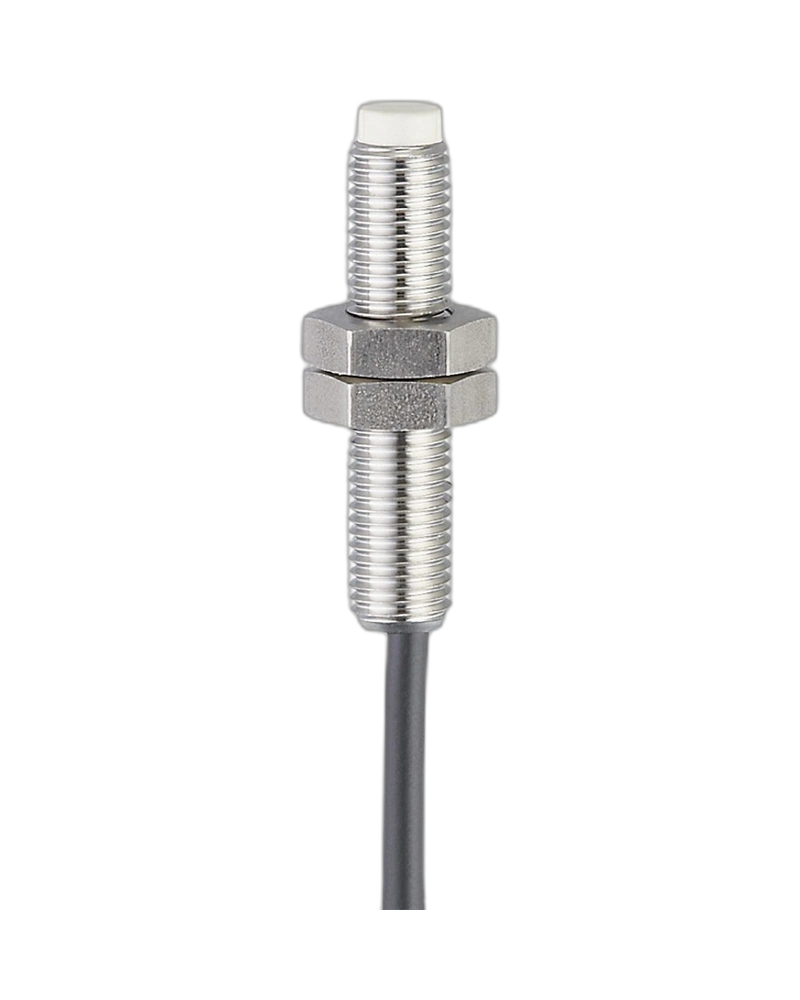

The IE5302 Inductive Sensor provides reliable 2 mm non-contact metal detection for industrial automation and factory equipment. Its stainless-steel housing, 6-meter PVC cable, and high switching frequency make it suitable for demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5302 is designed for accurate metal detection in Industrial Automation Systems in UAE. It supports reliable presence and position detection in automated machinery.
The integrated 6-meter PVC cable provides flexibility when installing the sensor on larger machines and production equipment. Its compact M8 housing supports space-efficient installation.
The V4A stainless-steel housing and IP67 protection make the sensor suitable for Industrial Equipment & Supplies in UAE, conveyors, machine tools, and factory automation.
2 mm sensing range
PNP normally open output
Non-flush mounting
Compact M8 design
6-meter PVC cable
V4A stainless-steel housing
2000 Hz switching frequency
IP67 protection
Reliable position detection
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Packaging machinery
Position detection
Object detection
Material handling systems
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5302 |
| Part Number | IEB3002-BPKG/V4A/6M |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 40 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 2000 Hz |
| Cable Length | 6 m |
| Cable Type | PVC |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
