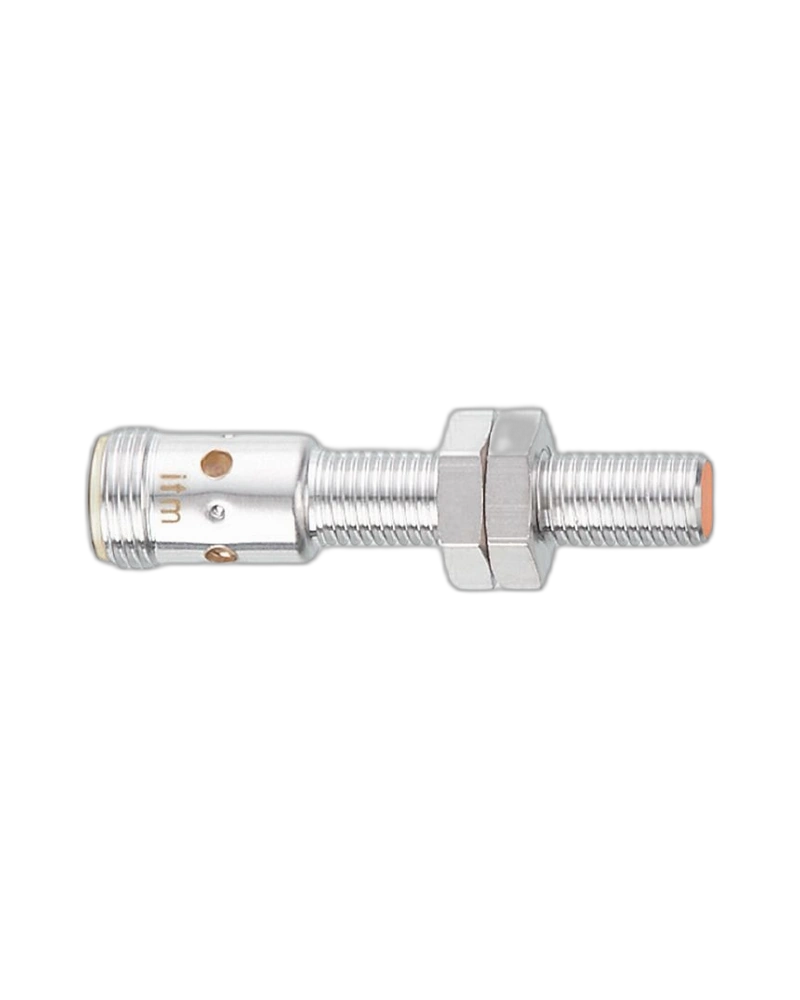

The IE5295 Inductive Sensor provides accurate 2 mm non-contact metal detection for industrial automation, machine tools, and factory equipment. Its stainless-steel housing and high switching frequency support reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5295 is designed for dependable metal detection in Industrial Automation UAE applications. It supports accurate presence and position detection in automated machinery.
Its V4A stainless-steel housing provides durability for industrial environments. The non-flush M8 design is suitable for machinery, conveyors, and production equipment.
With a 2000 Hz switching frequency and IP67 protection, the sensor provides fast and reliable detection for Industrial Automation Solutions in UAE.
2 mm sensing range
PNP normally open output
Non-flush mounting
M8 threaded design
V4A stainless-steel housing
2000 Hz switching frequency
IP67 protection
M12 connector
Reliable position detection
Suitable for factory automation
Factory automation
Machine tools
Conveyor systems
Assembly machinery
Packaging equipment
Position sensing
Object detection
Material handling
Automated production lines
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5295 |
| Part Number | IEB3002-BPKG/V4A/US-104-DPS/RT |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 55 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 2000 Hz |
| Switching Current | 200 mA |
| Connection | M12 Connector |
| Protection Rating | IP67 |
| Housing Material | Stainless Steel 316Ti |
| Ambient Temperature | -25 to +80 °C |
| Application | Industrial Automation |
