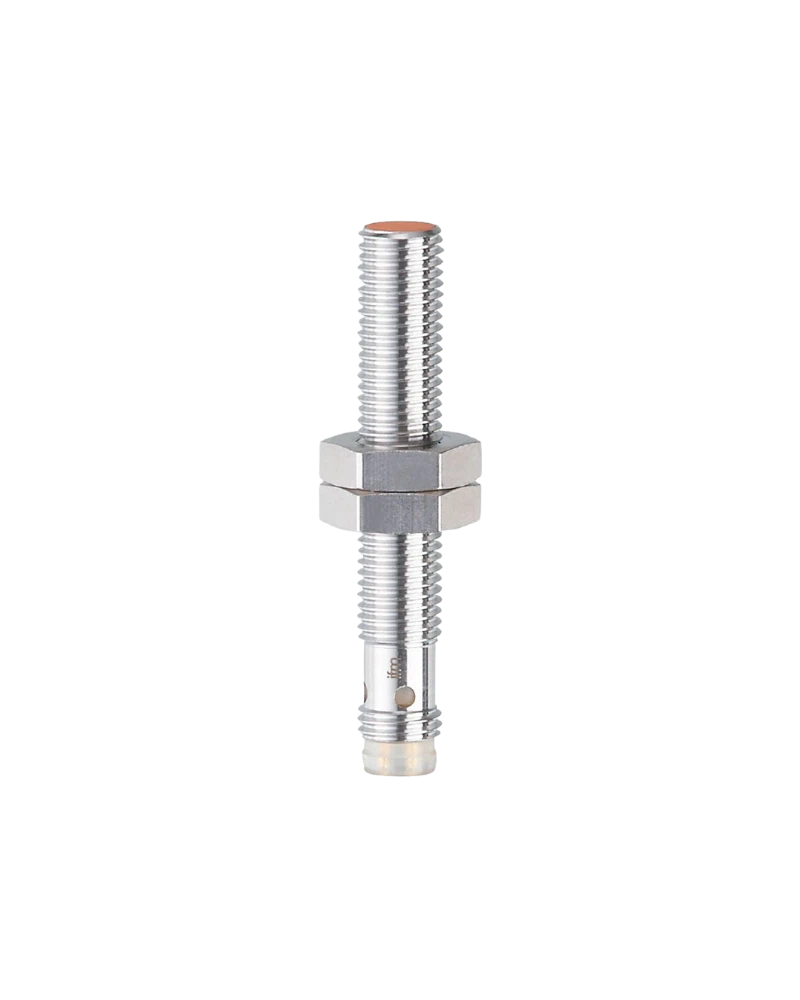

The IE5292 Inductive Sensor provides reliable 2.5 mm metal detection for industrial automation and machine monitoring. Its stainless-steel construction, compact M8 design, and robust performance make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5292 is designed for reliable non-contact metal detection in Industrial Automation Systems in UAE. It helps automated equipment detect metal components accurately during production processes.
Its V4A stainless-steel housing provides durability for demanding industrial applications. The compact M8 design supports installation in machinery and limited spaces.
The sensor provides a 1200 Hz switching frequency and IP65/IP67 protection, making it suitable for Industrial Sensors Supplier UAE applications and factory automation systems.
2.5 mm sensing range
DC PNP output
Normally open output
Compact M8 design
Non-flush mounting
V4A stainless-steel housing
1200 Hz switching frequency
IP65 / IP67 protection
M8 connector
Reliable industrial operation
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Packaging machinery
Position detection
Object detection
Material handling
Industrial production equipment
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5292 |
| Part Number | IEB32.5-BPKG/V4A/AS |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 2.5 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 50 mm |
| Electrical Design | DC PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1200 Hz |
| Switching Current | 200 mA |
| Connection | M8 Connector |
| Protection Rating | IP65 / IP67 |
| Housing Material | Stainless Steel 316L |
| Ambient Temperature | 0 to +80 °C |
| Application | Industrial Automation |
