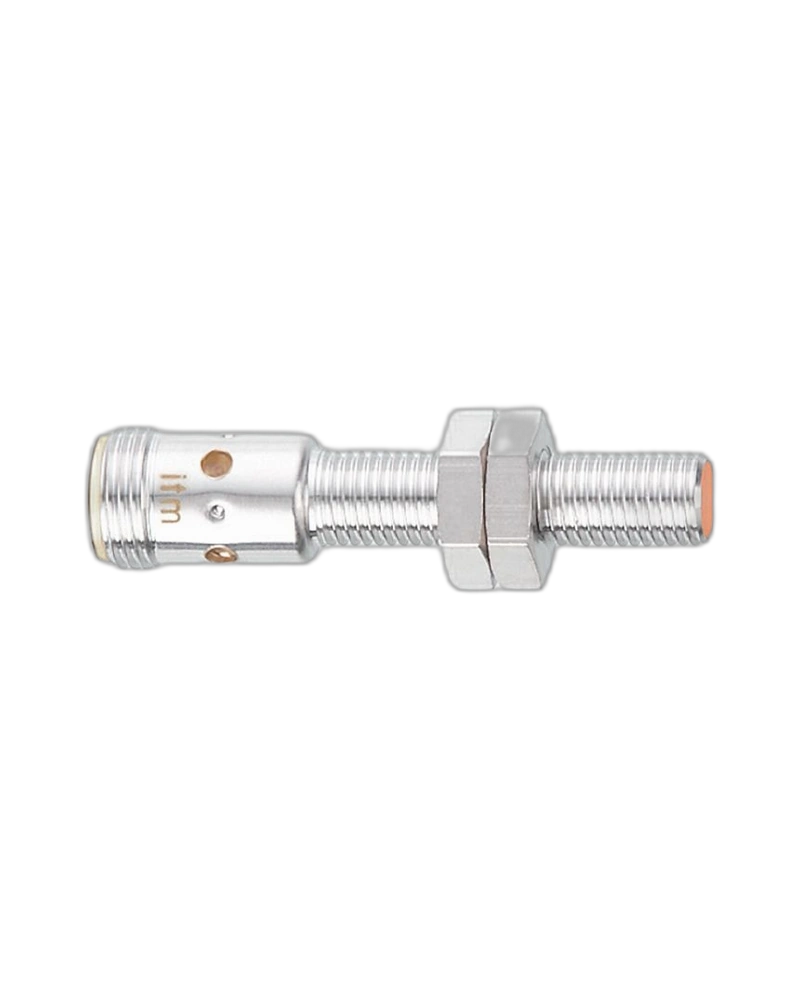

The IE5288 Inductive Sensor provides reliable non-contact metal detection with a 4 mm sensing range. Its compact M8 construction, increased sensing range, and high-speed switching make it suitable for industrial automation and factory equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IE5288 is designed for accurate metal detection in Industrial Automation UAE applications. It supports reliable presence and position detection in automated machinery.
With a 4 mm sensing range, the sensor provides reliable detection where additional sensing distance is required. Its non-flush design makes it suitable for various industrial installations.
The compact M8 housing and M12 connector allow easy integration into conveyors, machine tools, assembly systems, and Industrial Automation Equipment UAE.
4 mm sensing range
PNP normally open output
Increased sensing range
Compact M8 design
Non-flush mounting
300 Hz switching frequency
IP67 protection
M12 connector
Short-circuit protection
Reliable factory automation performance
Factory automation
Conveyor systems
Machine tools
Assembly machinery
Packaging equipment
Position sensing
Object detection
Material handling
Production machinery
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IE5288 |
| Part Number | IEK3004-BPKG/US-104 |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Mounting | Non-Flush Mountable |
| Housing | Threaded M8 |
| Dimensions | M8 x 1 / L = 60 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 300 Hz |
| Switching Current | 100 mA |
| Connection | M12 Connector |
| Protection Rating | IP67 |
| Housing Material | Brass, white bronze coated |
| Ambient Temperature | -25 to +70 °C |
| Application | Industrial Automation |
